Remove Radiator Support - Ar62.30-P-1500-04XG

Model 463

as of model year 2019

The higher-level service information as well as the safety information must be observed.

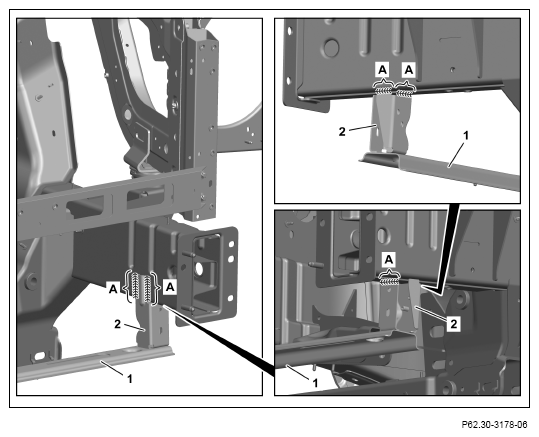

1. Expose inert gas welds on the left and right mounting support (2) and cut off (areas A).
2. Remove radiator support (1) together with mounting supports (2).

   Shown on left side of vehicle

   Courtesy of MERCEDES-BENZ USA

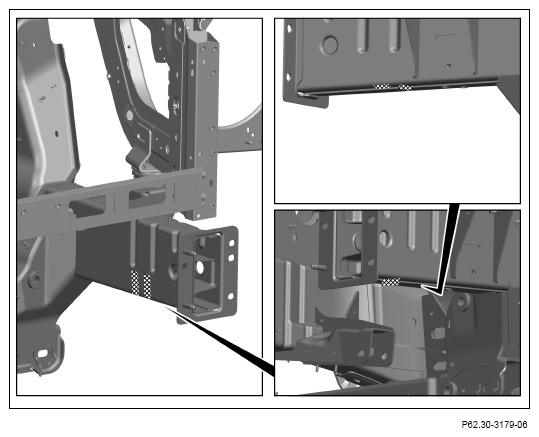

3. Sand down mating surfaces to bare metal in cross-hatched areas.
4. Remove grinding dust.

   Shown on left side of vehicle

Courtesy of MERCEDES-BENZ USA
