Prepare Radiator Support - Ar62.30-P-1500-05XG

Model 463

as of model year 2019

The higher-level service information as well as the safety information must be observed.

1. Grind mating surfaces on radiator support (1) down to bare metal in crosshatched areas.
2. Remove grinding dust.

   Courtesy of MERCEDES-BENZ USA

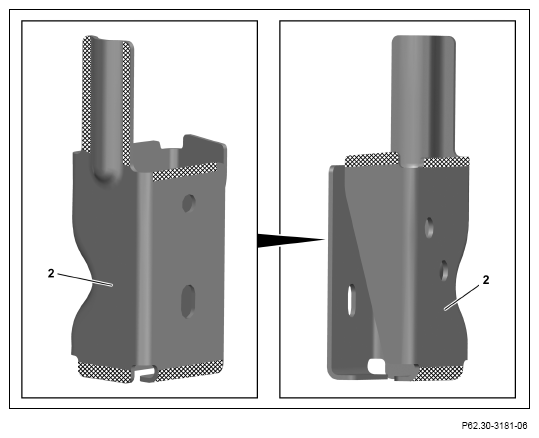

3. Grind mating surfaces on the left and right mounting support (2) down to bare metal in the cross-hatched areas.
4. Remove grinding dust.

   Shown on left side of vehicle

Courtesy of MERCEDES-BENZ USA
