Partially Remove Upper Front Longitudinal Member - Ar62.20-P-1287-01XG

Model 463

as of model year 2019

The following operation steps are shown on the left side of the vehicle. In case of damage on the right side of the vehicle, these steps must be performed analogously.

Additional information can be found in the superordinate service information.

The safety information in the superordinate service information must be observed.

Courtesy of MERCEDES-BENZ USA

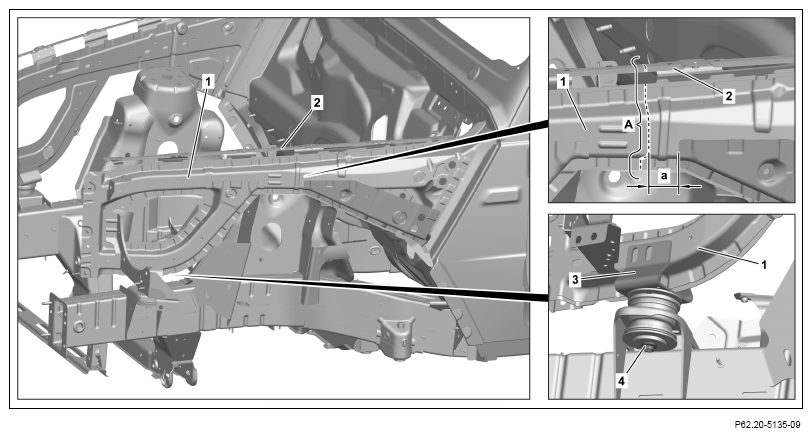

1. Mark separating point on longitudinal member (1) and on angle bracket (2) and cut (area A).

   Dimensions:

   a = approx. 45 mm

   Cut through longitudinal member (1) and angle bracket (2) completely.

2. Unscrew screw (4).
3. Remove longitudinal member (1) with angle bracket (2) and bracket (3).

   Courtesy of MERCEDES-BENZ USA

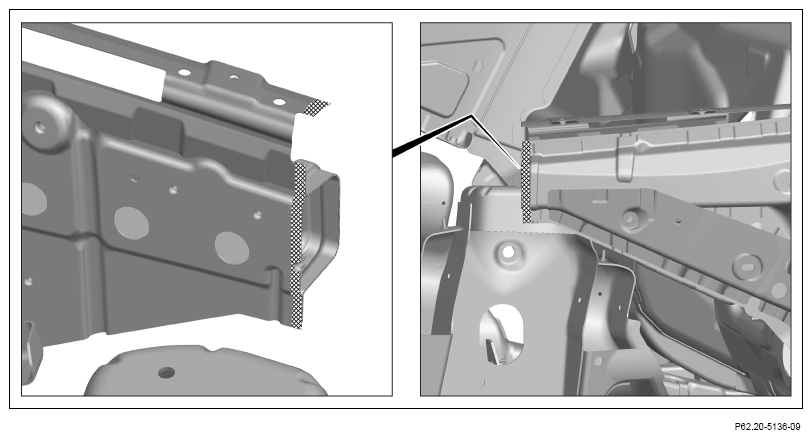

4. Sand down mating surfaces to bare metal in cross-hatched areas.
5. Remove grinding dust and wood shavings.
