Install Radiator Support - Ar62.30-P-1500-03XG
Model 463
as of model year 2019
The higher-level service information as well as the safety information must be observed.

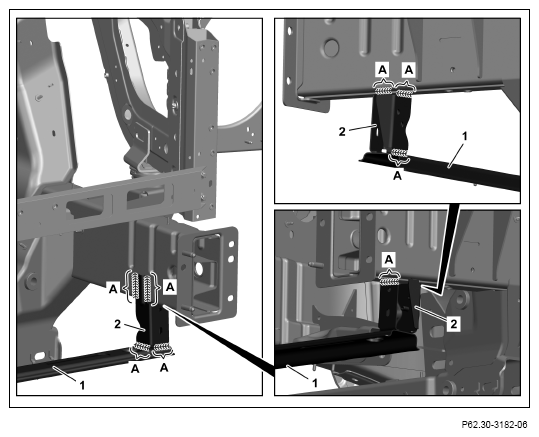

- Install radiator support (1), fit with straighteners, and fix in place.
- Install left and right mounting support (2), fit, and fix in place.
Position mounting supports (2) centrally relative to the radiator support (1) in the longitudinal direction.
- Left and right mounting support (2) and radiator support (1)
(areas A).
Shown on left side of vehicle
