Remove/Install Side Paneling In Rear - AR68.30-P-4780XG
Model 463
as of model year 2019
| Remove/install | |||
| 1 | Remove rear door sill. | AR68.30-P-4100XG | |
| 2 | Fold back rear bench seat. | ||

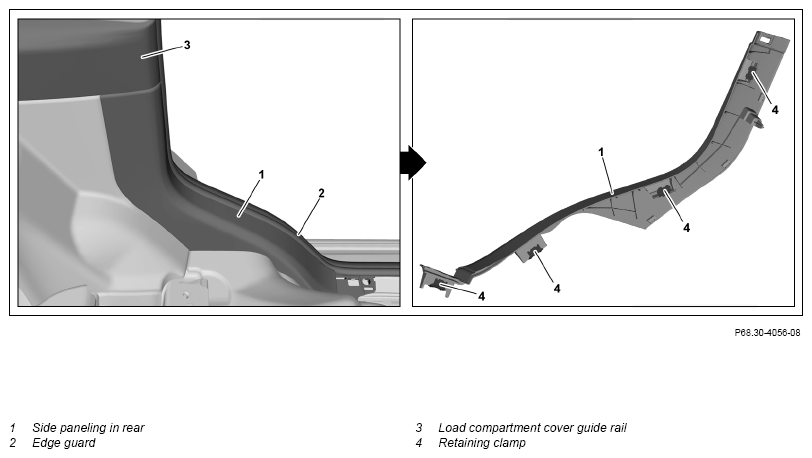

| 3 | Detach edge guard (2) in the area of the side trim in the rear passenger compartment (1). | ||
| 4 | Detach load compartment cover guide rail (3) in the area of the side trim in the rear passenger compartment (1). | ||
| 5 | Unclip side trim in the rear passenger compartment (1) from the retaining clamps (4) starting at the front working toward the rear, guide out of the load compartment cover guide rail (3), and remove. | If the retaining clamps (4) are damaged, ↓ Install new retaining clamps (4). |
|
| 6 | Install in reverse order. |
