Remove/Install Right Cover Below Instrument Panel - AR68.10-P-1520GM

Model 463

up to model year 2013

Courtesy of MERCEDES-BENZ USA

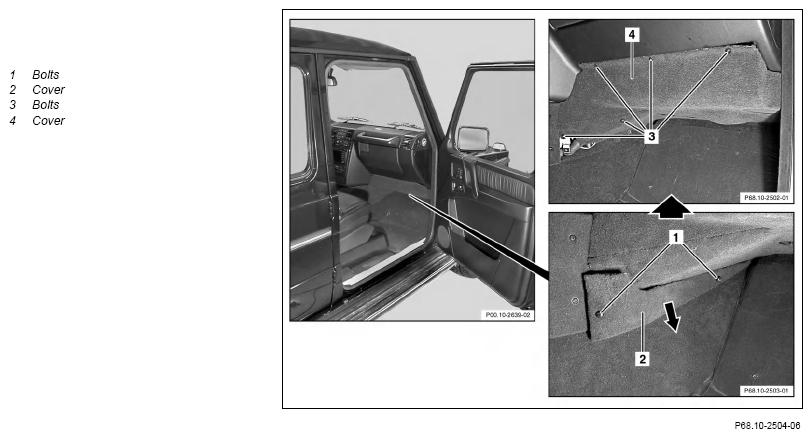

	Remove/install
	Remove bolt (1)
	Take off cover (2)	For this purpose, pull cover (2) downwards in direction of arrow.
	Remove screws (3)
	Remove cover (4)	Ensure cover (4) is correctly seated on air duct, installation problems can otherwise arise.
	Disconnect electrical connector of socket	Only for 12V socket in front passenger footwell
	Remove electrical connector from emergency call speaker FRT RH	Only for code (ET2) TELEAID car telephone emergency call system
	Disconnect electrical connector from ambiance illumination	Only for code (FR1) Ambient lighting
	Install in the reverse order
