Remove/Install Instrument Panel Grab Handle - AR68.70-P-0301GW
Model 463
as of model year 2013 up to model year 2019
/facelift 2012

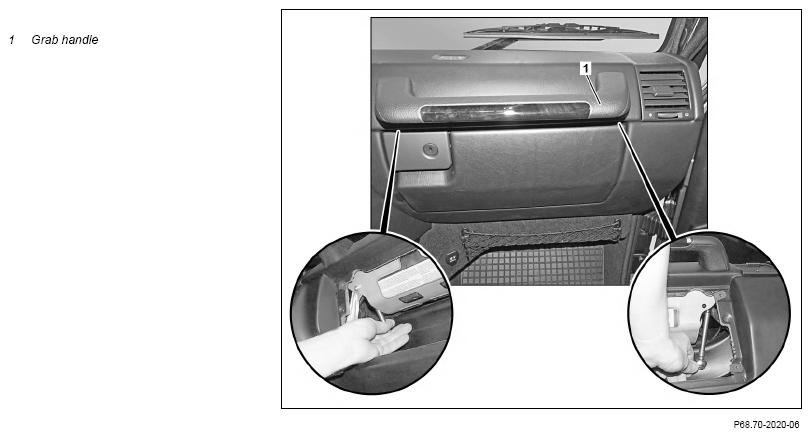

Fig 1: Panel Grab Handle Components Location - Model 463 As Of Model Year 2013 Up To Model Year 2019 /Facelift 2012
| Remove/install | |||
| Remove glove box | Remove/install glove compartment | AR68.10-P-1400GW | |
| Using the opening of the glove box, unscrew both nuts on the left and right | |||
| Pull out grab handle (1) | |||
| Install in the reverse order |
