Remove/Install Paneling On B-Pillar - AR68.30-P-4700GW

Model 463 (except 463.202)

as of model year 2013 up to model year 2019

Courtesy of MERCEDES-BENZ USA

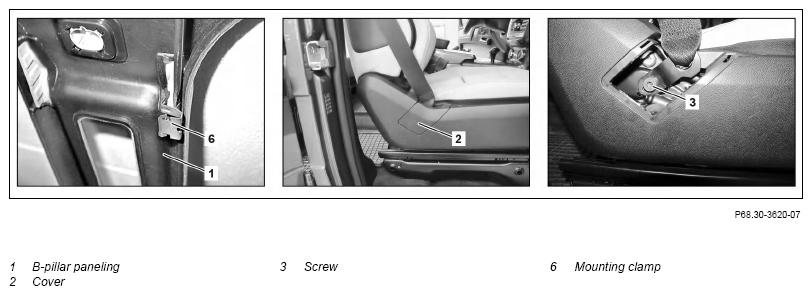

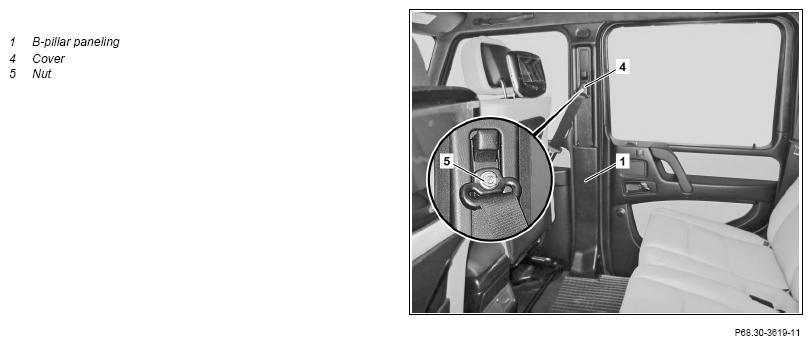

Fig 1: Paneling On B-Pillar Components Location - Model 463 (Except 463.202) As Of Model Year 2013 Up To Model Year 2019

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove cover panel (2) and unscrew screw (3) at seat belt end fitting	Bolt on belt end fitting	*BA91.40-P-1001-01C
2	Remove cover (4) and unscrew nut (5) at seat belt guide bracket	Bolt/nut on front seat belt guide bracket	*BA91.40-P-1002-01C
3	Pry off mounting clamps (6) of B-pillar trim (1) from door fold	Remove mounting clamps (6) from B-pillar trim (1) and insert in door fold, then attach B-pillar trim (1).
4	Remove B-pillar trim (1)	Push roof lining over B-pillar trim (1) upwards and remove B-pillar trim (1) starting at top from B-pillar.
5	Remove seat belt strap from B-pillar trim (1)
6	Disconnect electrical connector at switch of rear bench seat heating	Only for vehicles with code (H11) Rear bench seat heating
7	Install in the reverse order
