Remove/Install Floor Covering In Rear Passenger Compartment - AR68.80-P-0003XG

Model 463

as of model year 2019

Courtesy of MERCEDES-BENZ USA

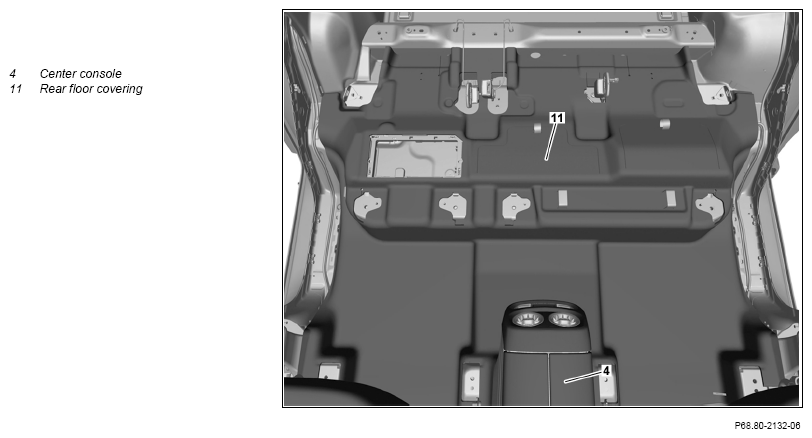

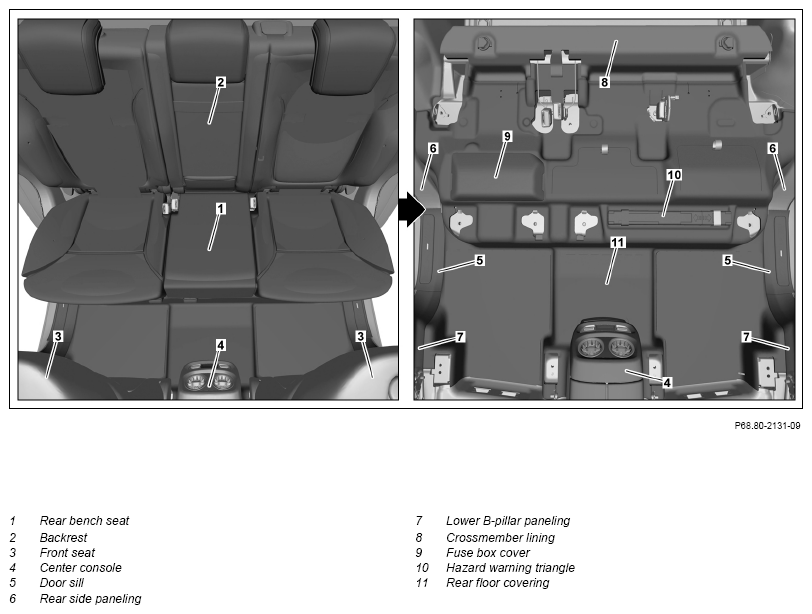

Fig 1: Rear Passenger Compartment Floor Covering Components Location - Model 463 As Of Model Year 2019

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove floor mats.
2	Remove rear bench seat (1).		AR91.12-P-1000XG
3	Remove rear seat backrest (2).		AR91.12-P-1620XG
4	Release front seats (3) and tilt forwards.	Do not disconnect electrical connector.	AR91.10-P-1000XG
5	Release center console (4).		AR68.20-P-2000XG
6	Remove door sills in rear (5).		AR68.30-P-4100XG
7	Remove rear side trim (6).		AR68.30-P-4780XG
8	Remove lower B-pillar trim (7).		AR68.30-P-4704XG
9	Remove crossmember lining (8).
10	Remove cover (9) of fuse box.
11	Remove warning triangle/vehicle tool kit (10).
12	Remove rear floor covering (11).
13	Install in reverse order.
