Remove/Install Ashtray Housing In Front Center Console - AR68.20-P-2400GW
Model 463
as of model year 2013 up to model year 2019
/facelift 2012

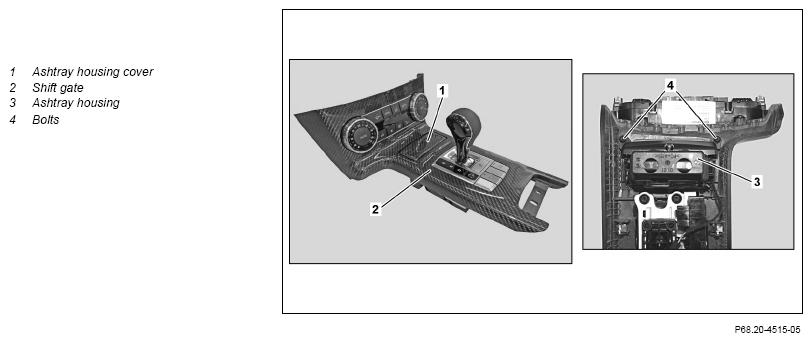

Fig 1: Ashtray Housing In Front Center Console Components Location - Model 463 As Of Model Year 2013 Up To Model Year 2019 /Facelift 2012
| Remove/install | |||
| 1 | Remove shift gate (2) | AR68.20-P-2000GW | |
| 2 | Remove bolts (4) | ||
| 3 | Remove ashtray housing (3) from shift gate (2) | ||
| 4 | Install in the reverse order |
