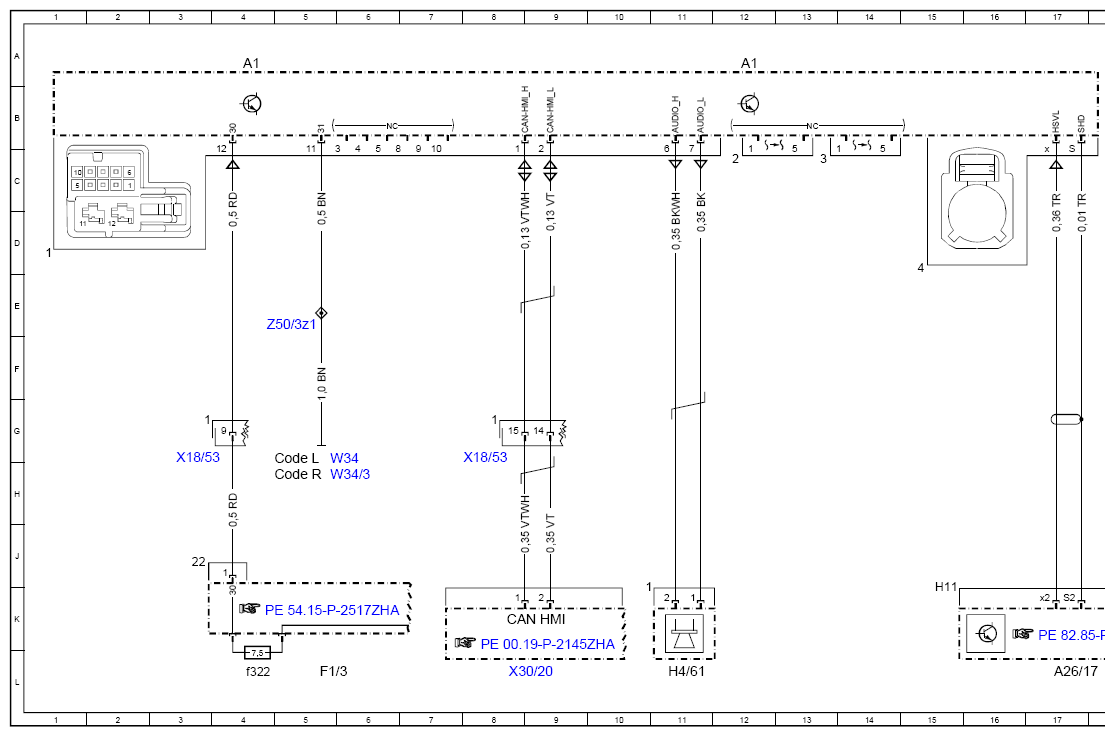

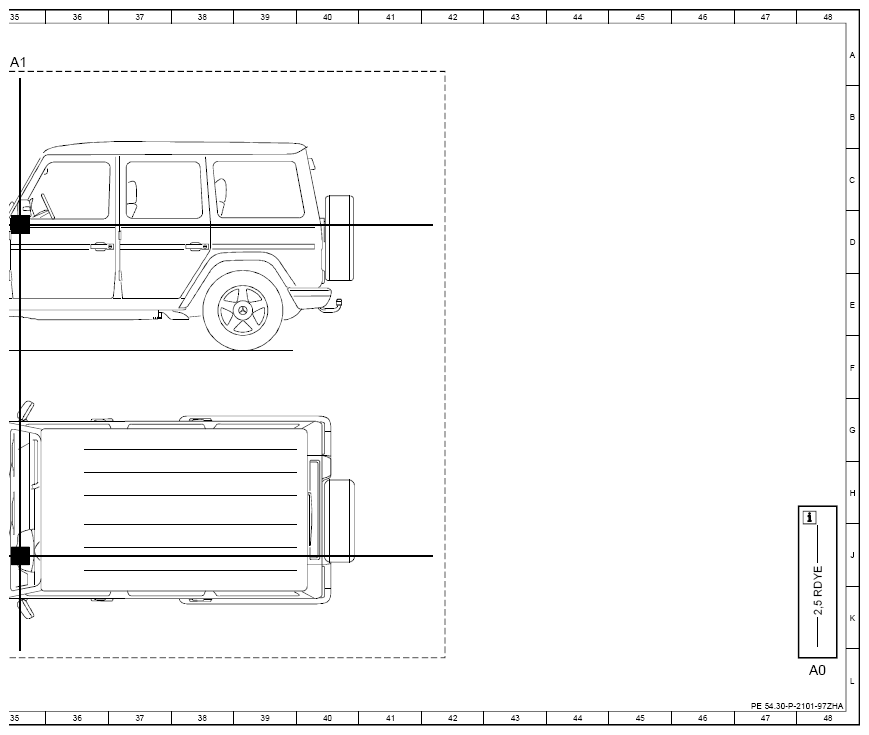

Wiring Diagram For Instrument Cluster (IC) Control Unit - PE54.30-P-2101-97ZHA
Model 463 (except 463.342) as of model year 2019 Control unit A1
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 48L |

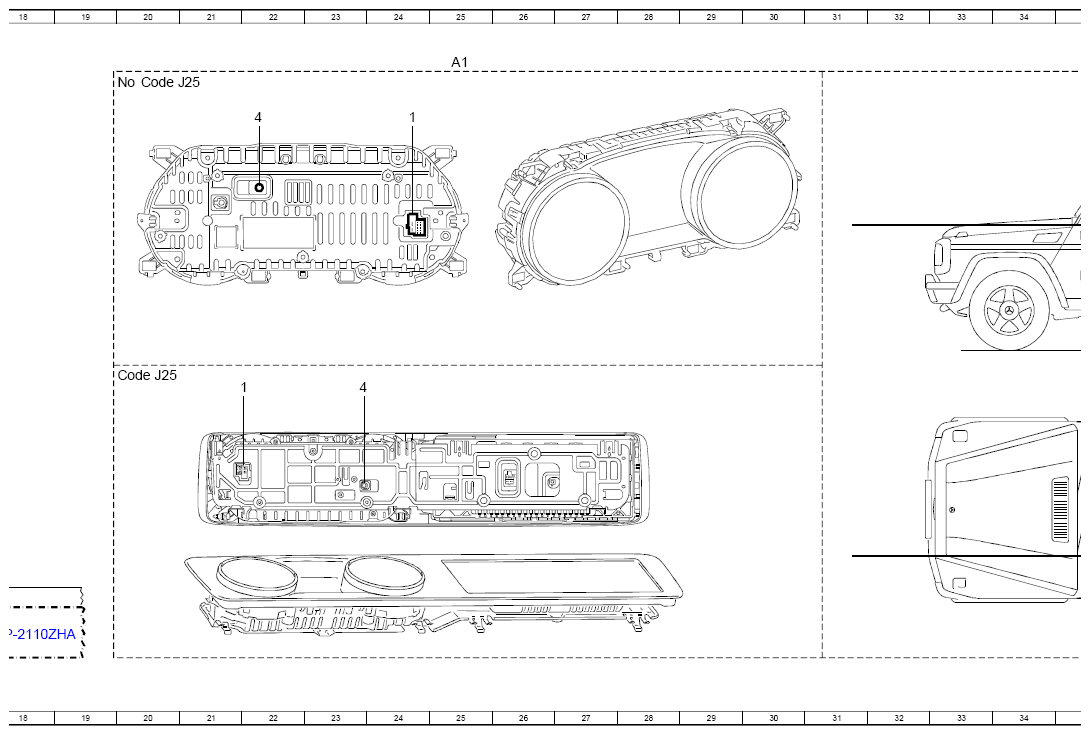

| A1 | Instrument cluster | 4A |
| A1 | Instrument cluster | 12A |
| A1 | Instrument cluster | 25A |
| A1 | Instrument cluster | 35A |
| A26/17 | Head unit | 17L |
| CAN HMI | User interface CAN | 8K |
| Code J25 | FULL DIGITAL DISPLAY INSTRUMENT CLUSTER | 20F |
| Code J25 | FULL DIGITAL DISPLAY INSTRUMENT CLUSTER | 20B |
| Code L | LEFT-HAND DRIVE | 5H |
| Code R | RIGHT-HAND DRIVE | 5H |
| F1/3 | Right A-pillar fuse box | 5L |
| F1/3f322 | Fuse 322 | 4L |
| H4/61 | Instrument cluster speaker | 11L |
| W34 | Left footwell ground point | 5H |
| W34/3 | Right footwell ground point | 5H |
| X18/53 | Driver side cockpit/frame floor assembly electrical connector | 3H |
| X18/53 | Driver side cockpit/frame floor assembly electrical connector | 8H |
| X30/20 | User interface CAN (CAN HMI) potential distributor | 8L |
| Z50/3z1 | Circuit 31 connector sleeve | 5E |
