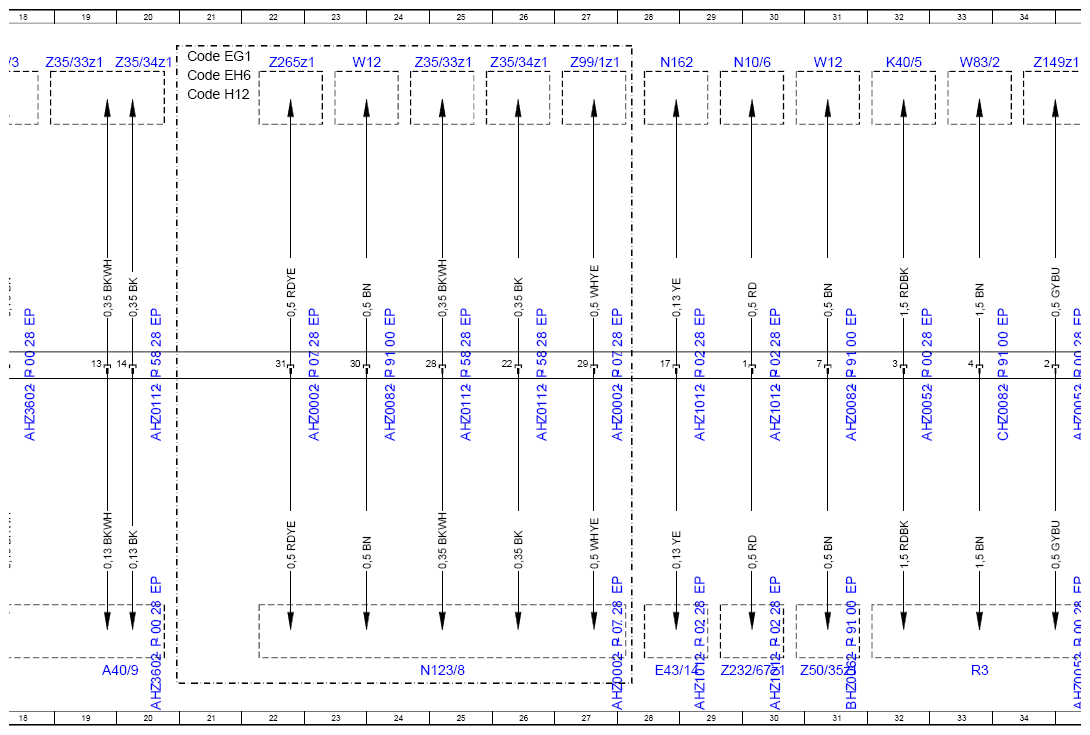

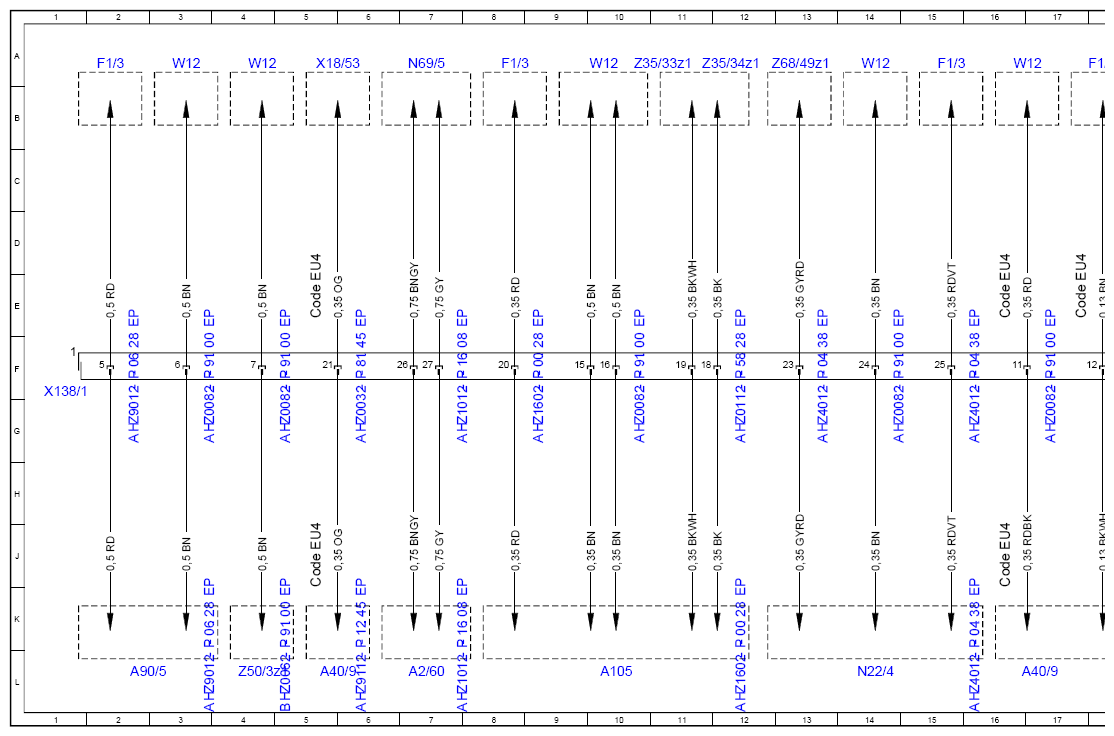

Connector Separation Point Wiring Diagram - PE54.18-P-2300-97ZHE
Model 463 (except 463.342) as of model year 2019 X138/1
| Code: | Designation: | Position: |
|---|---|---|

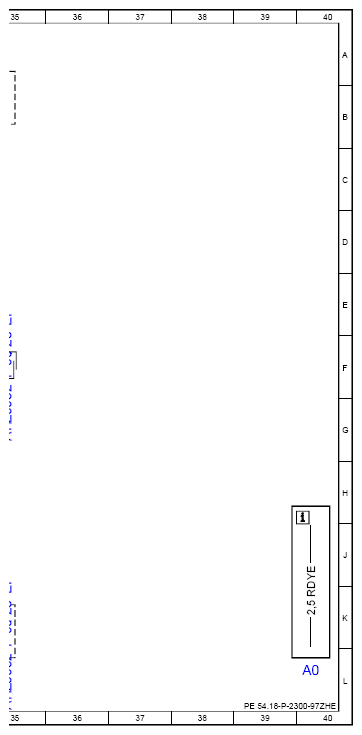

| A0 | Use of wiring diagrams | 40L |
| A105 | Touchpad | 10L |
| A2/60 | Center console KEYLESS-GO antenna | 7L |
| A40/9 | Audio/COMAND control panel | 5L |
| A40/9 | Audio/COMAND control panel | 17L |
| A40/9 | Audio/COMAND control panel | 19L |
| A90/5 | Multimedia connection unit | 2L |
| Code EG1 | Car telephony | 21A |
| Code EH6 | Multifunction telephony | 21A |
| Code EU4 | COMAND Online | 5E |
| Code EU4 | COMAND Online | 5J |
| Code EU4 | COMAND Online | 16J |
| Code EU4 | COMAND Online | 16E |
| Code EU4 | COMAND Online | 17E |
| Code H12 | Stationary heater | 21B |
| E43/14 | Left front center console ambiance illumination | 28L |
| F1/3 | Right A-pillar fuse box | 2A |
| F1/3 | Right A-pillar fuse box | 8A |
| F1/3 | Right A-pillar fuse box | 15A |
| F1/3 | Right A-pillar fuse box | 18A |
| K40/5 | Rear fuse and relay module | 32A |
| N10/6 | Front SAM control unit | 30A |
| N123/8 | Mobile phone cradle control unit | 25L |
| N162 | Ambiance illumination control unit | 28A |
| N22/4 | Rear AC control unit | 14L |
| N69/5 | KEYLESS-GO control unit | 7A |
| R3 | Front cigarette lighter with ashtray illumination | 33L |
| W12 | Ground point (center console) | 3A |
| W12 | Ground point (center console) | 4A |
| W12 | Ground point (center console) | 10A |
| W12 | Ground point (center console) | 14A |
| W12 | Ground point (center console) | 23A |
| W12 | Ground point (center console) | 31A |
| W12 | Ground point (center console) | 16A |
| W83/2 | Lower right center tunnel ground point | 33A |
| X138/1 | Front center console electrical connector | 1F |
| X18/53 | Driver side cockpit/frame floor assembly electrical connector | 5A |
| Z149z1 | Voltage supply connector sleeve | 34A |
| Z232/67z1 | Voltage supply connector sleeve | 29L |
| Z265z1 | Terminal 30t connector sleeve | 22A |
| Z35/33z1 | Head unit CAN (high) connector sleeve | 10A |
| Z35/33z1 | Head unit CAN (high) connector sleeve | 19A |
| Z35/33z1 | Head unit CAN (high) connector sleeve | 24A |
| Z35/34z1 | Head unit CAN (low) connector sleeve | 12A |
| Z35/34z1 | Head unit CAN (low) connector sleeve | 20A |
| Z35/34z1 | Head unit CAN (low) connector sleeve | 26A |
| Z50/35z1 | Circuit 31 connector sleeve | 31L |
| Z50/3z1 | Circuit 31 connector sleeve | 4L |
| Z68/49z1 | LIN B8-3 connector sleeve | 13A |
| Z99/1z1 | Wake-up signal connector sleeve | 27A |
