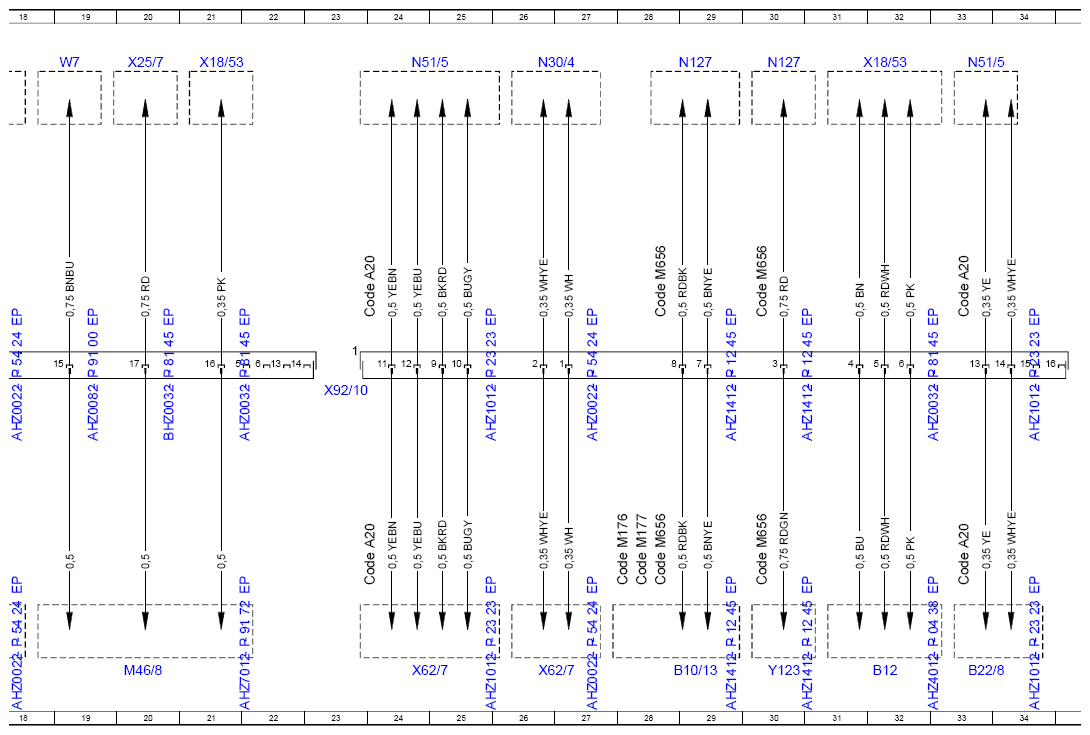

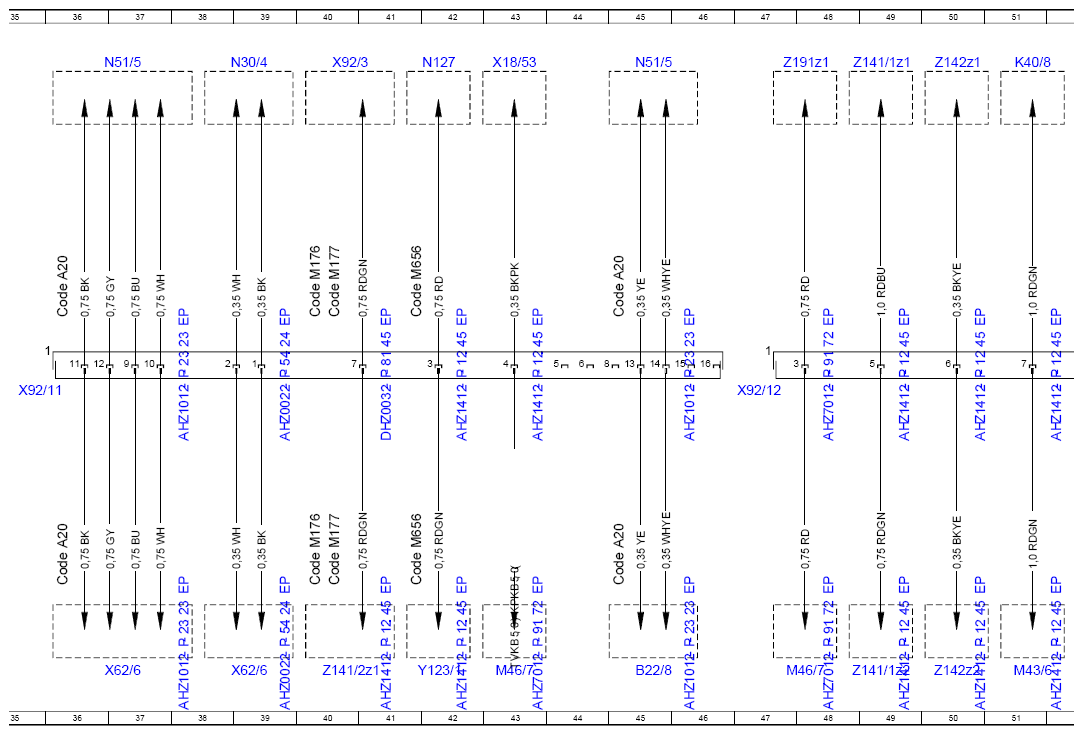

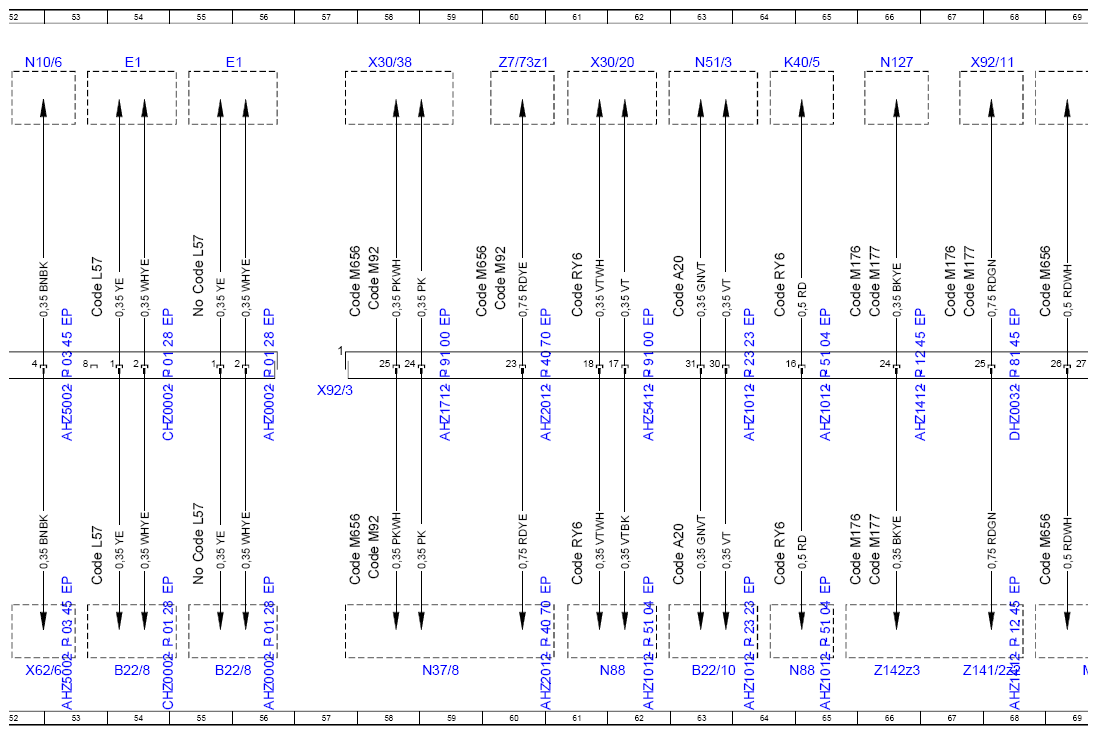

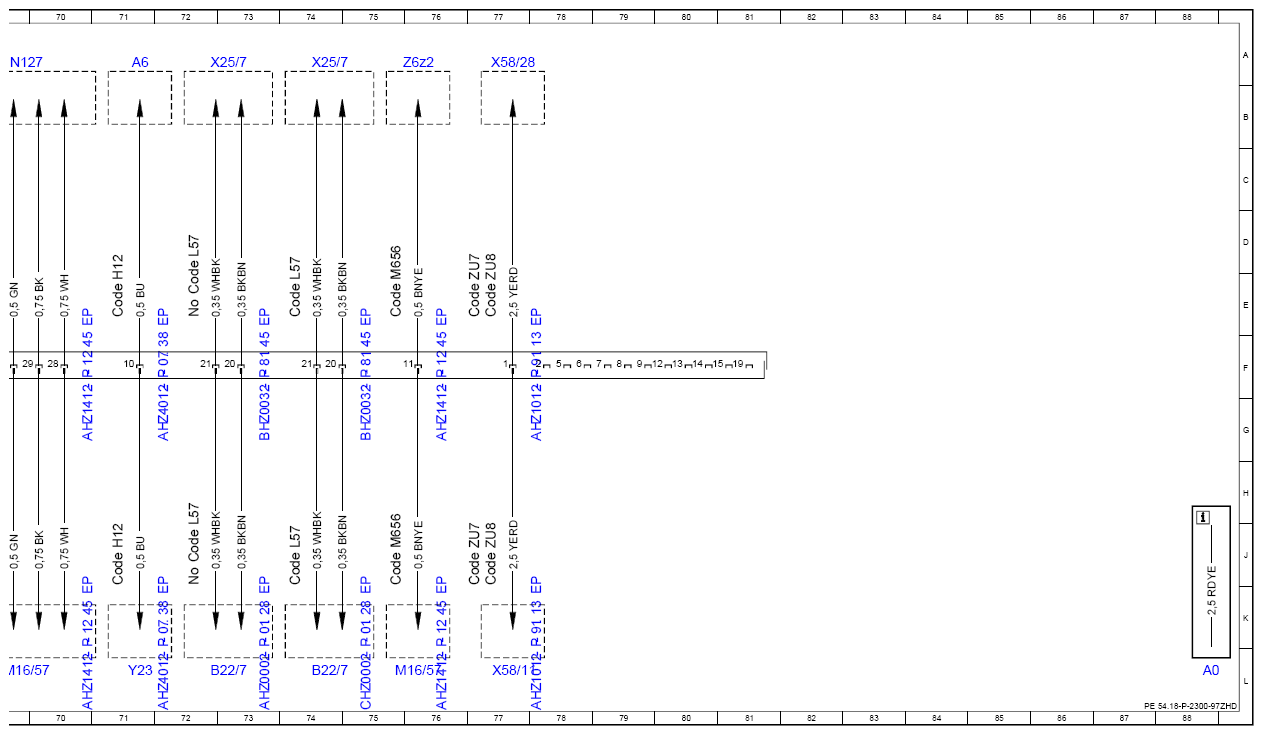

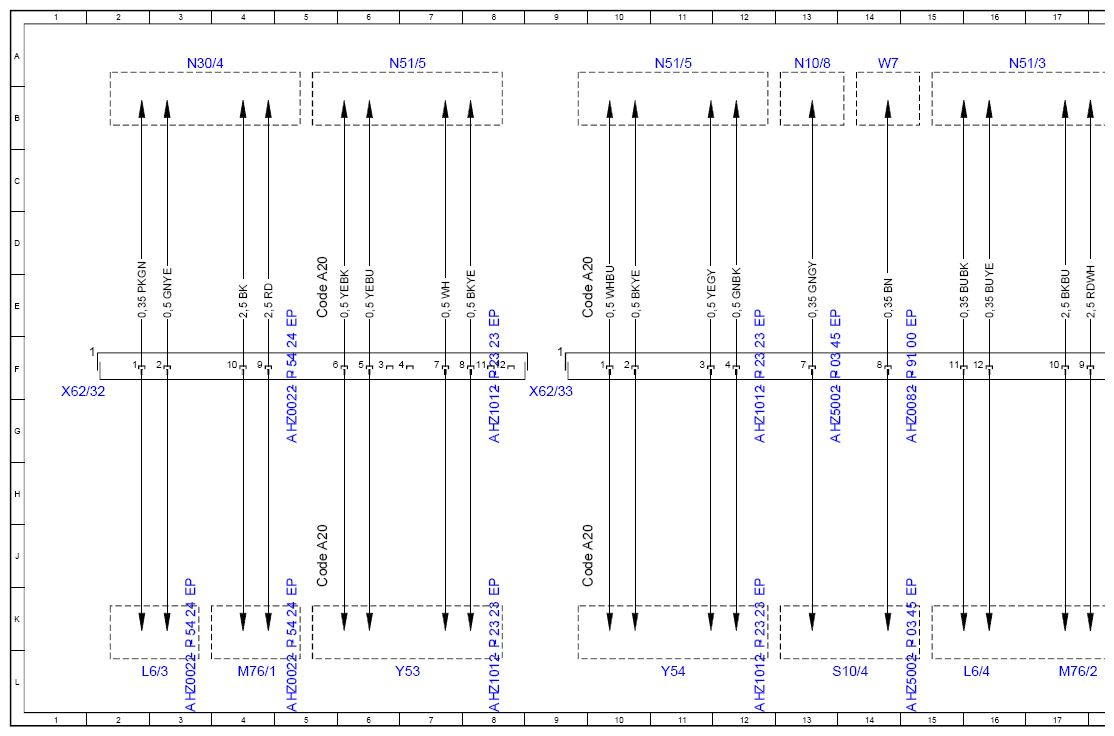

Connector Separation Point Wiring Diagram - PE54.18-P-2300-97ZHD
Model 463 (except 463.342) as of model year 2019 X62/32, X62/33, X92/10, X92/11, X92/12, X92/3
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 88L |
| A6 | Stationary heater unit | 71A |
| B10/13 | Low-temperature circuit temperature sensor | 29L |
| B12 | Refrigerant pressure sensor | 32L |
| B22/10 | Right rear level sensor | 63L |
| B22/7 | Left rear level sensor | 73L |
| B22/7 | Left rear level sensor | 74L |
| B22/8 | Left front level sensor | 33L |
| B22/8 | Left front level sensor | 45L |
| B22/8 | Left front level sensor | 55L |
| B22/8 | Left front level sensor | 54L |
| Code A20 | Adjustment damping | 5J |
| Code A20 | Adjustment damping | 10J |
| Code A20 | Adjustment damping | 24J |
| Code A20 | Adjustment damping | 33J |
| Code A20 | Adjustment damping | 36J |
| Code A20 | Adjustment damping | 5E |
| Code A20 | Adjustment damping | 10E |
| Code A20 | Adjustment damping | 24E |
| Code A20 | Adjustment damping | 33E |
| Code A20 | Adjustment damping | 36E |
| Code A20 | Adjustment damping | 45J |
| Code A20 | Adjustment damping | 63J |
| Code A20 | Adjustment damping | 45E |
| Code A20 | Adjustment damping | 63E |
| Code H12 | Stationary heater | 71J |
| Code H12 | Stationary heater | 71E |
| Code L57 | IHC Light | 53J |
| Code L57 | IHC Light | 55J |
| Code L57 | IHC Light | 72J |
| Code L57 | IHC Light | 74J |
| Code L57 | IHC Light | 53E |
| Code L57 | IHC Light | 55E |
| Code L57 | IHC Light | 74E |
| Code L57 | IHC Light | 72E |
| Code M176 | V8-SPARK-IGNITION ENGINE M176 | 28J |
| Code M176 | V8-SPARK-IGNITION ENGINE M176 | 40J |
| Code M176 | V8-SPARK-IGNITION ENGINE M176 | 40E |
| Code M176 | V8-SPARK-IGNITION ENGINE M176 | 66J |
| Code M176 | V8-SPARK-IGNITION ENGINE M176 | 66E |
| Code M176 | V8-SPARK-IGNITION ENGINE M176 | 67E |
| Code M177 | V8 spark-ignition engine M177 - AMG | 28J |
| Code M177 | V8 spark-ignition engine M177 - AMG | 40J |
| Code M177 | V8 spark-ignition engine M177 - AMG | 40E |
| Code M177 | V8 spark-ignition engine M177 - AMG | 66J |
| Code M177 | V8 spark-ignition engine M177 - AMG | 66E |
| Code M177 | V8 spark-ignition engine M177 - AMG | 67E |
| Code M656 | 6-CYLINDER INLINE DIESEL ENGINE 0M656 | 30J |
| Code M656 | 6-CYLINDER INLINE DIESEL ENGINE 0M656 | 28J |
| Code M656 | 6-CYLINDER INLINE DIESEL ENGINE 0M656 | 28E |
| Code M656 | 6-CYLINDER INLINE DIESEL ENGINE 0M656 | 30E |
| Code M656 | 6-CYLINDER INLINE DIESEL ENGINE 0M656 | 42J |
| Code M656 | 6-CYLINDER INLINE DIESEL ENGINE 0M656 | 58J |
| Code M656 | 6-CYLINDER INLINE DIESEL ENGINE 0M656 | 69J |
| Code M656 | 6-CYLINDER INLINE DIESEL ENGINE 0M656 | 75J |
| Code M656 | 6-CYLINDER INLINE DIESEL ENGINE 0M656 | 42E |
| Code M656 | 6-CYLINDER INLINE DIESEL ENGINE 0M656 | 58E |
| Code M656 | 6-CYLINDER INLINE DIESEL ENGINE 0M656 | 60E |
| Code M656 | 6-CYLINDER INLINE DIESEL ENGINE 0M656 | 75E |
| Code M656 | 6-CYLINDER INLINE DIESEL ENGINE 0M656 | 69E |
| Code M92 | Exhaust treatment with EUR06 technology | 58J |
| Code M92 | Exhaust treatment with EUR06 technology | 58E |
| Code M92 | Exhaust treatment with EUR06 technology | 60E |
| Code RY6 | Tire pressure monitor | 64J |
| Code RY6 | Tire pressure monitor | 61J |
| Code RY6 | Tire pressure monitor | 64E |
| Code RY6 | Tire pressure monitor | 61E |
| Code ZU7 | Canada national version | 77J |
| Code ZU7 | Canada national version | 77E |
| Code ZU8 | USA national version | 77J |
| Code ZU8 | USA national version | 77E |
| E1 | Left front lamp unit | 54A |
| E1 | Left front lamp unit | 55A |
| K40/5 | Rear fuse and relay module | 64A |
| K40/8 | Engine fuse and relay module | 51A |
| L6/3 | Left rear axle RPM sensor | 2L |
| L6/4 | Right rear axle RPM sensor | 16L |
| M16/57 | Exhaust flap controller | 69L |
| M16/57 | Exhaust flap controller | 76L |
| M43/6 | Low-temperature circuit circulation pump 1 | 51L |
| M46/7 | Front axle differential lock actuator | 43L |
| M46/7 | Front axle differential lock actuator | 47L |
| M46/8 | Rear axle differential lock actuator | 20L |
| M76/1 | Left electric parking brake actuator motor | 4L |
| M76/2 | Right electric parking brake actuator motor | 17L |
| N10/6 | Front SAM control unit | 52A |
| N10/8 | Rear SAM control unit | 13A |
| N127 | Drivetrain control unit | 29A |
| N127 | Drivetrain control unit | 30A |
| N127 | Drivetrain control unit | 66A |
| N127 | Drivetrain control unit | 42A |
| N127 | Drivetrain control unit | 69A |
| N30/4 | Electronic Stability Program control unit | 3A |
| N30/4 | Electronic Stability Program control unit | 26A |
| N30/4 | Electronic Stability Program control unit | 39A |
| N37/8 | NOx sensor control unit downstream of SCR catalytic converter | 59L |
| N51/3 | AIR BODY CONTROL control unit | 16A |
| N51/3 | AIR BODY CONTROL control unit | 63A |
| N51/5 | Adaptive damping system control unit | 6A |
| N51/5 | Adaptive damping system control unit | 11A |
| N51/5 | Adaptive damping system control unit | 24A |
| N51/5 | Adaptive damping system control unit | 33A |
| N51/5 | Adaptive damping system control unit | 37A |
| N51/5 | Adaptive damping system control unit | 45A |
| N88 | Tire pressure monitor control unit | 65L |
| N88 | Tire pressure monitor control unit | 61L |
| S10/4 | Right rear brake wear sensor | 14L |
| W7 | Right wheel arch rear-end door ground point | 14A |
| W7 | Right wheel arch rear-end door ground point | 19A |
| X18/53 | Driver side cockpit/frame floor assembly electrical connector | 21A |
| X18/53 | Driver side cockpit/frame floor assembly electrical connector | 32A |
| X18/53 | Driver side cockpit/frame floor assembly electrical connector | 43A |
| X25/7 | Engine compartment/frame floor assembly electrical connector | 20A |
| X25/7 | Engine compartment/frame floor assembly electrical connector | 73A |
| X25/7 | Engine compartment/frame floor assembly electrical connector | 74A |
| X30/20 | User interface CAN (CAN HMI) potential distributor | 61A |
| X30/38 | Drive train sensor CAN (CAN I) potential distributor | 58A |
| X58/11 | Trailer socket | 77L |
| X58/28 | Electronic brake system electrical connector | 77A |
| X62/32 | Rear axle electrical connector, left distributor | 1F |
| X62/33 | Rear axle electrical connector, right distributor | 9F |
| X62/6 | Front axle electrical connector, right distributor | 39L |
| X62/6 | Front axle electrical connector, right distributor | 37L |
| X62/6 | Front axle electrical connector, right distributor | 52L |
| X62/7 | Front axle electrical connector, left distributor | 26L |
| X62/7 | Front axle electrical connector, left distributor | 24L |
| X92/10 | Left front vehicle interior/frame electrical connector | 23F |
| X92/11 | Right front interior module/frame electrical connector | 35F |
| X92/11 | Right front interior module/frame electrical connector | 67A |
| X92/12 | Left front engine compartment/frame electrical connector | 47F |
| X92/3 | Vehicle frame electrical connector | 40A |
| X92/3 | Vehicle frame electrical connector | 57F |
| Y123 | Left active engine mount | 30L |
| Y123/1 | Right active engine mount | 42L |
| Y23 | Stationary heater fuel pump | 71L |
| Y53 | Left rear axle damping valve unit | 7L |
| Y54 | Right rear axle damping valve unit | 11L |
| Z141/1z1 | Circuit 87C connector sleeve | 49A |
| Z141/1z2 | Circuit 87C connector sleeve | 49L |
| Z141/2z1 | Circuit 87C connector sleeve | 40L |
| Z141/2z2 | Circuit 87C connector sleeve | 67L |
| Z142z1 | LIN C3 connector sleeve | 50A |
| Z142z2 | LIN C3 connector sleeve | 50L |
| Z142z3 | LIN C3 connector sleeve | 66L |
| Z191z1 | Circuit 87C connector sleeve | 47A |
| Z6z2 | Circuit 31 connector sleeve | 76A |
| Z7/73z1 | Circuit 87M connector sleeve | 60A |
