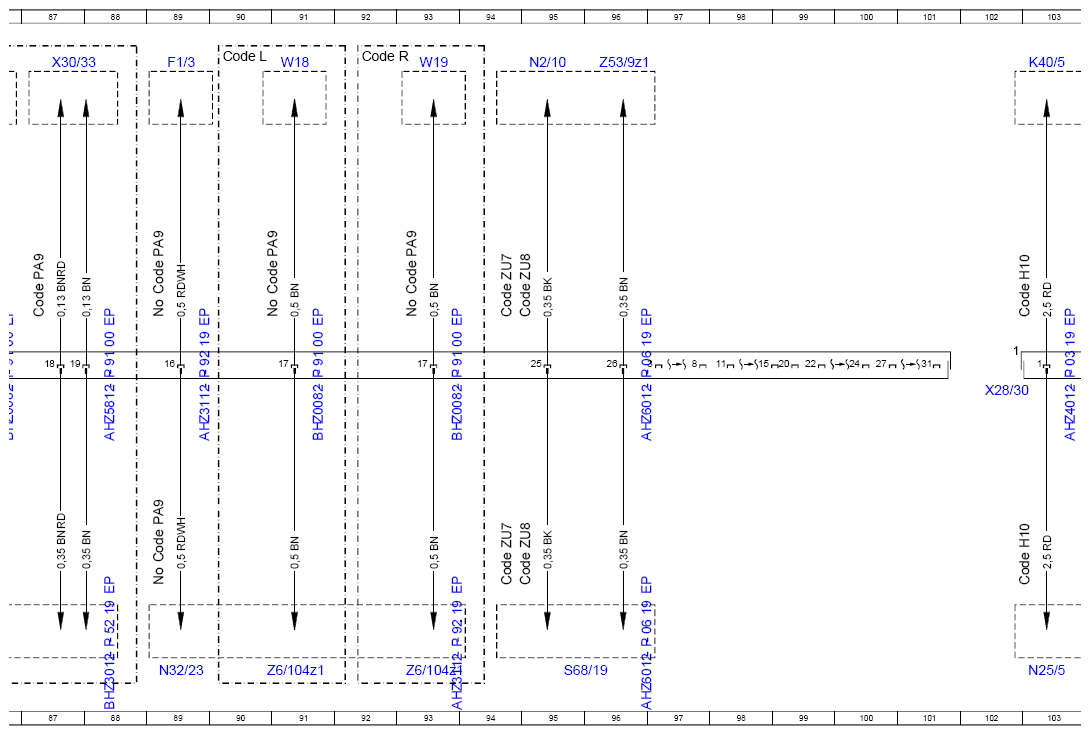

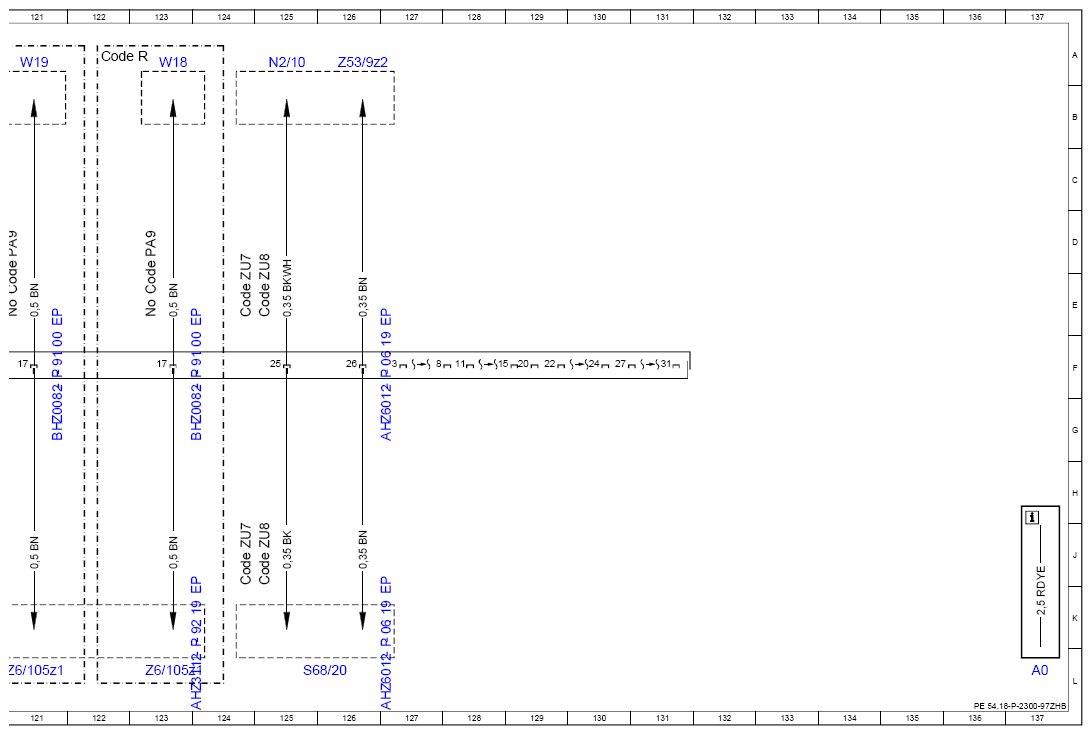

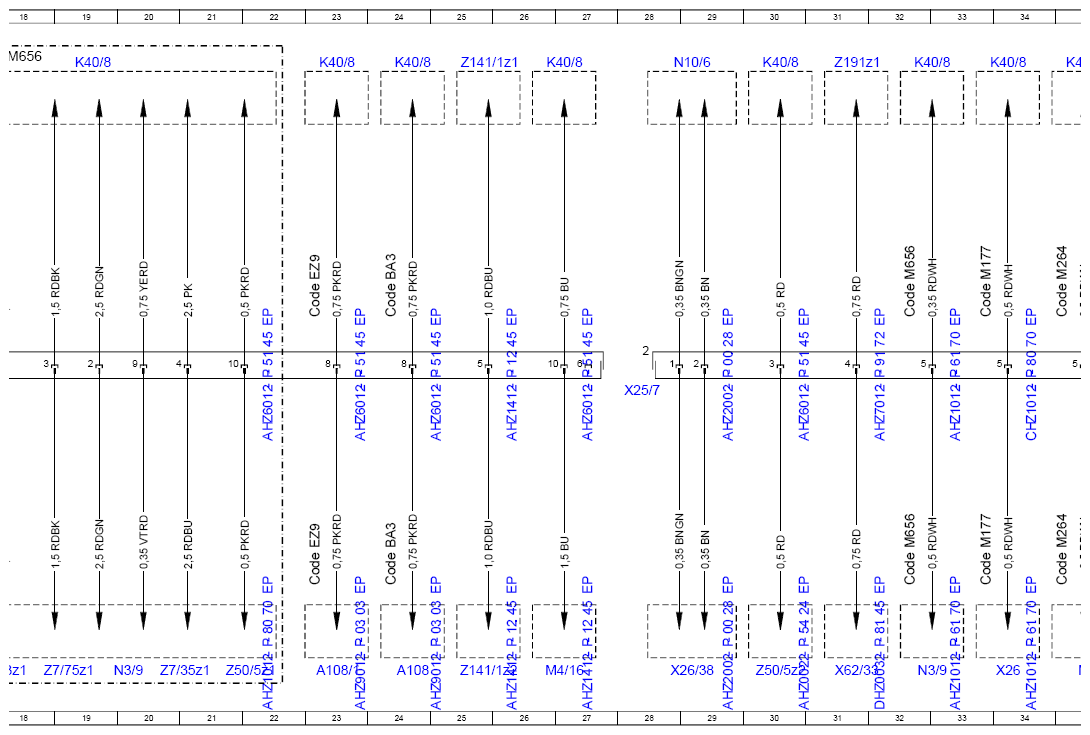

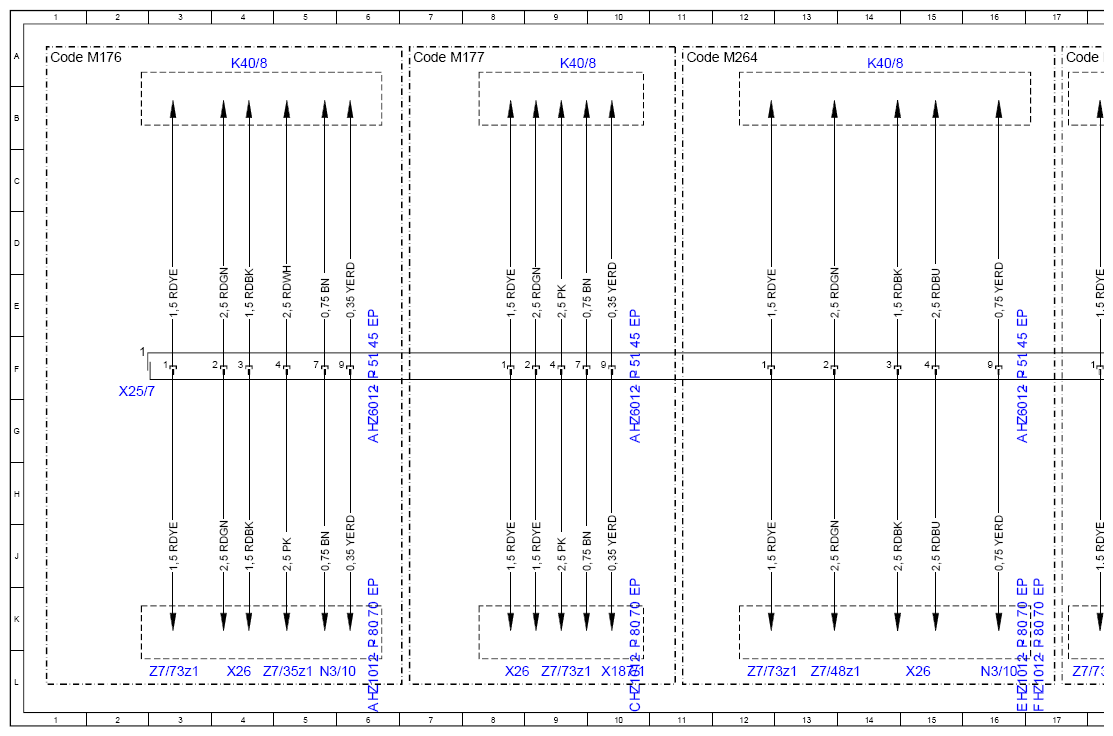

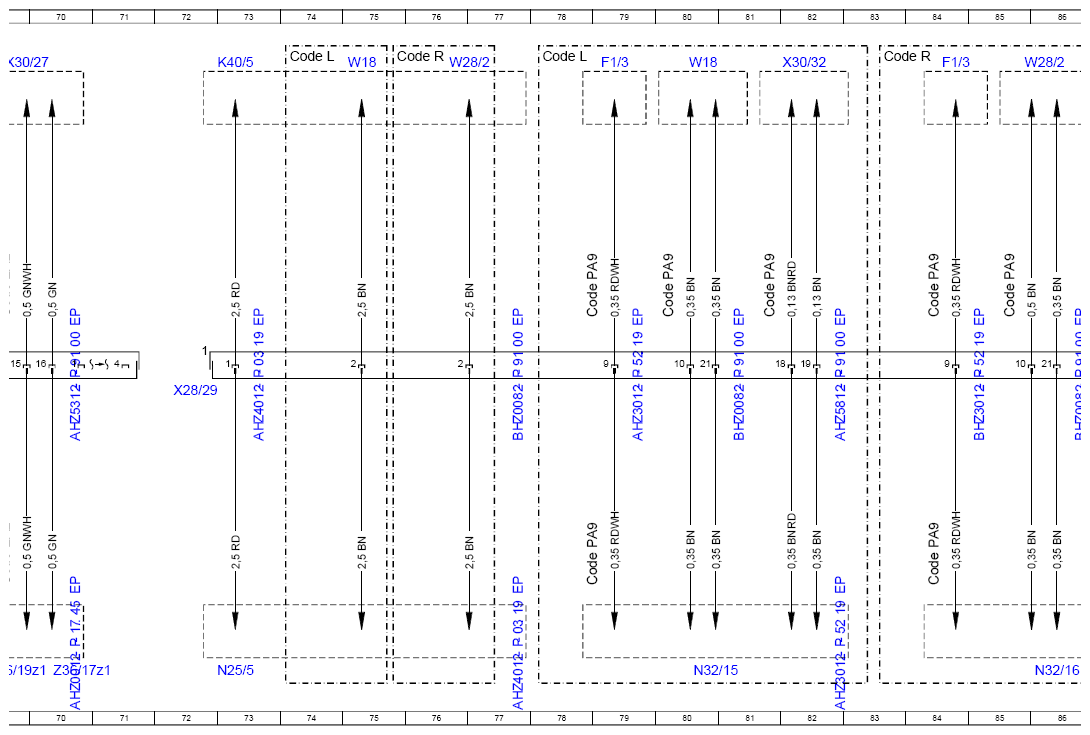

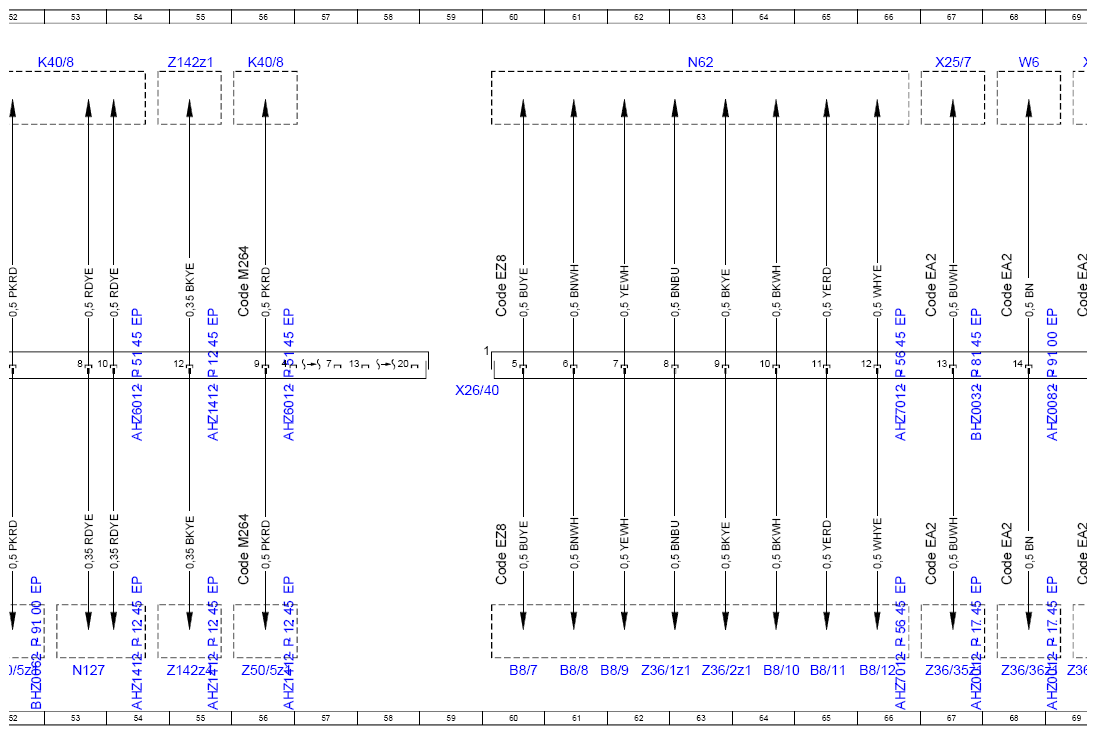

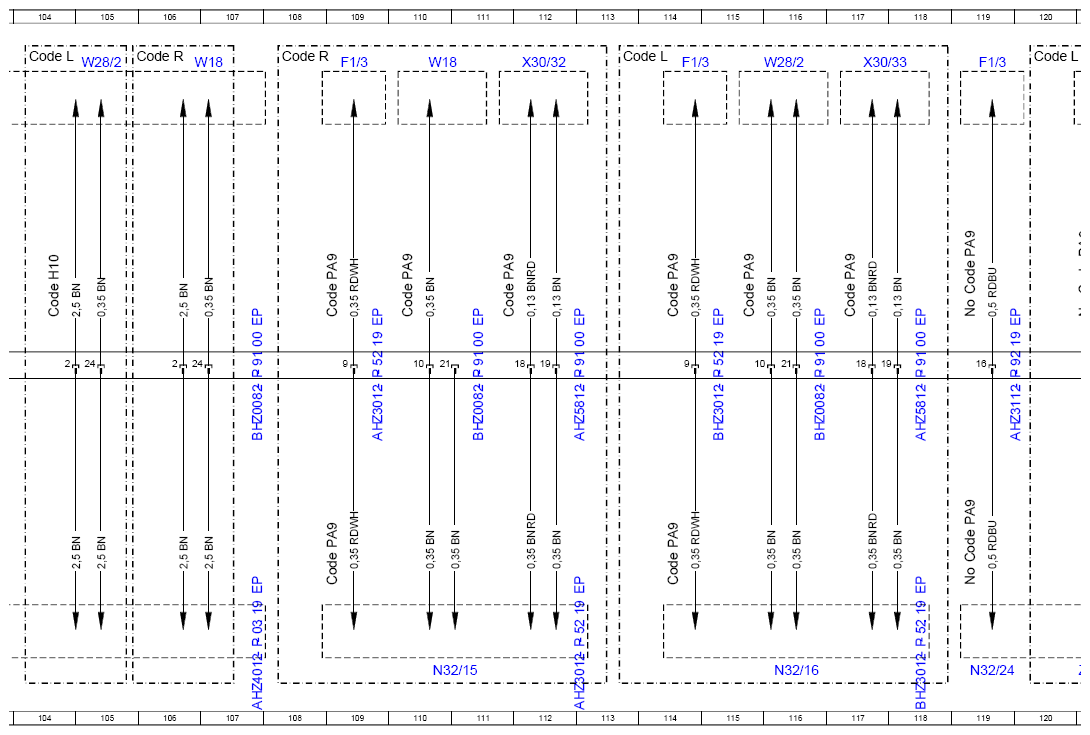

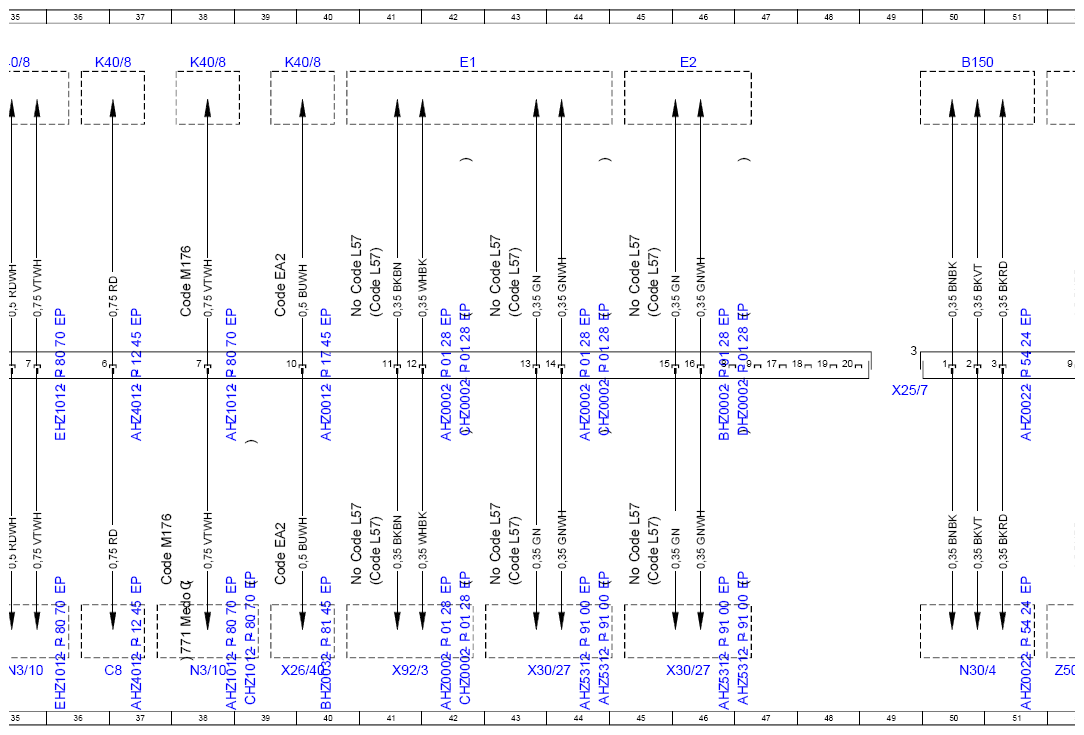

Connector Separation Point Wiring Diagram - PE54.18-P-2300-97ZHB
Model 463 (except 463.342) as of model year 2019 X25/7, X26/40, X28/29, X28/30
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 137L |
| A108 | Active Brake Assist controller unit | 24L |
| A108/1 | Active Distance Assist DISTRONIC electric controller unit | 23L |
| B150 | Brake vacuum sensor | 50A |
| B8/10 | Outer left rear parking system distance sensor | 64L |
| B8/11 | Center left rear parking system distance sensor | 65L |
| B8/12 | Center right rear parking system distance sensor | 66L |
| B8/7 | Outer right rear parking system distance sensor | 60L |
| B8/8 | Inner right rear parking system distance sensor | 61L |
| B8/9 | Inner left rear parking system distance sensor | 62L |
| C8 | Park pawl capacitor | 37L |
| Code BA3 | BAS PLUS Brake Assist System | 24J |
| Code BA3 | BAS PLUS Brake Assist System | 24E |
| Code EA2 | Blind spot assist | 39J |
| Code EA2 | Blind spot assist | 69J |
| Code EA2 | Blind spot assist | 67J |
| Code EA2 | Blind spot assist | 68J |
| Code EA2 | Blind spot assist | 39E |
| Code EA2 | Blind spot assist | 69E |
| Code EA2 | Blind spot assist | 67E |
| Code EA2 | Blind spot assist | 68E |
| Code EZ8 | PARKING ASSIST PARKTRONIC | 60J |
| Code EZ8 | PARKING ASSIST PARKTRONIC | 60E |
| Code EZ9 | Active Distance Assist DISTRONIC | 23J |
| Code EZ9 | Active Distance Assist DISTRONIC | 23E |
| Code H10 | Driver and front passenger seat heater | 103J |
| Code H10 | Driver and front passenger seat heater | 104E |
| Code H10 | Driver and front passenger seat heater | 103E |
| Code L | LEFT-HAND DRIVE | 74A |
| Code L | LEFT-HAND DRIVE | 78A |
| Code L | LEFT-HAND DRIVE | 90A |
| Code L | LEFT-HAND DRIVE | 104A |
| Code L | LEFT-HAND DRIVE | 113A |
| Code L | LEFT-HAND DRIVE | 120A |
| Code L57 | IHC Light | 45J |
| Code L57 | IHC Light | 45J |
| Code L57 | IHC Light | 43J |
| Code L57 | IHC Light | 41J |
| Code L57 | IHC Light | 43J |
| Code L57 | IHC Light | 41J |
| Code L57 | IHC Light | 45E |
| Code L57 | IHC Light | 45E |
| Code L57 | IHC Light | 43E |
| Code L57 | IHC Light | 41E |
| Code L57 | IHC Light | 43E |
| Code L57 | IHC Light | 41E |
| Code M176 | V8-SPARK-IGNITION ENGINE M176 | 38J |
| Code M176 | V8-SPARK-IGNITION ENGINE M176 | 1A |
| Code M176 | V8-SPARK-IGNITION ENGINE M176 | 38E |
| Code M177 | V8 spark-ignition engine M177 - AMG | 33J |
| Code M177 | V8 spark-ignition engine M177 - AMG | 38J |
| Code M177 | V8 spark-ignition engine M177 - AMG | 7A |
| Code M177 | V8 spark-ignition engine M177 - AMG | 33E |
| Code M264 | R4 spark-ignition engine M264 | 35J |
| Code M264 | R4 spark-ignition engine M264 | 56J |
| Code M264 | R4 spark-ignition engine M264 | 11A |
| Code M264 | R4 spark-ignition engine M264 | 35E |
| Code M264 | R4 spark-ignition engine M264 | 56E |
| Code M656 | 6-CYLINDER INLINE DIESEL ENGINE 0M656 | 32J |
| Code M656 | 6-CYLINDER INLINE DIESEL ENGINE 0M656 | 17A |
| Code M656 | 6-CYLINDER INLINE DIESEL ENGINE 0M656 | 32E |
| Code PA9 | SEAT COMFORT PACKAGE PLUS | 79J |
| Code PA9 | SEAT COMFORT PACKAGE PLUS | 89J |
| Code PA9 | SEAT COMFORT PACKAGE PLUS | 84J |
| Code PA9 | SEAT COMFORT PACKAGE PLUS | 109J |
| Code PA9 | SEAT COMFORT PACKAGE PLUS | 119J |
| Code PA9 | SEAT COMFORT PACKAGE PLUS | 114J |
| Code PA9 | SEAT COMFORT PACKAGE PLUS | 91E |
| Code PA9 | SEAT COMFORT PACKAGE PLUS | 89E |
| Code PA9 | SEAT COMFORT PACKAGE PLUS | 81E |
| Code PA9 | SEAT COMFORT PACKAGE PLUS | 87E |
| Code PA9 | SEAT COMFORT PACKAGE PLUS | 85E |
| Code PA9 | SEAT COMFORT PACKAGE PLUS | 84E |
| Code PA9 | SEAT COMFORT PACKAGE PLUS | 79E |
| Code PA9 | SEAT COMFORT PACKAGE PLUS | 80E |
| Code PA9 | SEAT COMFORT PACKAGE PLUS | 110E |
| Code PA9 | SEAT COMFORT PACKAGE PLUS | 109E |
| Code PA9 | SEAT COMFORT PACKAGE PLUS | 112E |
| Code PA9 | SEAT COMFORT PACKAGE PLUS | 93E |
| Code PA9 | SEAT COMFORT PACKAGE PLUS | 123E |
| Code PA9 | SEAT COMFORT PACKAGE PLUS | 121E |
| Code PA9 | SEAT COMFORT PACKAGE PLUS | 114E |
| Code PA9 | SEAT COMFORT PACKAGE PLUS | 115E |
| Code PA9 | SEAT COMFORT PACKAGE PLUS | 117E |
| Code PA9 | SEAT COMFORT PACKAGE PLUS | 119E |
| Code R | RIGHT-HAND DRIVE | 75A |
| Code R | RIGHT-HAND DRIVE | 83A |
| Code R | RIGHT-HAND DRIVE | 92A |
| Code R | RIGHT-HAND DRIVE | 105A |
| Code R | RIGHT-HAND DRIVE | 108A |
| Code R | RIGHT-HAND DRIVE | 122A |
| Code ZU7 | Canada national version | 94J |
| Code ZU7 | Canada national version | 124J |
| Code ZU7 | Canada national version | 94E |
| Code ZU7 | Canada national version | 124E |
| Code ZU8 | USA national version | 95J |
| Code ZU8 | USA national version | 125J |
| Code ZU8 | USA national version | 95E |
| Code ZU8 | USA national version | 125E |
| E1 | Left front lamp unit | 42A |
| E2 | Right front lamp unit | 46A |
| F1/3 | Right A-pillar fuse box | 79A |
| F1/3 | Right A-pillar fuse box | 84A |
| F1/3 | Right A-pillar fuse box | 89A |
| F1/3 | Right A-pillar fuse box | 109A |
| F1/3 | Right A-pillar fuse box | 114A |
| F1/3 | Right A-pillar fuse box | 119A |
| K40/5 | Rear fuse and relay module | 73A |
| K40/5 | Rear fuse and relay module | 103A |
| K40/8 | Engine fuse and relay module | 4A |
| K40/8 | Engine fuse and relay module | 9A |
| K40/8 | Engine fuse and relay module | 14A |
| K40/8 | Engine fuse and relay module | 19A |
| K40/8 | Engine fuse and relay module | 23A |
| K40/8 | Engine fuse and relay module | 24A |
| K40/8 | Engine fuse and relay module | 36A |
| K40/8 | Engine fuse and relay module | 27A |
| K40/8 | Engine fuse and relay module | 30A |
| K40/8 | Engine fuse and relay module | 32A |
| K40/8 | Engine fuse and relay module | 34A |
| K40/8 | Engine fuse and relay module | 35A |
| K40/8 | Engine fuse and relay module | 39A |
| K40/8 | Engine fuse and relay module | 38A |
| K40/8 | Engine fuse and relay module | 53A |
| K40/8 | Engine fuse and relay module | 56A |
| M4/16 | Engine oil cooler fan motor | 27L |
| N10/6 | Front SAM control unit | 29A |
| N127 | Drivetrain control unit | 53L |
| N2/10 | Supplemental restraint system control unit | 95A |
| N2/10 | Supplemental restraint system control unit | 125A |
| N25/5 | Driver seat heater control unit | 73L |
| N25/5 | Driver seat heater control unit | 103L |
| N3/10 | ME-SFI [ME] control unit | 5L |
| N3/10 | ME-SFI [ME] control unit | 16L |
| N3/10 | ME-SFI [ME] control unit | 35L |
| N3/10 | ME-SFI [ME] control unit | 38L |
| N3/9 | CDI control unit | 20L |
| N3/9 | CDI control unit | 32L |
| N30/4 | Electronic Stability Program control unit | 50L |
| N32/15 | Left front multicontour seat control unit | 80L |
| N32/15 | Left front multicontour seat control unit | 110L |
| N32/16 | Right front multicontour seat control unit | 86L |
| N32/16 | Right front multicontour seat control unit | 116L |
| N32/23 | Driver seat lumbar support adjustment control unit | 89L |
| N32/24 | Front passenger seat lumbar support adjustment control unit | 119L |
| N62 | Parking system control unit | 63A |
| S68/19 | Driver seat position switch | 95L |
| S68/20 | Front passenger seat position switch | 125L |
| W18 | Left front seat crossmember ground point | 91A |
| W18 | Left front seat crossmember ground point | 80A |
| W18 | Left front seat crossmember ground point | 75A |
| W18 | Left front seat crossmember ground point | 107A |
| W18 | Left front seat crossmember ground point | 110A |
| W18 | Left front seat crossmember ground point | 123A |
| W19 | Right front seat crossmember ground point | 93A |
| W19 | Right front seat crossmember ground point | 121A |
| W28/2 | Right front seat crossmember ground point 2 | 76A |
| W28/2 | Right front seat crossmember ground point 2 | 86A |
| W28/2 | Right front seat crossmember ground point 2 | 105A |
| W28/2 | Right front seat crossmember ground point 2 | 116A |
| W6 | Left rear wheel well ground point | 68A |
| X187/1 | Combustion engine electrical connector 1 | 10L |
| X25/7 | Engine compartment/frame floor assembly electrical connector | 2F |
| X25/7 | Engine compartment/frame floor assembly electrical connector | 28F |
| X25/7 | Engine compartment/frame floor assembly electrical connector | 49F |
| X25/7 | Engine compartment/frame floor assembly electrical connector | 67A |
| X26 | Engine/engine compartment electrical connector | 4L |
| X26 | Engine/engine compartment electrical connector | 15L |
| X26 | Engine/engine compartment electrical connector | 8L |
| X26 | Engine/engine compartment electrical connector | 34L |
| X26/38 | Front bumper electrical connector | 29L |
| X26/40 | Rear bumper electrical connector | 39L |
| X26/40 | Rear bumper electrical connector | 59F |
| X28/29 | Frame floor assembly/driver seat electrical connector | 72F |
| X28/30 | Frame floor assembly/front passenger seat electrical connector | 102F |
| X30/27 | Peripherals CAN (CAN PER) potential distributor | 69A |
| X30/27 | Peripherals CAN (CAN PER) potential distributor | 46L |
| X30/27 | Peripherals CAN (CAN PER) potential distributor | 43L |
| X30/32 | Interior CAN (CAN B) potential distributor, left | 82A |
| X30/32 | Interior CAN (CAN B) potential distributor, left | 112A |
| X30/33 | Interior CAN (CAN B) potential distributor, right | 87A |
| X30/33 | Interior CAN (CAN B) potential distributor, right | 117A |
| X62/33 | Rear axle electrical connector, right distributor | 31L |
| X92/3 | Vehicle frame electrical connector | 41L |
| Z141/1z1 | Circuit 87C connector sleeve | 25A |
| Z141/1z2 | Circuit 87C connector sleeve | 25L |
| Z142z1 | LIN C3 connector sleeve | 55A |
| Z142z4 | LIN C3 connector sleeve | 55L |
| Z191z1 | Circuit 87C connector sleeve | 31A |
| Z36/17z1 | Periphery CAN (CAN PER) low connector sleeve | 70L |
| Z36/19z1 | Periphery CAN (CAN PER) high connector sleeve | 69L |
| Z36/1z1 | Ground connection connector sleeve | 62L |
| Z36/2z1 | Voltage supply connector sleeve | 63L |
| Z36/35z1 | Voltage supply connector sleeve | 67L |
| Z36/36z1 | Ground connection connector sleeve | 68L |
| Z50/5z1 | Circuit 15M connector sleeve | 21L |
| Z50/5z1 | Circuit 15M connector sleeve | 52L |
| Z50/5z1 | Circuit 15M connector sleeve | 56L |
| Z50/5z2 | Circuit 15M connector sleeve | 30L |
| Z53/9z1 | Ground connection connector sleeve | 96A |
| Z53/9z2 | Ground connection connector sleeve | 126A |
| Z6/104z1 | Ground connection connector sleeve | 91L |
| Z6/104z1 | Ground connection connector sleeve | 93L |
| Z6/105z1 | Ground connection connector sleeve | 123L |
| Z6/105z1 | Ground connection connector sleeve | 121L |
| Z7/35z1 | Circuit 87M connector sleeve | 5L |
| Z7/35z1 | Circuit 87M connector sleeve | 20L |
| Z7/48z1 | Circuit 87/2 connector sleeve | 13L |
| Z7/73z1 | Circuit 87M connector sleeve | 3L |
| Z7/73z1 | Circuit 87M connector sleeve | 12L |
| Z7/73z1 | Circuit 87M connector sleeve | 9L |
| Z7/73z1 | Circuit 87M connector sleeve | 17L |
| Z7/75z1 | Circuit 87M connector sleeve | 19L |
