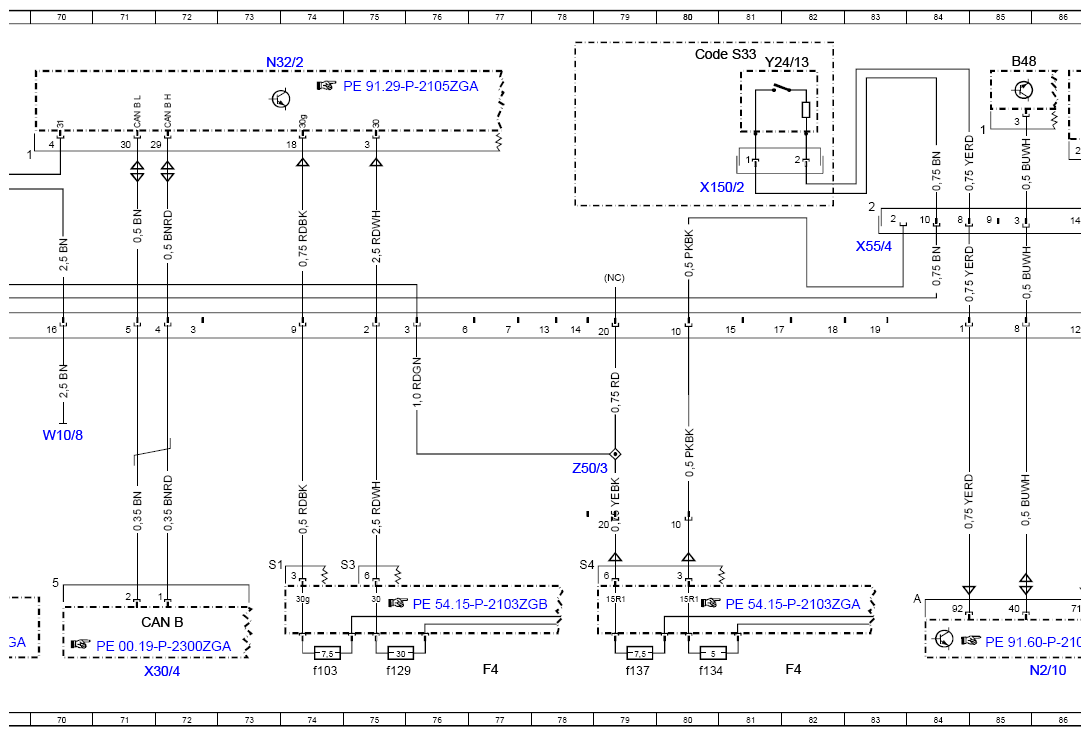

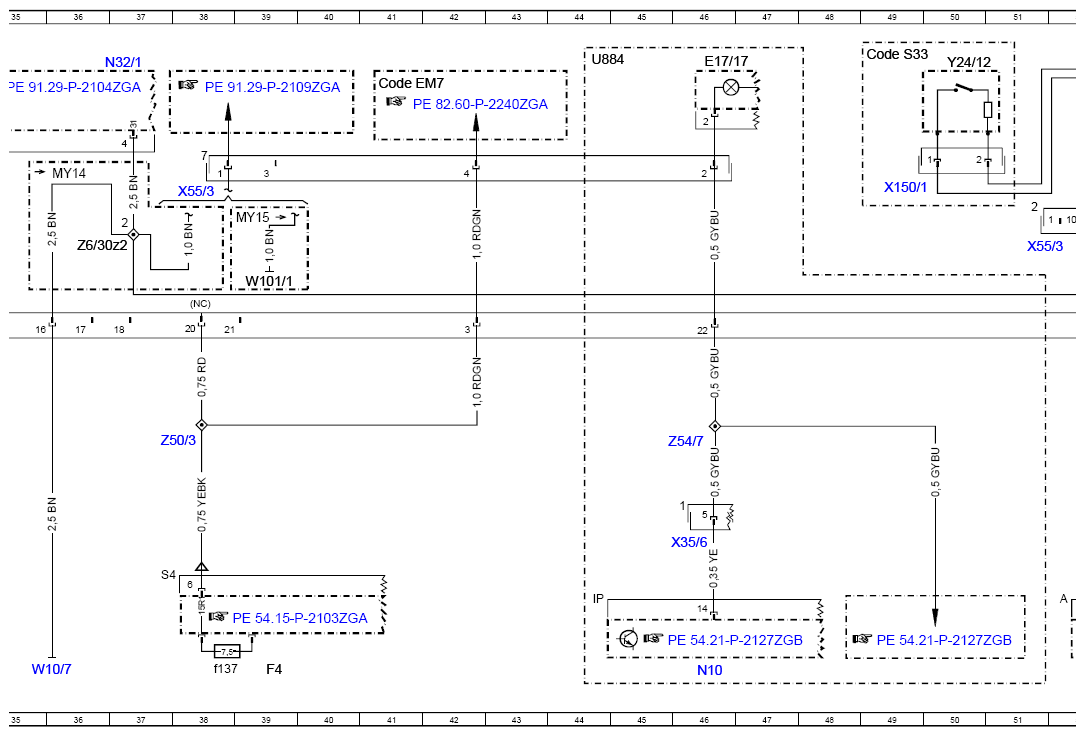

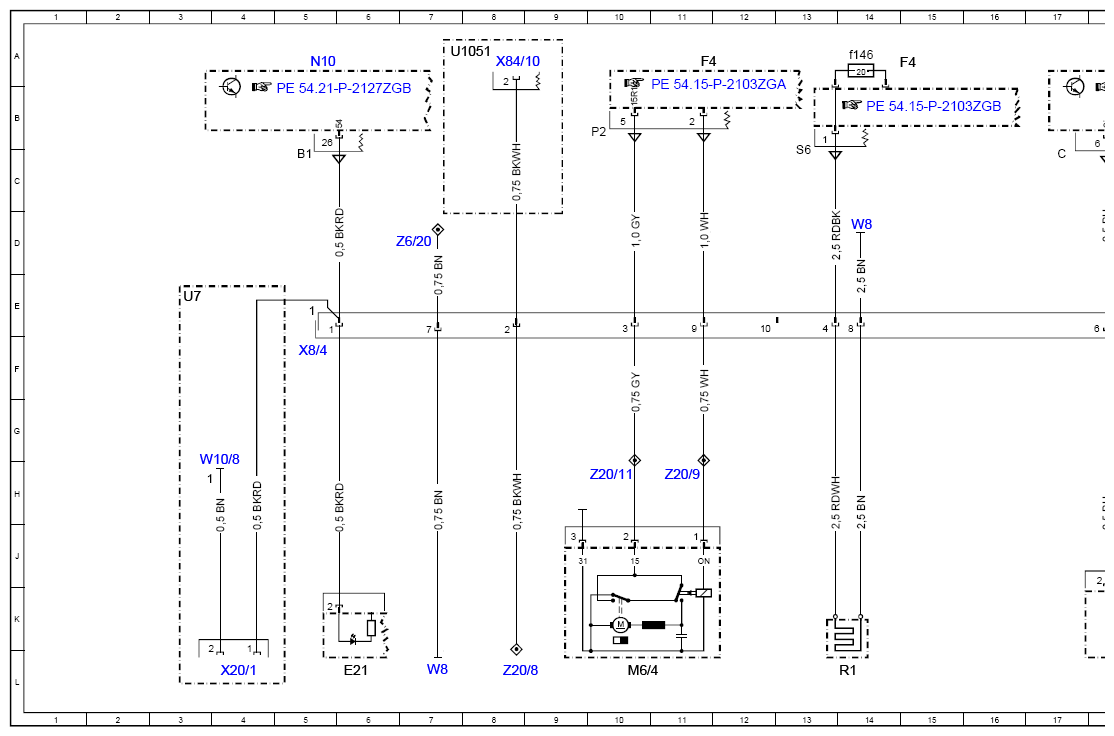

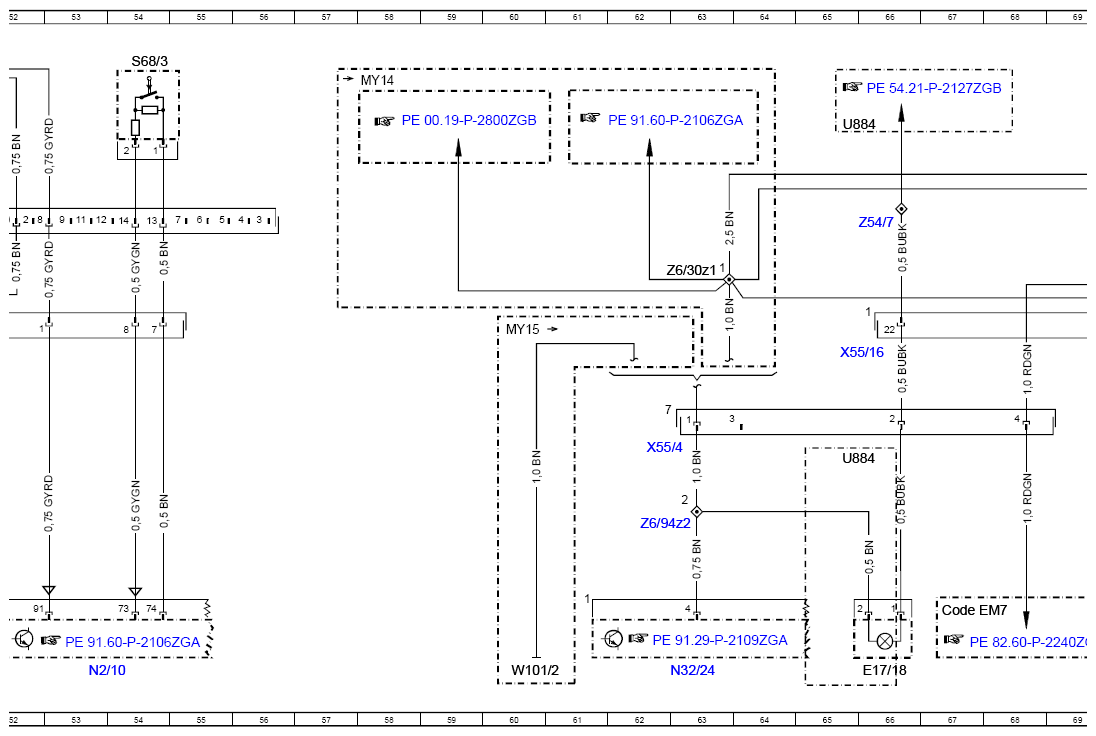

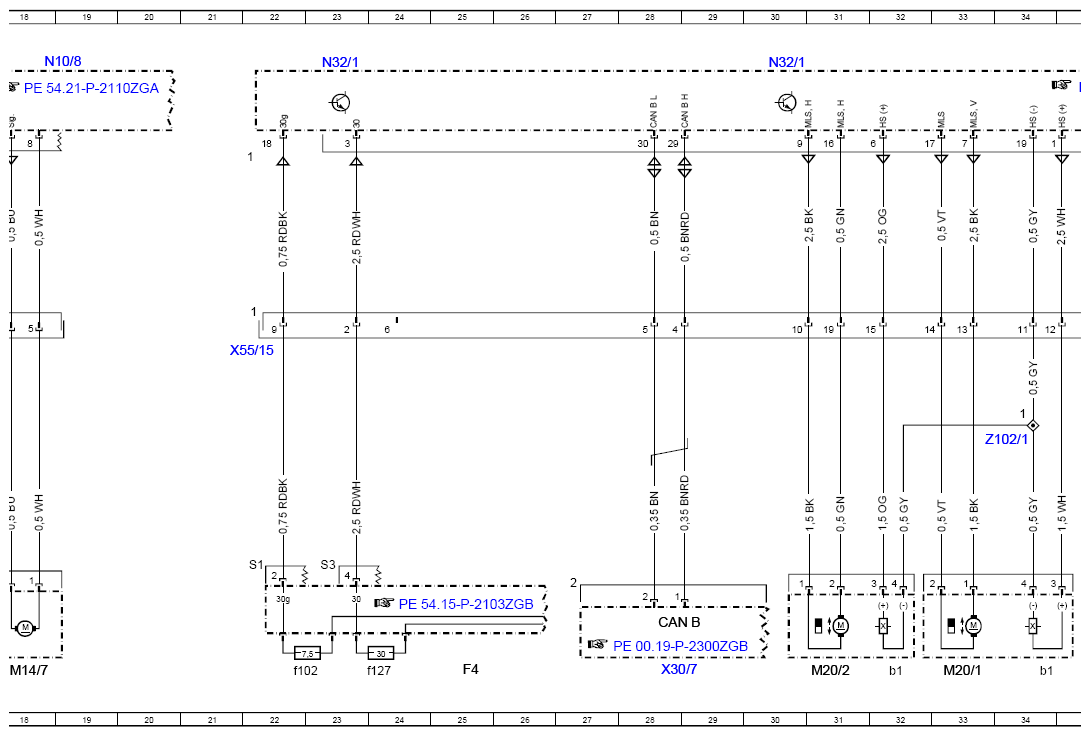

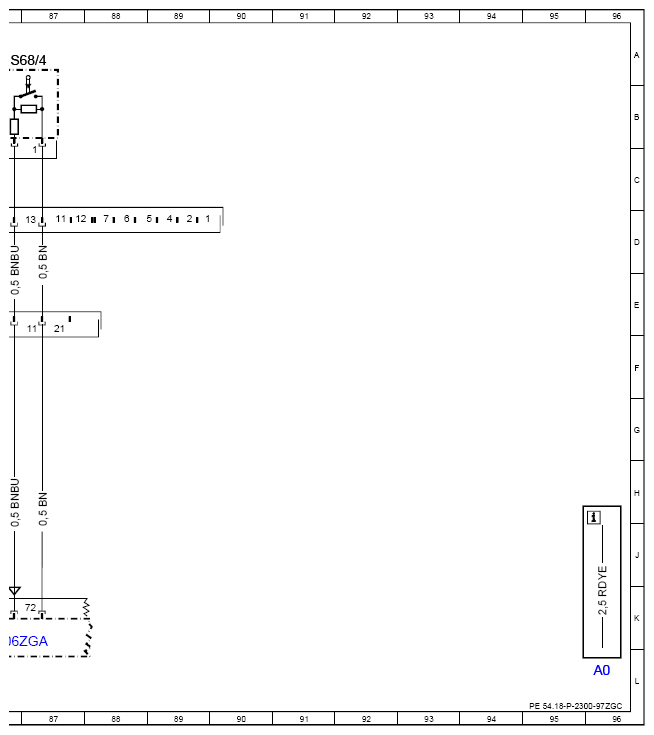

Connector Separation Point Wiring Diagram - PE54.18-P-2300-97ZGC
Model 463 as of model year 2013 up to model year 2019
/YoM 12 model refinement package up to YoM 18 model refinement package, X8/4 (1), X55/3 (2), X55/3 (7), X55/4 (2), X55/4 (7), X55/15, X55/16
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 96L |
| B48 | Front passenger seat occupied recognition and ACSR | 85A |
| CAN B | Interior CAN | 28K |
| CAN B | Interior CAN | 71K |
| Code EM7 | Rear compartment entertainment | 41B |
| Code EM7 | Rear compartment entertainment | 67K |
| Code S33 | Head restraint, crash-active | 49A |
| Code S33 | Head restraint, crash-active | 80A |
| E17/17 | Left rear footwell lamp | 46A |
| E17/18 | Right rear footwell lamp | 66L |
| E21 | Center high-mounted stop lamp | 6L |
| F4 | Rear fuse and relay module | 11A |
| F4 | Rear fuse and relay module | 15A |
| F4 | Rear fuse and relay module | 25L |
| F4 | Rear fuse and relay module | 77L |
| F4 | Rear fuse and relay module | 39L |
| F4 | Rear fuse and relay module | 82L |
| F4f102 | Fuse 102 | 22L |
| F4f103 | Fuse 103 | 74L |
| F4f127 | Fuse 127 | 24L |
| F4f129 | Fuse 129 | 75L |
| F4f134 | Fuse 134 | 80L |
| F4f137 | Fuse 137 | 79L |
| F4f137 | Fuse 137 | 38L |
| F4f146 | Fuse 146 | 14A |
| M14/7 | Rear-end door central locking motor | 18L |
| M20/1 | Steering column in/out adjustment motor | 33L |
| M20/1b1 | Steering column in/out Hall sensor | 34L |
| M20/2 | Steering column up/down adjustment motor | 31L |
| M20/2b1 | Steering column up/down Hall sensor | 32L |
| M6/4 | Rear-end door wiper motor | 10L |
| N10 | SAM control unit | 5A |
| N10 | SAM control unit | 46L |
| N10/8 | Rear control unit | 18A |
| N2/10 | Supplemental restraint system control unit | 53L |
| N2/10 | Supplemental restraint system control unit | 86L |
| N32/1 | Driver seat control unit | 30A |
| N32/1 | Driver seat control unit | 23A |
| N32/1 | Driver seat control unit | 37A |
| N32/2 | Front passenger seat control unit | 73A |
| N32/24 | Front passenger seat lumbar support adjustment control unit | 63L |
| R1 | Rear window heater | 14L |
| S68/3 | Driver seat belt buckle restraint system switch | 54A |
| S68/4 | Front passenger seat belt buckle restraint system switch | 86A |
| U1051 | Valid for rear window wiper | 7A |
| U7 | Valid for convertibles | 3E |
| U884 | Valid for ambiance illumination | 44A |
| U884 | Valid for ambiance illumination | 65B |
| U884 | Valid for ambiance illumination | 65H |
| W10/7 | Left battery recess ground point | 35L |
| W10/8 | Right battery recess ground point | 3H |
| W10/8 | Right battery recess ground point | 70G |
| W101/1 | Driver seat ground point | 39E |
| W101/2 | Front passenger seat ground point | 60L |
| W8 | Liftgate ground point | 7L |
| W8 | Liftgate ground point | 14D |
| X150/1 | Driver NECK-PRO head restraint electrical connector | 49C |
| X150/2 | Front passenger NECK-PRO head restraint electrical connector | 81C |
| X20/1 | Center high-mounted brake lamp electrical connector | 4L |
| X30/4 | Interior CAN 1 (CAN B) potential distributor electrical connector | 71L |
| X30/7 | Interior CAN 2 (CAN B) potential distributor electrical connector | 28L |
| X35/6 | Instrument panel and module box electrical connector | 46J |
| X55/15 | Driver seat electrical connector | 22F |
| X55/16 | Front passenger seat electrical connector | 66F |
| X55/3 | Driver seat connector block | 51D |
| X55/3 | Driver seat connector block | 38C |
| X55/4 | Front passenger seat connector block | 62G |
| X55/4 | Front passenger seat connector block | 83D |
| X8/4 | Tailgate electrical connector | 5F |
| X84/10 | Rear window wiper diode electrical connector | 8A |
| Y24/12 | Driver NECK-PRO head restraint solenoid | 50A |
| Y24/13 | Front passenger NECK-PRO head restraint solenoid | 81A |
| Z102/1 | Steering column adjustment electric motor connector sleeve | 34G |
| Z20/11 | Cable end insulation not stripped, placed inside insulated tubing | 10H |
| Z20/8 | Shielding placed inside insulating tubing | 8L |
| Z20/9 | Shielding placed inside insulating tubing | 11H |
| Z50/3 | Connector sleeve 3 | 78H |
| Z50/3 | Connector sleeve 3 | 38G |
| Z54/7 | Footwell lamps connector sleeve | 46G |
| Z54/7 | Footwell lamps connector sleeve | 66D |
| Z6/20 | Liftgate ground connector sleeve | 7D |
| Z6/30z1 | Driver seat ground line connector sleeve | 63E |
| Z6/30z2 | Front passenger seat ground line connector sleeve | 36D |
| Z6/94z2 | Driver seat circuit 31 connector sleeve 2 | 62J |
