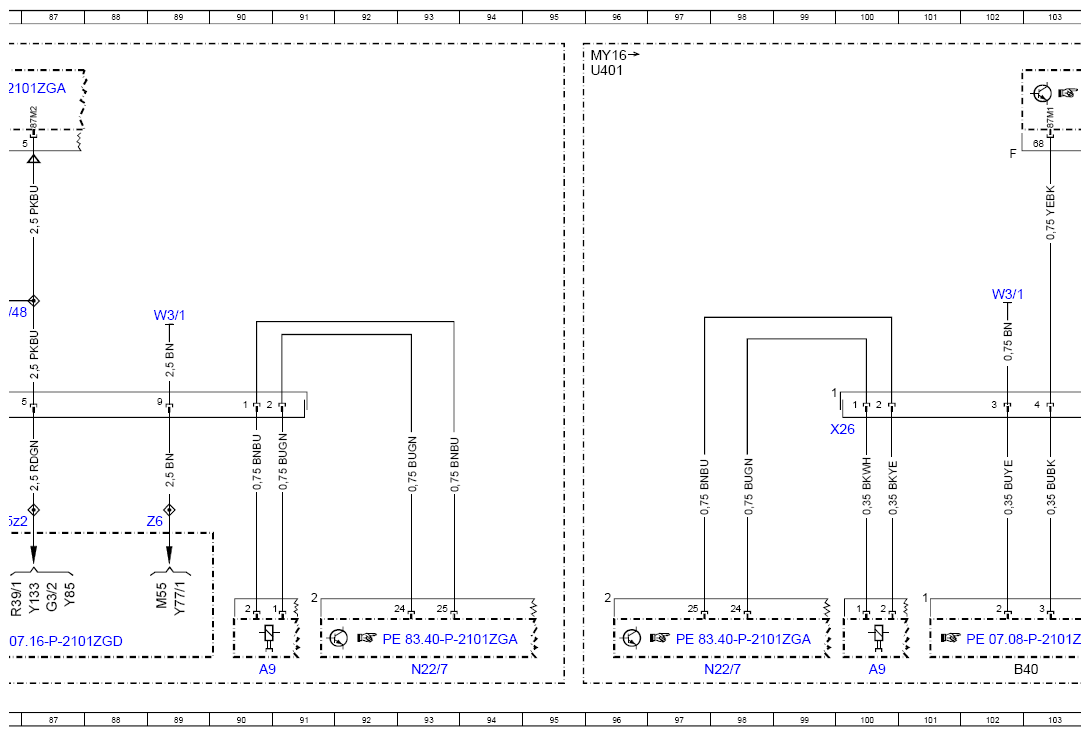

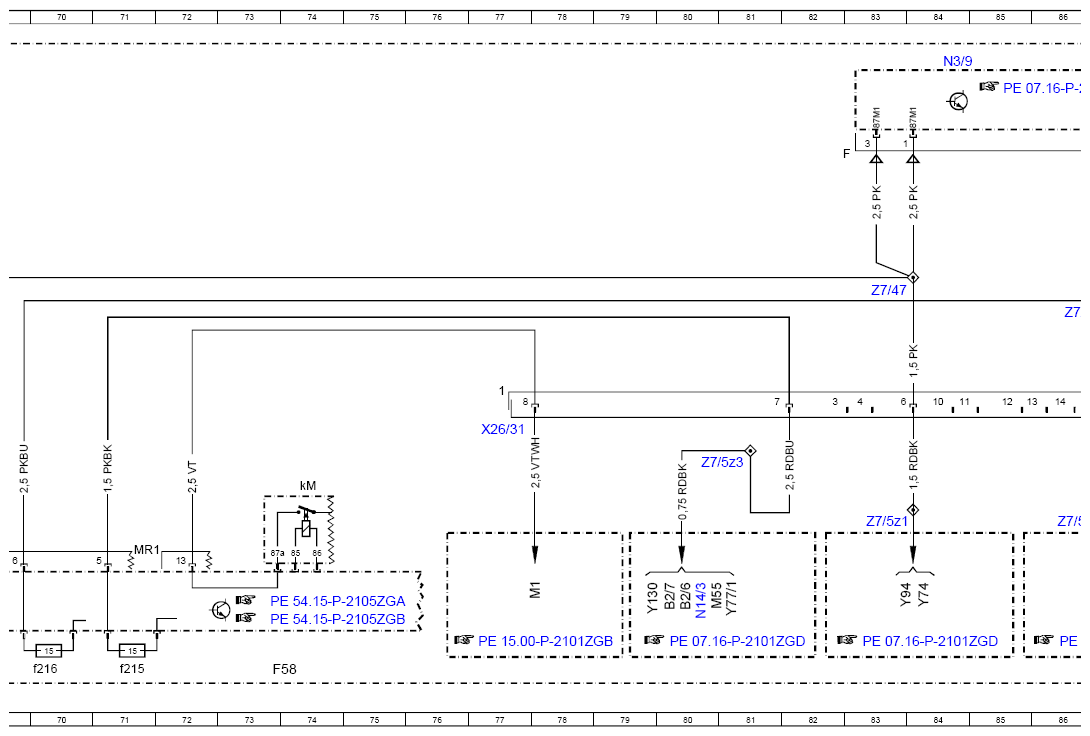

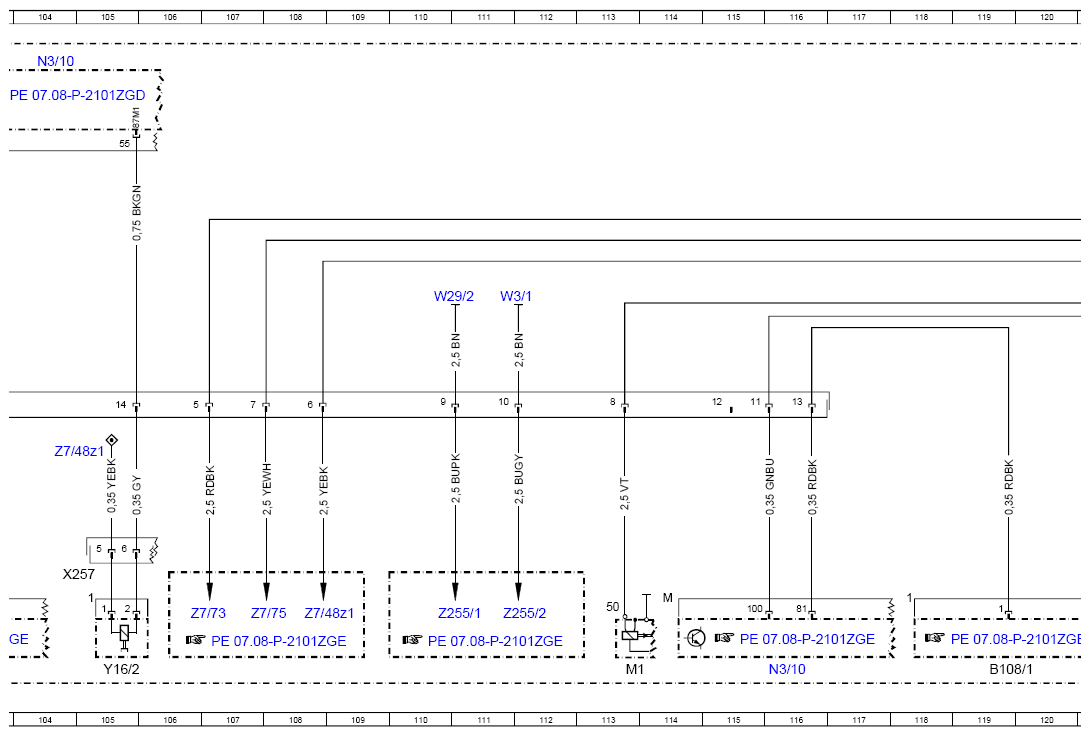

Connector Separation Point Wiring Diagram - PE54.18-P-2300-97ZGB
Model 463 as of model year 2013 up to model year 2019
/YoM 12 model refinement package up to YoM 18 model refinement package, X26 (1), X26/31
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 176L |
| A9 | Refrigerant compressor | 9L |
| A9 | Refrigerant compressor | 26L |
| A9 | Refrigerant compressor | 60L |
| A9 | Refrigerant compressor | 90L |
| A9 | Refrigerant compressor | 100L |
| A9 | Refrigerant compressor | 156L |
| B108/1 | Left purge pressure sensor | 119L |
| B108/2 | Right purge pressure sensor | 123L |
| B2/6 | Left hot film MAF sensor | 49J |
| B2/6 | Left hot film MAF sensor | 80J |
| B2/7 | Right hot film MAF sensor | 49J |
| B2/7 | Right hot film MAF sensor | 80J |
| B40 | Oil sensor (oil level, temperature and quality) | 102L |
| F4 | Rear fuse and relay module | 36L |
| F4 | Rear fuse and relay module | 67L |
| F4kC | Fuel pump relay | 36J |
| F4kC | Fuel pump relay | 67J |
| F58 | Front passenger footwell fuse and relay module | 5B |
| F58 | Front passenger footwell fuse and relay module | 21B |
| F58 | Front passenger footwell fuse and relay module | 43L |
| F58 | Front passenger footwell fuse and relay module | 16L |
| F58 | Front passenger footwell fuse and relay module | 73L |
| F58 | Front passenger footwell fuse and relay module | 131L |
| F58 | Front passenger footwell fuse and relay module | 126L |
| F58f214 | Fuse 214 | 131L |
| F58f214 | Fuse 214 | 137L |
| F58f215 | Fuse 215 | 6B |
| F58f215 | Fuse 215 | 22B |
| F58f215 | Fuse 215 | 40L |
| F58f215 | Fuse 215 | 71L |
| F58f215 | Fuse 215 | 130L |
| F58f215 | Fuse 215 | 138L |
| F58f216 | Fuse 216 | 38L |
| F58f216 | Fuse 216 | 15L |
| F58f216 | Fuse 216 | 70L |
| F58f216 | Fuse 216 | 129L |
| F58f216 | Fuse 216 | 168L |
| F58f217 | Fuse 217 | 7B |
| F58f217 | Fuse 217 | 23B |
| F58f217 | Fuse 217 | 139L |
| F58kM | Starter circuit 50 relay | 3A |
| F58kM | Starter circuit 50 relay | 20A |
| F58kM | Starter circuit 50 relay | 42H |
| F58kM | Starter circuit 50 relay | 74H |
| G3/2 | Oxygen sensor upstream of catalytic converter | 56J |
| G3/2 | Oxygen sensor upstream of catalytic converter | 87J |
| G3/5 | Left oxygen sensor downstream of catalytic converter | 150L |
| G3/5x1 | Electrical connector for left oxygen sensor downstream of catalytic converter | 149 J |
| M1 | Starter | 3K |
| M1 | Starter | 20K |
| M1 | Starter | 47J |
| M1 | Starter | 78J |
| M1 | Starter | 113L |
| M55 | Intake port shutoff actuator motor | 50J |
| M55 | Intake port shutoff actuator motor | 58J |
| M55 | Intake port shutoff actuator motor | 80J |
| M55 | Intake port shutoff actuator motor | 89J |
| N14/3 | Glow output stage | 49J |
| N14/3 | Glow output stage | 80J |
| N2/10 | Supplemental restraint system control unit | 161A |
| N22/7 | Climate control and operating unit | 12L |
| N22/7 | Climate control and operating unit | 28L |
| N22/7 | Climate control and operating unit | 62L |
| N22/7 | Climate control and operating unit | 93L |
| N22/7 | Climate control and operating unit | 98L |
| N22/7 | Climate control and operating unit | 156A |
| N3/10 | ME-SFI [ME] control unit | 104A |
| N3/10 | ME-SFI [ME] control unit | 116L |
| N3/10 | ME-SFI [ME] control unit | 153L |
| N3/10 | ME-SFI [ME] control unit | 162L |
| N3/10 | ME-SFI [ME] control unit | 150A |
| N3/10 | ME-SFI [ME] control unit | 137A |
| N3/10 | ME-SFI [ME] control unit | 145A |
| N3/9 | CDI control unit | 54A |
| N3/9 | CDI control unit | 84A |
| R39/1 | Vent line heater element | 56J |
| R39/1 | Vent line heater element | 86J |
| R48 | Coolant thermostat heating element | 56J |
| U1028 | Valid for engine 157 | 18A |
| U1035 | Valid for gasoline engine 279 | 135A |
| U401 | Valid for engine 176 | 96A |
| U426 | Valid with engine 642.887 | 65A |
| U484 | Valid for M273 ME | 1A |
| U880 | Valid for diesel engine 642 | 34A |
| W29/2 | Right A-pillar ground connection | 8F |
| W29/2 | Right A-pillar ground connection | 24F |
| W29/2 | Right A-pillar ground connection | 58E |
| W29/2 | Right A-pillar ground connection | 110E |
| W3/1 | Ground point (right front wheel well) | 89E |
| W3/1 | Ground point (right front wheel well) | 102E |
| W3/1 | Ground point (right front wheel well) | 111E |
| W30 | Frame ground point | 158E |
| X257 | Cooling system electrical connector | 105J |

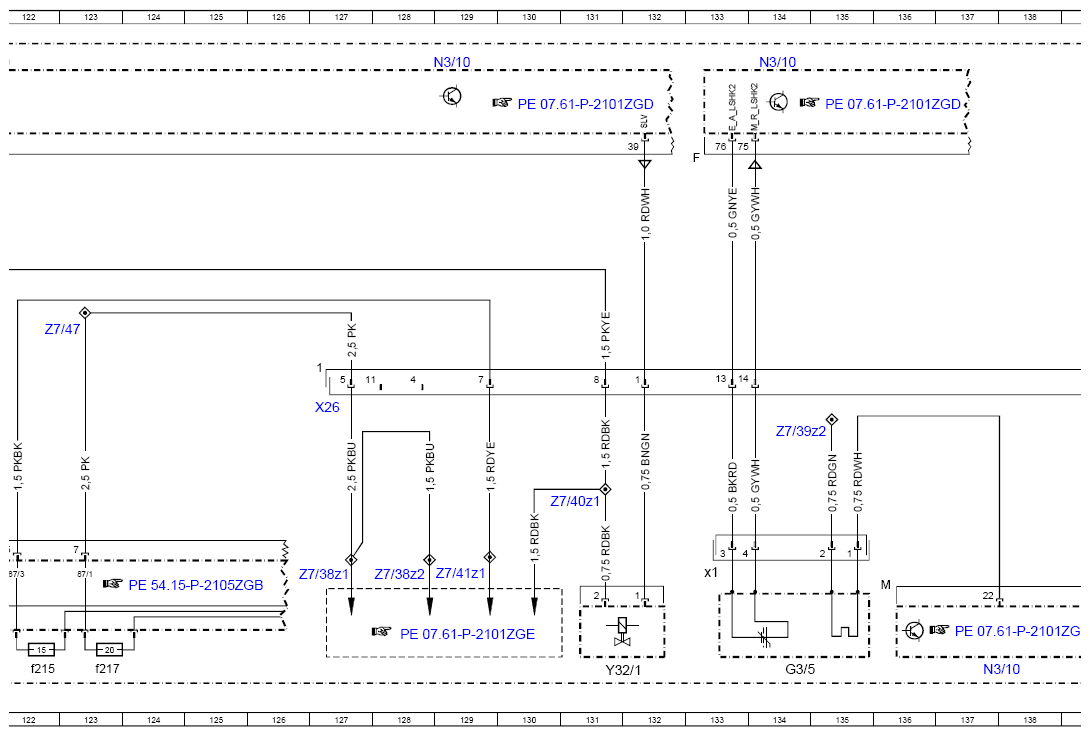

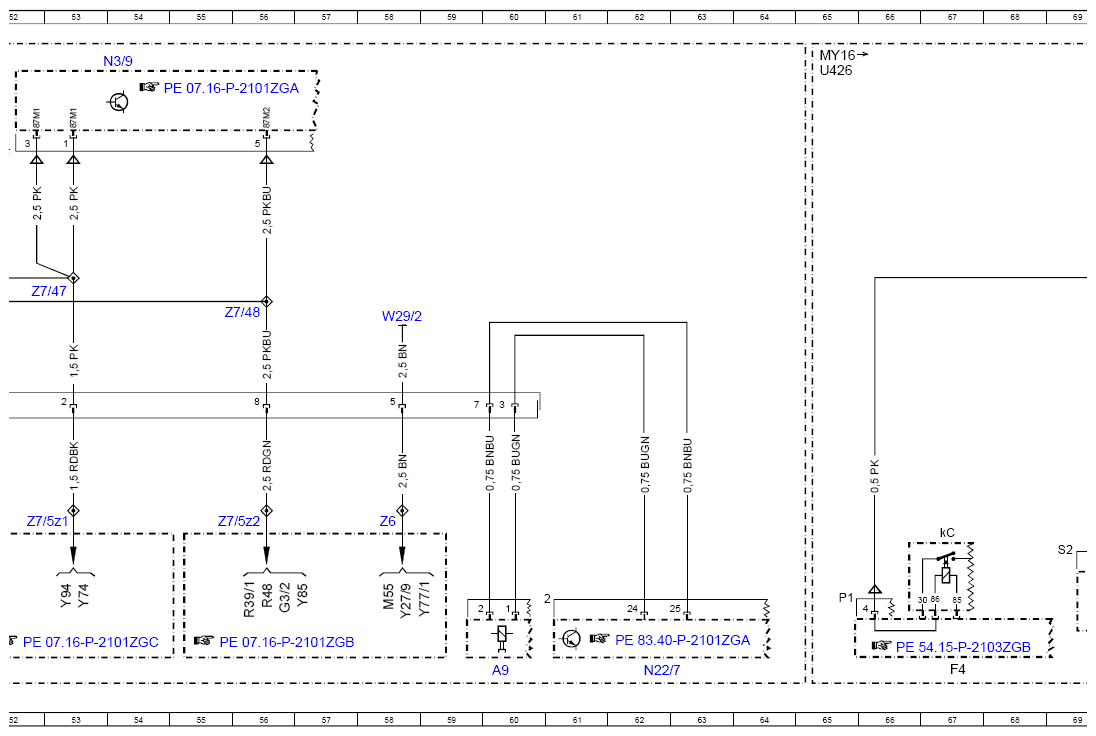

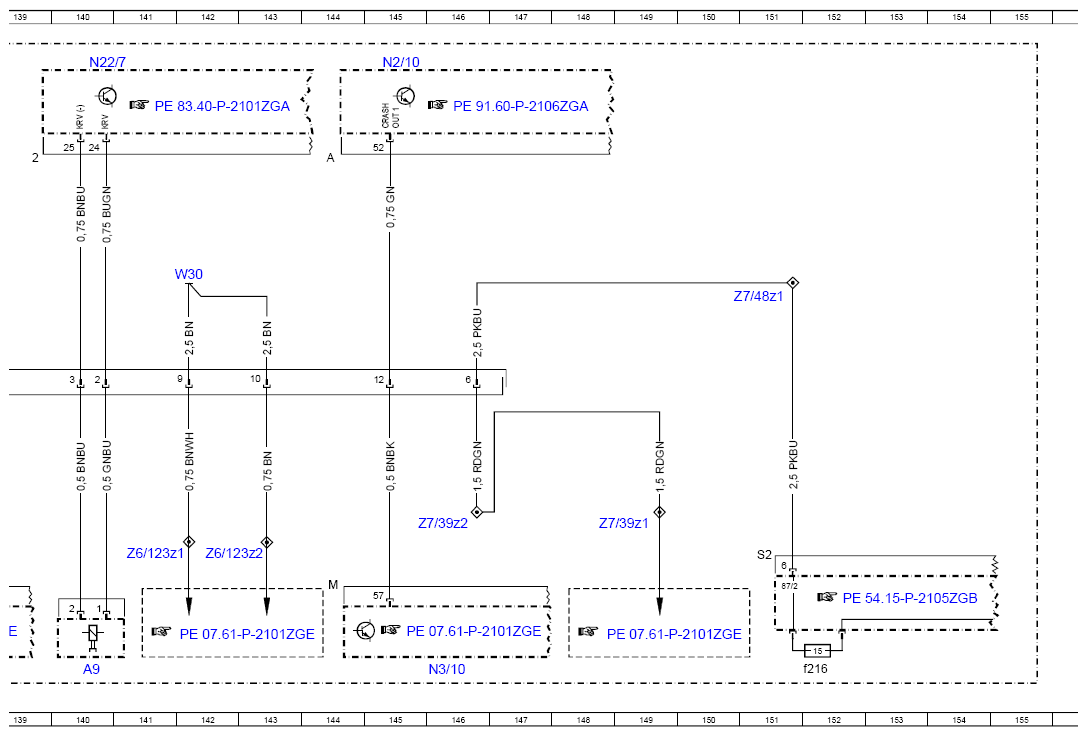

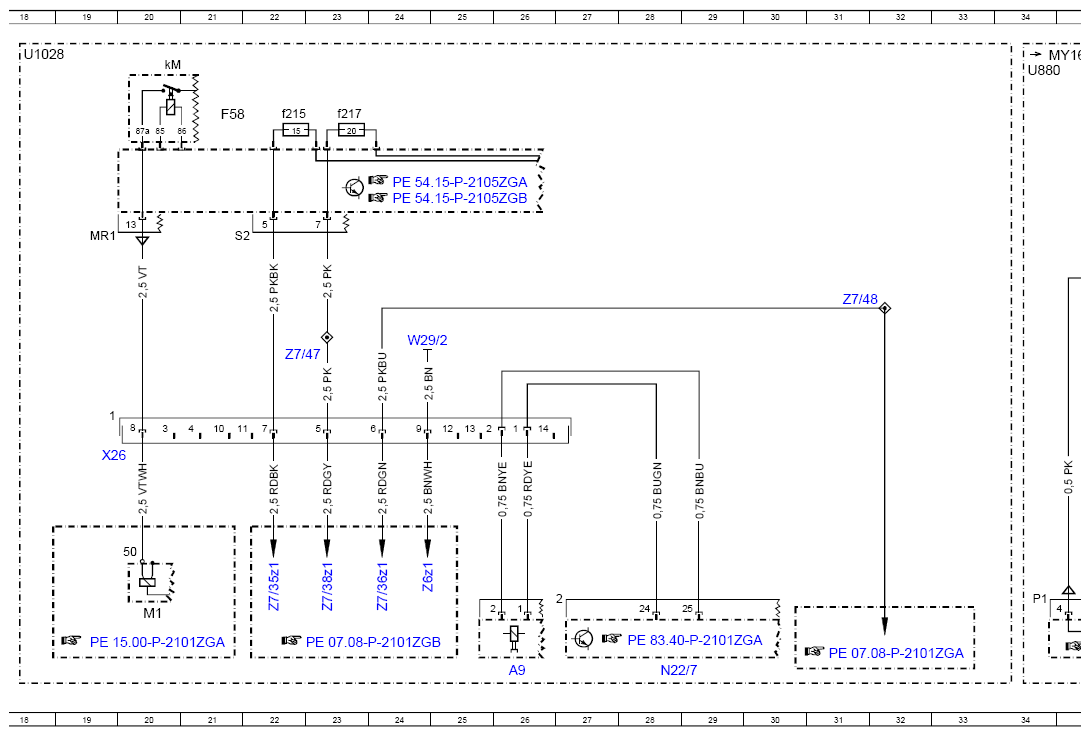

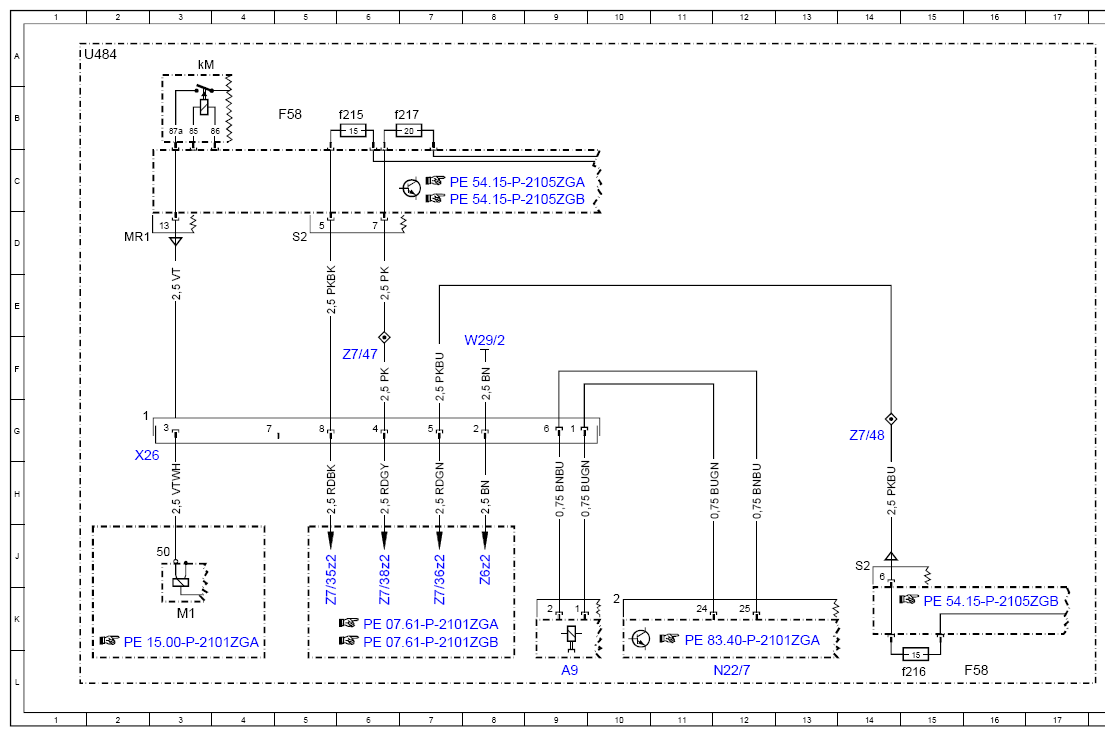

| X26 | Interior and engine wiring harness electrical connector | 2G |
| X26 | Interior and engine wiring harness electrical connector | 19G |
| X26 | Interior and engine wiring harness electrical connector | 100G |
| X26 | Interior and engine wiring harness electrical connector | 143G |

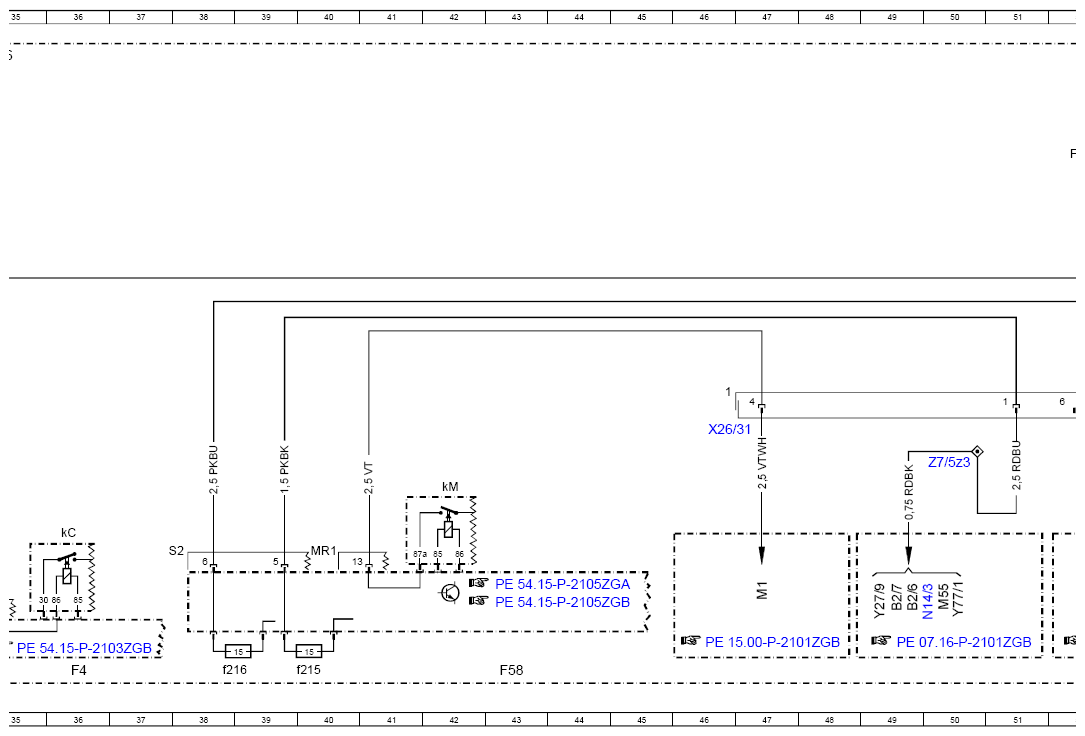

| X26/31 | Engine/engine compartment electrical connector | 46G |
| X26/31 | Engine/engine compartment electrical connector | 77G |

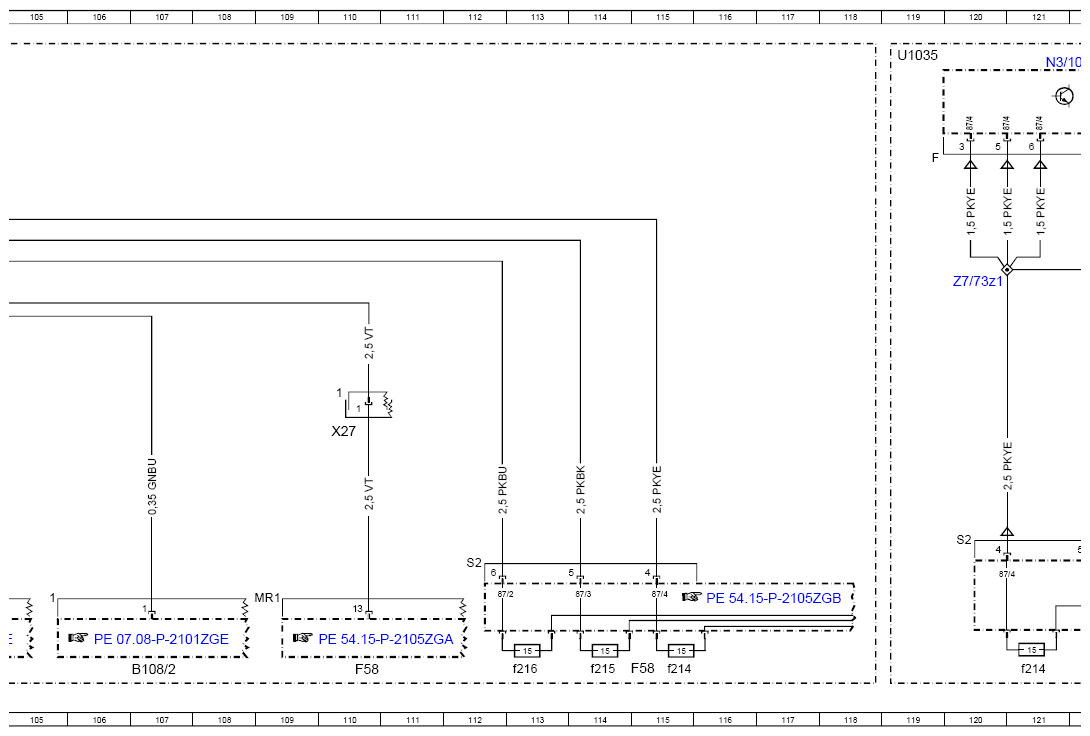

| X27 | Starter electrical connector | 126G |
| Y130 | Engine oil pump valve | 79J |
| Y133 | Coolant pump switchover valve | 87J |
| Y16/2 | Heating system shutoff valve | 105L |
| Y27/9 | Exhaust gas recirculation actuator | 49J |
| Y27/9 | Exhaust gas recirculation actuator | 58J |
| Y32/1 | Air pump switchover valve 1 | 147L |
| Y74 | Pressure regulator valve | 53J |
| Y74 | Pressure regulator valve | 84J |
| Y77/1 | Boost pressure control pressure transducer | 50J |
| Y77/1 | Boost pressure control pressure transducer | 58J |
| Y77/1 | Boost pressure control pressure transducer | 81J |
| Y77/1 | Boost pressure control pressure transducer | 89J |
| Y85 | Exhaust gas recirculation cooler bypass switchover valve | 57J |
| Y85 | Exhaust gas recirculation cooler bypass switchover valve | 87J |
| Y94 | Quantity control valve | 53J |
| Y94 | Quantity control valve | 83J |
| Z255/1 | Right cylinder bank ignition coil ground line connector sleeve 1 | 110K |
| Z255/2 | Left cylinder bank ignition coil ground line connector sleeve 1 | 111K |
| Z6 | Circuit 31 connector sleeve | 58J |
| Z6 | Circuit 31 connector sleeve | 89J |
| Z6/123z1 | Left cylinder bank ignition coil ground line connector sleeve 2 | 157J |
| Z6/123z2 | Right cylinder bank ignition coil ground line connector sleeve 2 | 158J |
| Z6z1 | Circuit 31 connector sleeve | 24J |
| Z6z2 | Circuit 31 connector sleeve | 8J |
| Z7/35z1 | Circuit 87 M1e connector sleeve | 22J |
| Z7/35z2 | Circuit 87 M1e connector sleeve | 5J |
| Z7/36z1 | Circuit 87 M2e connector sleeve | 23J |
| Z7/36z2 | Circuit 87 M2e connector sleeve | 7J |
| Z7/38z1 | Circuit 87 M1i connector sleeve | 23J |
| Z7/38z1 | Circuit 87 M1i connector sleeve | 143J |
| Z7/38z2 | Circuit 87 M1i connector sleeve | 6J |
| Z7/38z2 | Circuit 87 M1i connector sleeve | 144J |
| Z7/39z1 | Circuit 87 M2i connector sleeve | 165J |
| Z7/39z2 | Circuit 87 M2i connector sleeve | 150G |
| Z7/39z2 | Circuit 87 M2i connector sleeve | 162J |
| Z7/40z1 | Terminal 30 connector sleeve | 147H |
| Z7/41z1 | Sensor power supply connector sleeve | 145J |
| Z7/47 | Circuit 87D1 connector sleeve | 6F |
| Z7/47 | Circuit 87D1 connector sleeve | 22F |
| Z7/47 | Circuit 87D1 connector sleeve | 53E |
| Z7/47 | Circuit 87D1 connector sleeve | 83E |
| Z7/47 | Circuit 87D1 connector sleeve | 139E |
| Z7/48 | Circuit 87D2 connector sleeve | 31E |
| Z7/48 | Circuit 87D2 connector sleeve | 56E |
| Z7/48 | Circuit 87D2 connector sleeve | 14G |
| Z7/48 | Circuit 87D2 connector sleeve | 86E |
| Z7/48z1 | Circuit 87/2 connector sleeve | 105G |
| Z7/48z1 | Circuit 87/2 connector sleeve | 108K |
| Z7/48z1 | Circuit 87/2 connector sleeve | 166E |
| Z7/5z1 | Circuit 87 connector sleeve | 53J |
| Z7/5z1 | Circuit 87 connector sleeve | 83J |
| Z7/5z2 | Circuit 87 connector sleeve | 56J |
| Z7/5z2 | Circuit 87 connector sleeve | 86J |
| Z7/5z3 | Circuit 87 connector sleeve | 50H |
| Z7/5z3 | Circuit 87 connector sleeve | 81H |
| Z7/73 | Circuit 87 D4 connector sleeve | 106K |
| Z7/73z1 | Circuit 87M connector sleeve | 136E |
| Z7/75 | Circuit 87/3 connector sleeve | 107K |
