Remove/Install Park Pawl Capacitor - AR54.10-P-1126XG

Model 463

as of Model year 2019

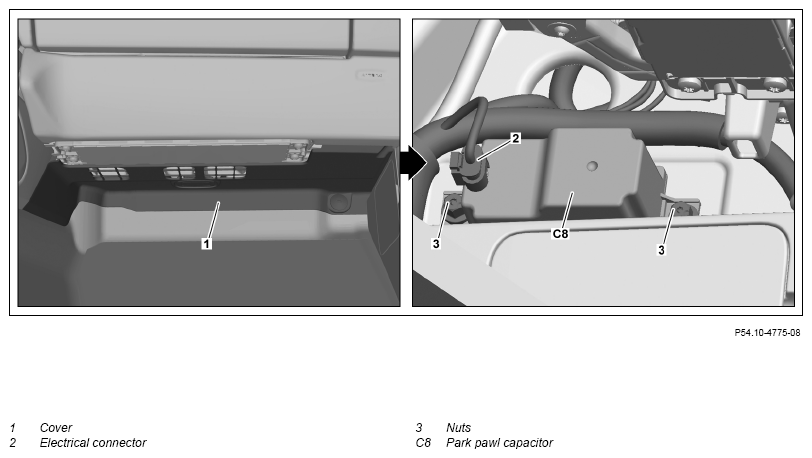

Fig 1: Park Pawl Capacitor Components Location - Model 463 As Of Model Year 2019

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Switch off ignition and store transmitter key outside of transmitter range (at least 2 m).
2	Remove trim (1) below instrument panel on front passenger side.		AR68.10-P-1502XG
3	Disconnect electrical connector (2).
4	Remove nuts (3).
5	Remove park pawl capacitor (C8).
6	Install in reverse order.
