Remove/Install Park Pawl Battery - AR54.10-P-0121GW
Model 463
as of Model year 2013 up to Model year 2019
with code MJ7 (ECO start/stop function)

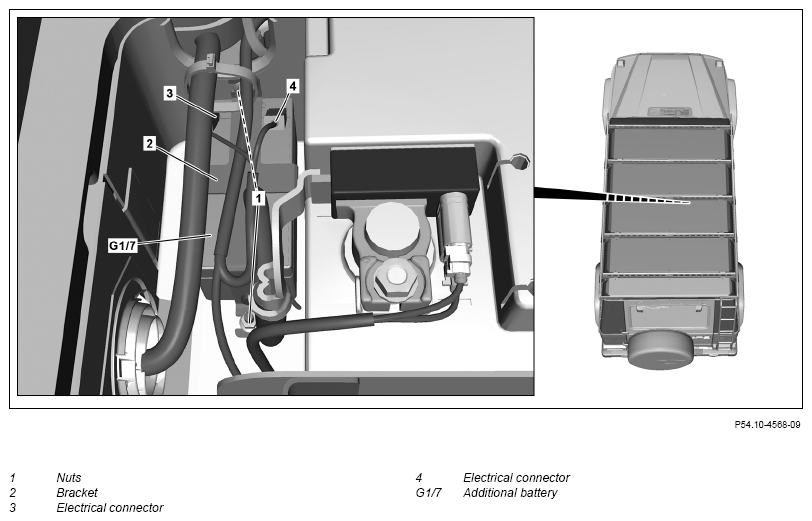

Fig 1: Park Pawl Battery Components Location - Model 463 As Of Model Year 2013 Up To Model Year 2019, With Code MJ7
| Risk of fire /risk of explosion due to short circuit and escaping oxyhydrogen gas. Risk of (burn) injury caused by caustic burns to eyes, skin and mucous membranes from battery electrolyte/mist, short circuit and arcing. Risk of poisoning caused by swallowing battery electrolyte or absorption of lead through the skin or body orifices. Risk of death due to voltage U >= 30V AC and U >= 60V DC. | No fires, sparks, open flames, or smoking. Wear acid-resistant gloves, clothing, and glasses. Pour battery acid only into suitable and appropriately marked containers. | AS54.10-Z-0001-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on battery | AH54.10-P-0001-01A | ||
| Remove/install | |||
| 1 | Remove on-board electrical system battery | AR54.10-P-0005GW | |
| 2 | Unscrew nuts (1) | ||
| 3 | Remove bracket (2) | ||
| 4 | Release and disconnect electrical connections (3, 4) | ||
| 5 | Remove additional battery (G1/7) | ||
| 6 | Install in the reverse order |
