Remove/Install PARKTRONIC (PTS) Front Parking Assist System Warning Indicator (In Dashboard) - AR54.65-P-0003GW

Model 463

as of Model year 2013 up to Model year 2019

with code EZ8 (PARKTRONIC Park Assist)

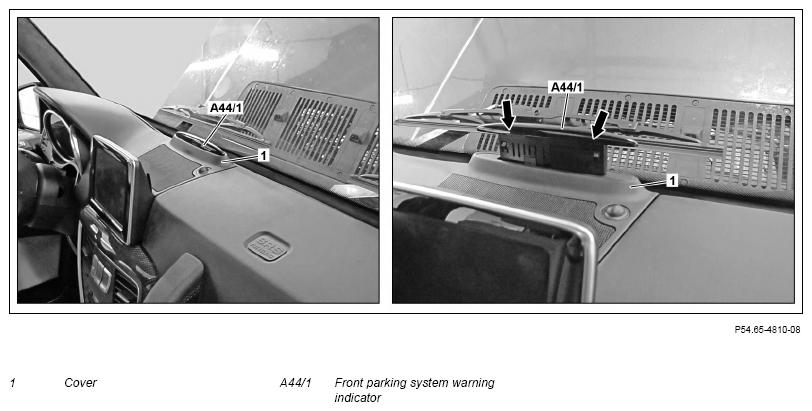

Fig 1: Front Parking Assist System (PARKTRONIC) Warning Indicator Components Location - Model 463 As Of Model Year 2013 Up To Model Year 2019 With Code EZ8

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Switch off ignition
2	Pry front parking system warning display (A44/1) carefully out of cover (1) in an upward direction	Protect instrument panel against scratches. Install the front parking system warning display (A44/1) so that the light-emitting diode indicators (arrows) point toward the vehicle interior.
		Long wedge	Fig 2
3	Disconnect electrical connector from parking system warning display (A44/1)
4	Install in the reverse order

Fig 2: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
