Disconnect/Connect Battery Ground Line - AR54.10-P-0003GW
Model 463 (except 463.234/236/241/242/248)
as of Model year 2013 up to Model year 2019
| Remove/install | |||
| Notes on battery | AH54.10-P-0001-01A | ||
| Risk of fire /risk of explosion due to short circuit and escaping oxyhydrogen gas. Risk of (burn) injury caused by caustic burns to eyes, skin and mucous membranes from battery electrolyte/mist, short circuit and arcing. Risk of poisoning caused by swallowing battery electrolyte or absorption of lead through the skin or body orifices. Risk of death due to voltage U >= 30V AC and U >= 60V DC. | No fires, sparks, open flames, or smoking. Wear acid-resistant gloves, clothing, and glasses. Pour battery acid only into suitable and appropriately marked containers. |
AS54.10-Z-0001-01A | |
| 1 | Remove cupholder | ||

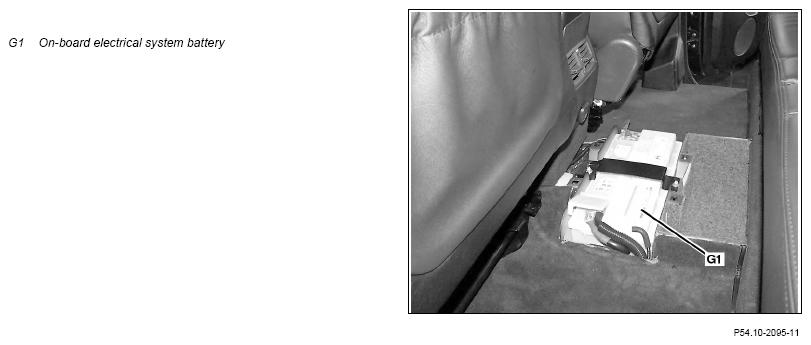

| 2 | Remove cover of on-board electrical system battery (G1) in rear footwell | ||
| 3 | Detach ground line from on-board electrical system battery (G1) | ||
| 4 | Install in the reverse order | ||
| 5 | Perform basic programming | Model 463 (except 463.234/236/241/242/248) as of Model year 2013 up to Model year 2019 | AR00.19-P-0200GW |
