Check Condition Of Battery - AR54.10-P-1129XG
Model 463
as of Model year 2019
| Risk of fire /risk of explosion due to short circuit and escaping oxyhydrogen gas. Risk of (burn) injury caused by caustic burns to eyes, skin and mucous membranes from battery electrolyte/mist, short circuit and arcing. Risk of poisoning caused by swallowing battery electrolyte or absorption of lead through the skin or body orifices. Risk of death due to voltage U >= 30V AC and U >= 60V DC. | No fires, sparks, open flames, or smoking. Wear acid-resistant gloves, clothing, and glasses. Pour battery acid only into suitable and appropriately marked containers. | AS54.10-Z-0001-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on battery | AH54.10-P-0001-01A | ||
| Remove | |||

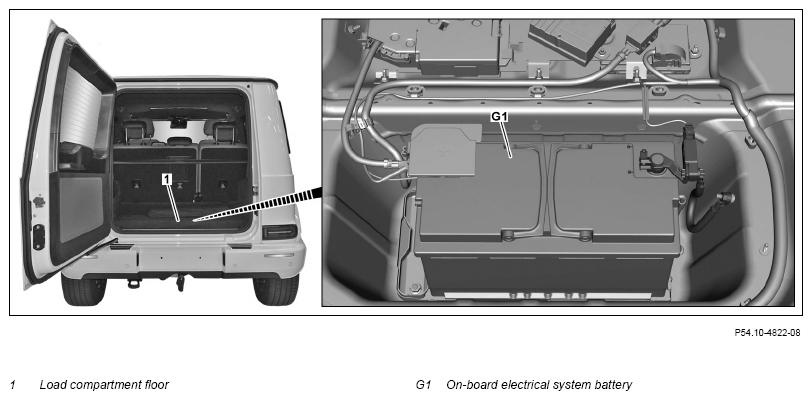

| 1 | Remove load compartment floor (1). | AR68.80-P-5800XG | |
| Check | |||
| 2 | Carry out visual check for external leakage on on-board electrical system battery (G1). | If leaks are present on the on-board electrical system battery (G1): ↓ Replace on-board electrical system battery (G1). |
|
| AR54.10-P-0005XG | |||
| 3 | Check on-board electrical system battery (G1) | AR54.10-P-1129-01A | |
| 000 588 02 19 00 Battery tester | WS54.00-N-3006B | ||
| Battery capacity 92 Ah VRLA/AGM | *BE54.10-P-1021-01A | ||
| 4 | Reduce increased voltage after charging process. | For an on-board electrical system battery (G1) disconnected from the on-board electrical system and the "Surface voltage detected" message is shown in the battery test device display. | |
| 000 588 03 19 00 Load tester | WS15.00-P-0027B | ||
| AR54.10-P-1129-03A | |||
| 5 | Check on-board electrical system battery (G1) again. | After reduction of increased voltage after charging. | AR54.10-P-1129-01A |
| 000 588 02 19 00 Battery tester | WS54.00-N-3006B | ||
| Battery capacity 92 Ah VRLA/AGM | *BE54.10-P-1021-01A | ||
| 6 | Charge on-board electrical system battery (G1). | If a "Charge and check" message is shown on the display of the battery test device. | |
| AR54.10-P-1130XG | |||
| Install | |||
| 7 | Install load compartment floor (1). | AR68.80-P-5800XG |
TEST AND ADJUSTMENT VALUES FOR BATTERY
| Number | Designation | Model all (4xWD, CAR, smart) | |||
|---|---|---|---|---|---|
| BE54.10-P-1021-01A | Battery capacity 92 Ah VRLA/AGM | Cold cranking amps | As per EN | A | 850 |
