Charge Battery - AR54.10-P-1130XG
Model 463
as of Model year 2019
| Risk of fire /risk of explosion due to short circuit and escaping oxyhydrogen gas. Risk of (burn) injury caused by caustic burns to eyes, skin and mucous membranes from battery electrolyte/mist, short circuit and arcing. Risk of poisoning caused by swallowing battery electrolyte or absorption of lead through the skin or body orifices. Risk of death due to voltage U >= 30V AC and U >= 60V DC. | No fires, sparks, open flames, or smoking. Wear acid-resistant gloves, clothing, and glasses. Pour battery acid only into suitable and appropriately marked containers. | AS54.10-Z-0001-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on battery | AH54.10-P-0001-01A | ||
| Check | |||
| 1 | Check condition of on-board electrical system battery. | Not with active transport mode. | AR54.10-P-1129XG |
| Charging | |||
| 2 | Expose charging terminal point (2) of engine compartment pre-fuse box (F32/3) by moving the cover (1). | With on-board electrical system battery installed. | |
| 3.1 | Connect charger positive terminal (4) to charging terminal point (2) of engine compartment pre-fuse box (F32/3) and the charger ground clamp (5) to the ground terminal point (3). | With on-board electrical system battery installed. | |
Do not reverse polarity of connections. Damage caused by short circuits will otherwise occur. |
|||

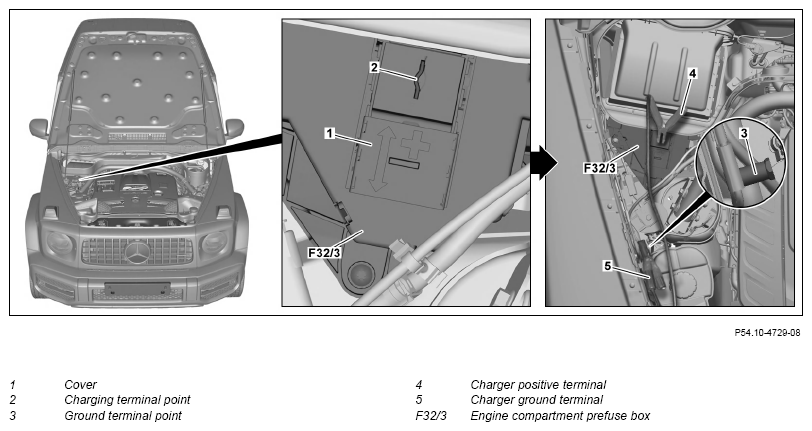

| Fig 1 | |||
| 3.2 | Connect charger to on-board electrical system battery. | With on-board electrical system battery removed. Do not reverse polarity of connections. Damage caused by short circuits will otherwise occur. |
|
| Fig 1 | |||
| 4 | Charge on-board electrical system battery | The battery charging period depends on the charge level of the on-board electrical system battery. The on-board electrical system battery is sufficiently charged when the displayed charging current is ≤ 5 A. |
|
| 5 | After completing work on the vehicle, switch off the charger and disconnect it. | Switch off charger before disconnecting it. There is otherwise a risk of spark formation. |
|
| 6 | Close charging terminal point (2) of engine compartment pre-fuse box (F32/3) by sliding the cover (1). | ||
| Check | |||
| 7 | Check condition of on-board electrical system battery. | Not with active transport mode. | AR54.10-P-1129XG |
