(Retrofit Warning Indicator - AN54.65-P-0010-01A)
MODEL 463 up to production date 11/30/00 Station wagon
COMMERCIALLY AVAILABLE TOOLS
| Number | Designation |
|---|---|
| WH58.30-Z-1003-34A | Step drill bit dia. 16-30.5 mm |
WORKSHOP EQUIPMENT
| WE58.40-Z-1001-03A | Drill (electric/pneumatic) |

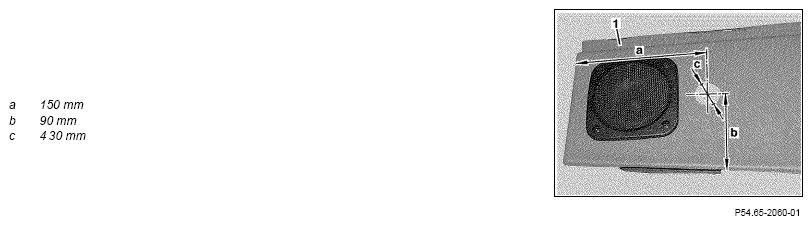

- Mark position of installation opening for BA [RFH] warning indicator (A44/1) on right rear pillar panel (1).
- Drill installation opening and deburr edges.
- Attach sticker (2) in center above installation opening.
- Install BA [RFH] warning indicator (A44/1) together with wiring harness.
- Route wiring harness below the headliner.
