Wiring Diagram Of Right A-Pillar Fuse Box - PE54.15-P-2517-97ZHA
Model 463 (except 463.342)
as of model year 2019
Prefuse box F1/3
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 96L |
| A1 | Instrument cluster | 13L |
| A105 | Touchpad | 68L |
| A2/18 | FM 1, AM, CL [ZV], DAB 1 antenna amplifier | 11L |
| A26/17 | Head unit | 48L |
| A28/15 | Cellular telephone system antenna amplifier/compensator | 53L |
| A40/11 | Mono multifunction camera | 52L |
| A40/9 | Audio/COMAND control panel | 60L |
| A6 | Stationary heater unit | 44L |
| A6/1 | Stationary heater radio remote control receiver | 71L |
| A76/1 | Right front reversible emergency tensioning retractor | 37L |
| A90/5 | Multimedia connection unit | 42L |
| A98/1 | Sliding roof control module | 36L |
| B38/2 | Rain and light sensor with extended function | 30L |
| Code 524L | RUSSIA | 17J |
| Code 524L | RUSSIA | 16J |
| Code E07 | POSITIONING AND TRACKING SYSTEM | 17J |
| Code E07 | POSITIONING AND TRACKING SYSTEM | 16J |
| Code EH6 | Multifunction telephony | 53J |
| Code EK1 | HERMES LTE communications module | 33J |
| Code EK2 | HERMES - UMTS Russia communications module | 33J |
| Code EM2 | HERMES UMTS communications module | 33J |
| Code EU4 | COMAND Online | 60J |
| Code F15 | Glass electric sliding roof | 36J |
| Code H10 | Driver and front passenger seat heater | 31J |
| Code H12 | Stationary heater | 44J |
| Code H12 | Stationary heater | 71J |
| Code L | LEFT-HAND DRIVE | 19J |
| Code M177 | V8 spark-ignition engine M177 - AMG | 40J |
| Code PA9 | SEAT COMFORT PACKAGE PLUS | 54J |
| Code PA9 | SEAT COMFORT PACKAGE PLUS | 54H |
| Code R | RIGHT-HAND DRIVE | 20J |

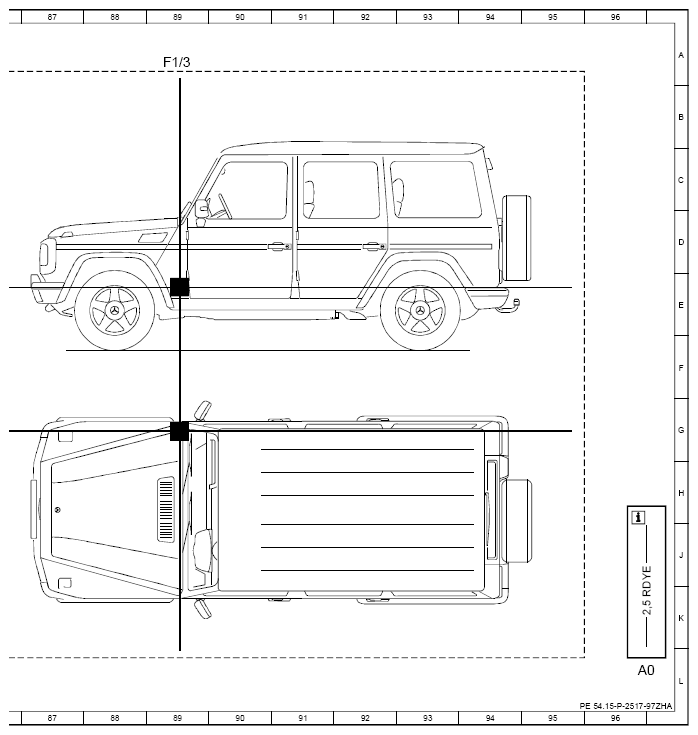

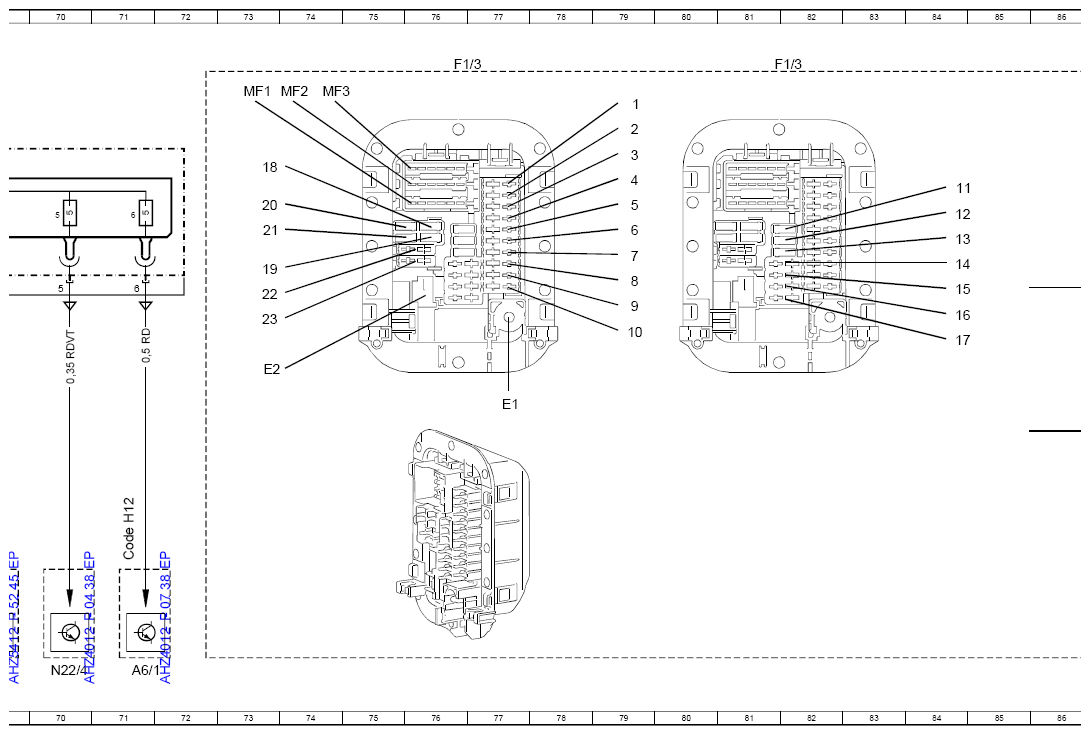

| F1/3 | Right A-pillar fuse box | 4A |
| F1/3 | Right A-pillar fuse box | 12A |
| F1/3 | Right A-pillar fuse box | 20A |
| F1/3 | Right A-pillar fuse box | 27A |
| F1/3 | Right A-pillar fuse box | 36A |
| F1/3 | Right A-pillar fuse box | 44A |
| F1/3 | Right A-pillar fuse box | 52A |
| F1/3 | Right A-pillar fuse box | 60A |
| F1/3 | Right A-pillar fuse box | 68A |
| F1/3 | Right A-pillar fuse box | 76A |
| F1/3 | Right A-pillar fuse box | 82A |
| F1/3 | Right A-pillar fuse box | 89A |

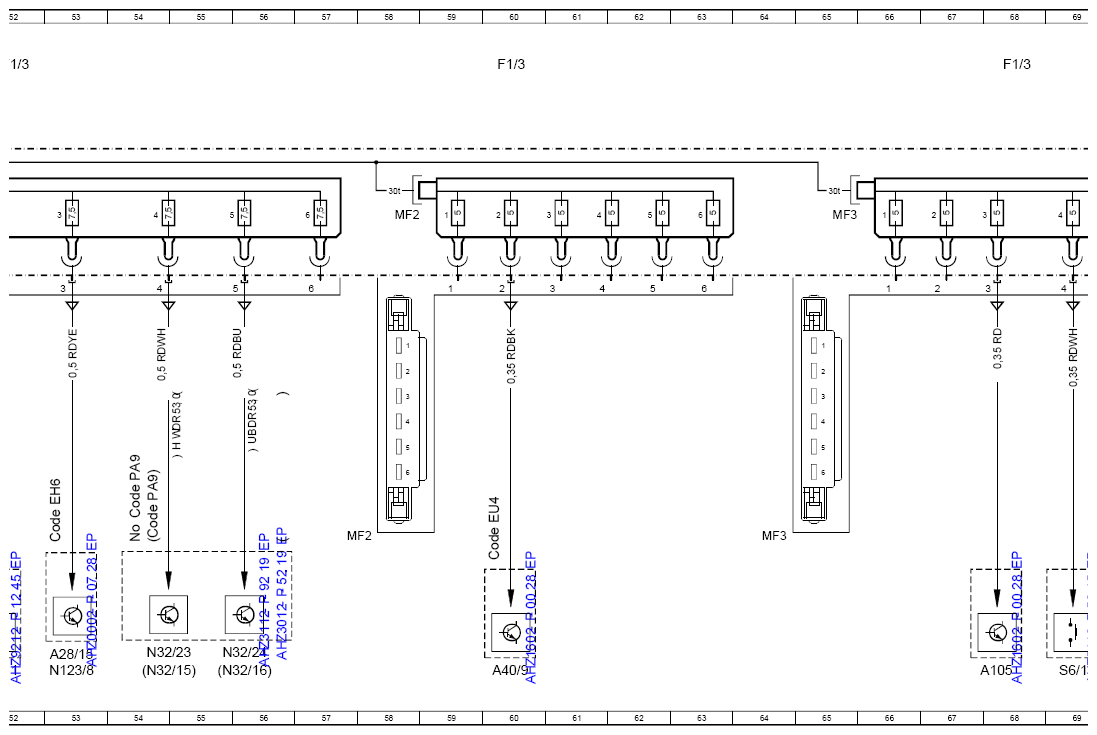

| F1/3MF1 | Multiple fuse 1 | 50D |
| F1/3MF2 | Multiple fuse 2 | 58D |
| F1/3MF3 | Multiple fuse 3 | 65D |

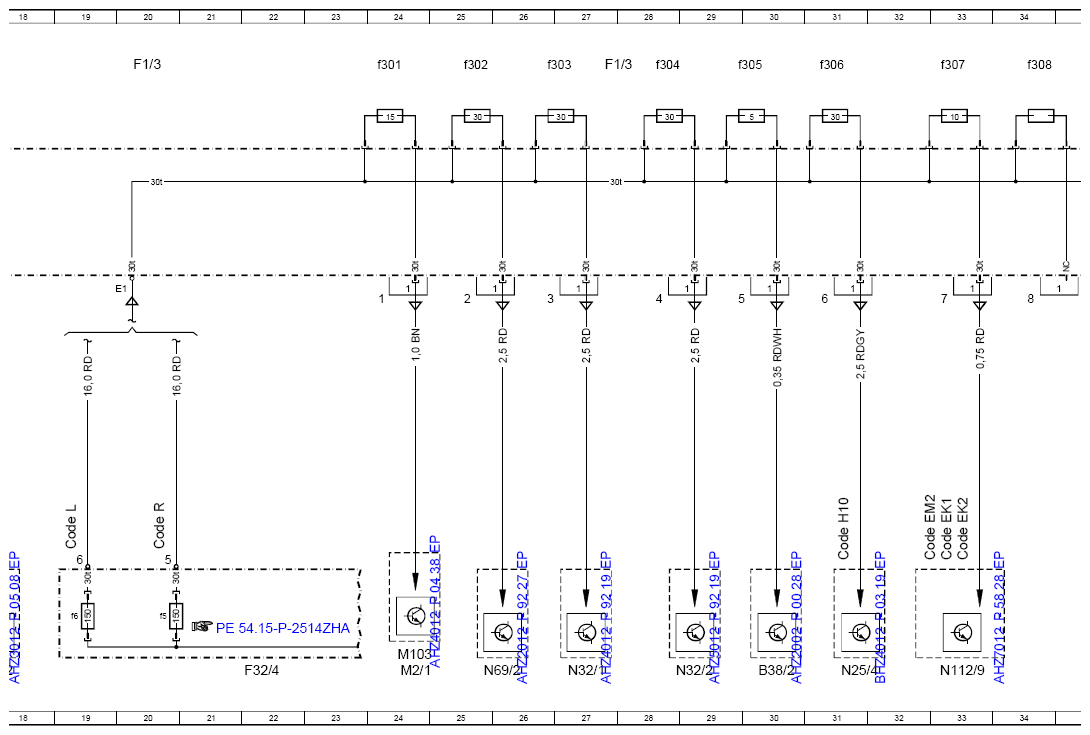

| F1/3f301 | Fuse 301 | 24A |
| F1/3f302 | Fuse 302 | 25A |
| F1/3f303 | Fuse 303 | 26A |
| F1/3f304 | Fuse 304 | 28A |
| F1/3f305 | Fuse 305 | 30A |
| F1/3f306 | Fuse 306 | 31A |
| F1/3f307 | Fuse 307 | 33A |
| F1/3f308 | Fuse 308 | 34A |
| F1/3f309 | Fuse 309 | 35A |

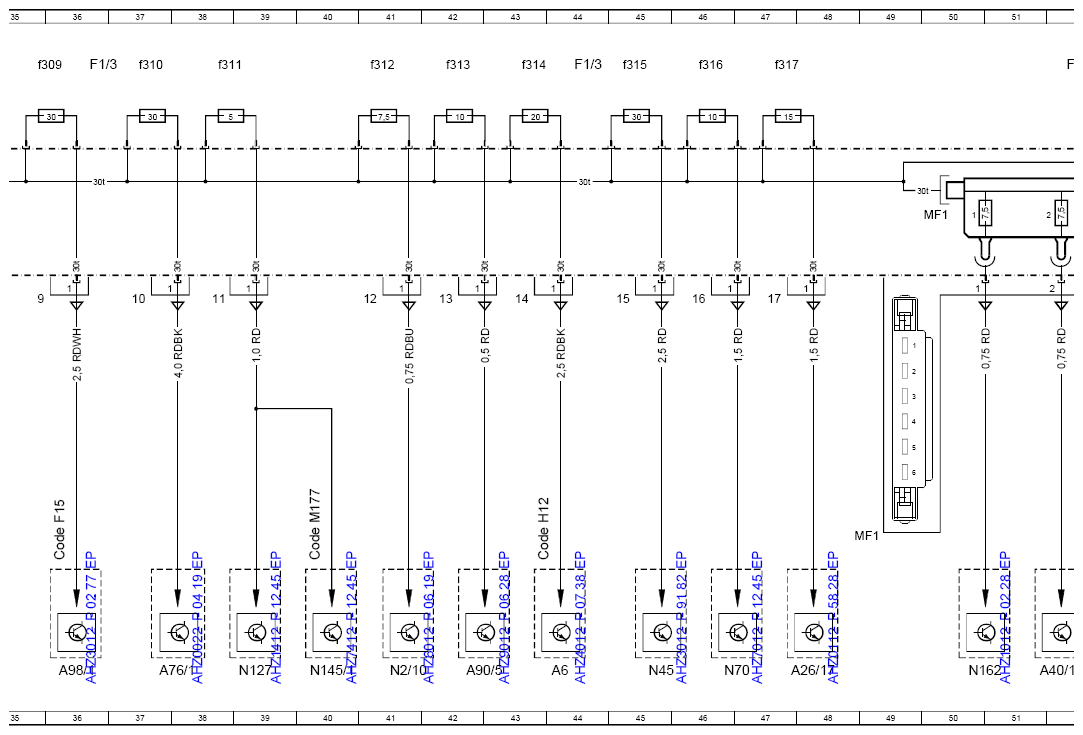

| F1/3f310 | Fuse 310 | 37A |
| F1/3f311 | Fuse 311 | 38A |
| F1/3f312 | Fuse 312 | 41A |
| F1/3f313 | Fuse 313 | 42A |
| F1/3f314 | Fuse 314 | 43A |
| F1/3f315 | Fuse 315 | 45A |
| F1/3f316 | Fuse 316 | 46A |
| F1/3f317 | Fuse 317 | 47A |

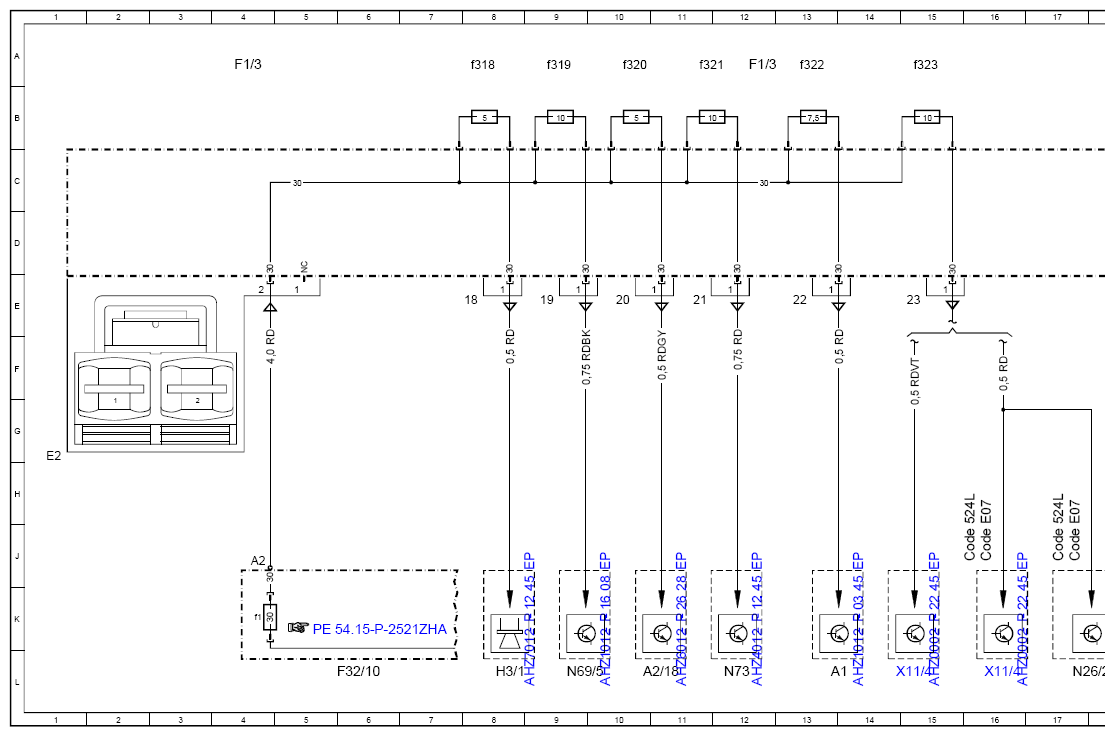

| F1/3f318 | Fuse 318 | 8A |
| F1/3f319 | Fuse 319 | 9A |
| F1/3f320 | Fuse 320 | 10A |
| F1/3f321 | Fuse 321 | 11A |
| F1/3f322 | Fuse 322 | 13A |
| F1/3f323 | Electrical fuse 323 | 15A |
| F32/10 | Starter battery prefuse box | 6L |
| F32/10f1 | Fuse 1 | 4K |
| F32/4 | Vehicle interior prefuse box | 22L |
| F32/4f5 | Fuse 5 | 20K |
| F32/4f6 | Fuse 6 | 19K |
| H3/1 | Alarm siren | 8L |
| M103 | Rear air conditioning blower motor | 24L |
| M2/1 | Rear blower motor | 24L |
| N112/9 | HERMES control unit | 33L |
| N123/8 | Mobile phone cradle control unit | 53L |
| N127 | Drivetrain control unit | 39L |
| N145/1 | Drive unit control unit | 40L |
| N162 | Ambiance illumination control unit | 50L |
| N2/10 | Supplemental restraint system control unit | 41L |
| N22/4 | Rear AC control unit | 70L |
| N25/4 | Front passenger seat heater control unit | 31L |
| N26/2 | Theft detection system control unit | 17L |
| N32/1 | Driver seat control unit | 27L |
| N32/15 | Left front multicontour seat control unit | 54L |
| N32/16 | Right front multicontour seat control unit | 55L |
| N32/2 | Front passenger seat control unit | 29L |
| N32/23 | Driver seat lumbar support adjustment control unit | 54L |
| N32/24 | Front passenger seat lumbar support adjustment control unit | 56L |
| N45 | All-wheel drive control unit | 45L |
| N69/2 | Right front door control unit | 26L |
| N69/5 | KEYLESS-GO control unit | 9L |
| N70 | Overhead control panel control unit | 46L |
| N73 | Electronic ignition switch control unit | 12L |
| S6/1 | Driver-side instrument panel button group | 69L |
| X11/4 | Diagnostic connector | 16L |
| X11/4 | Diagnostic connector | 15L |
