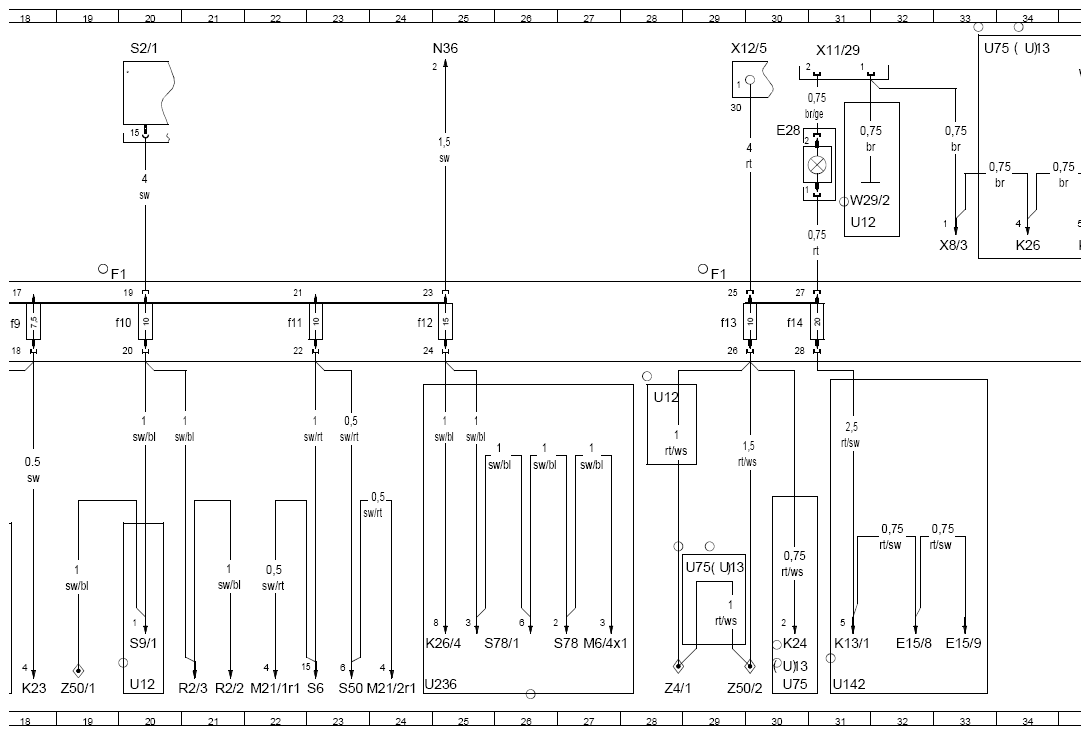

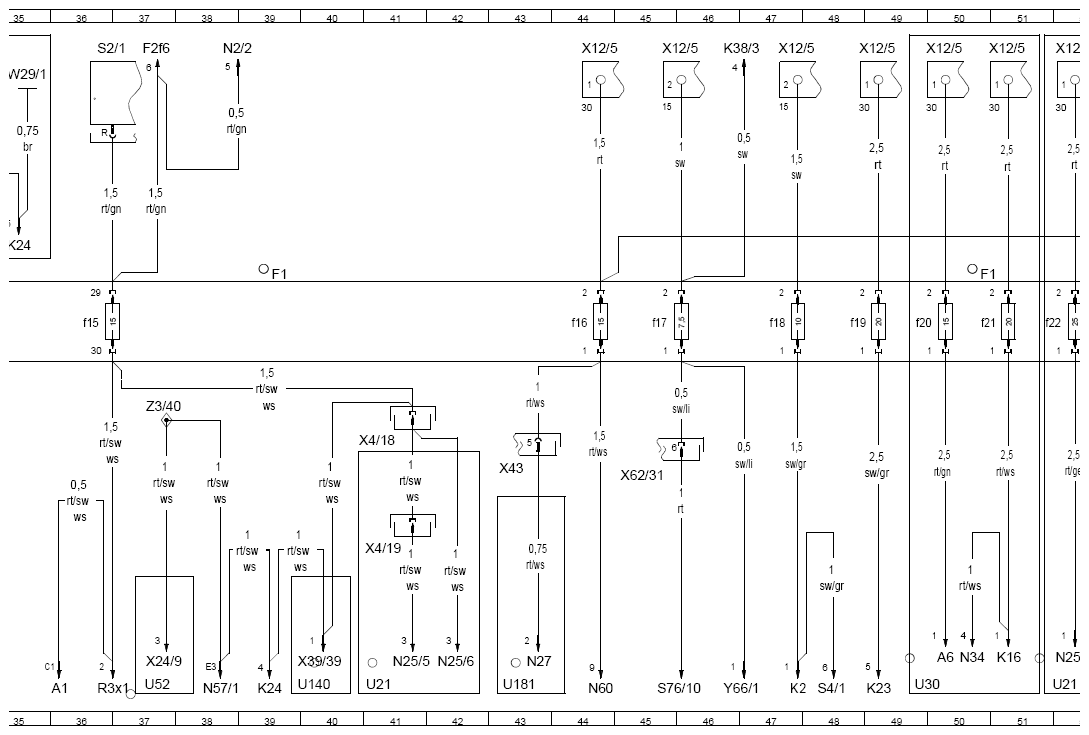

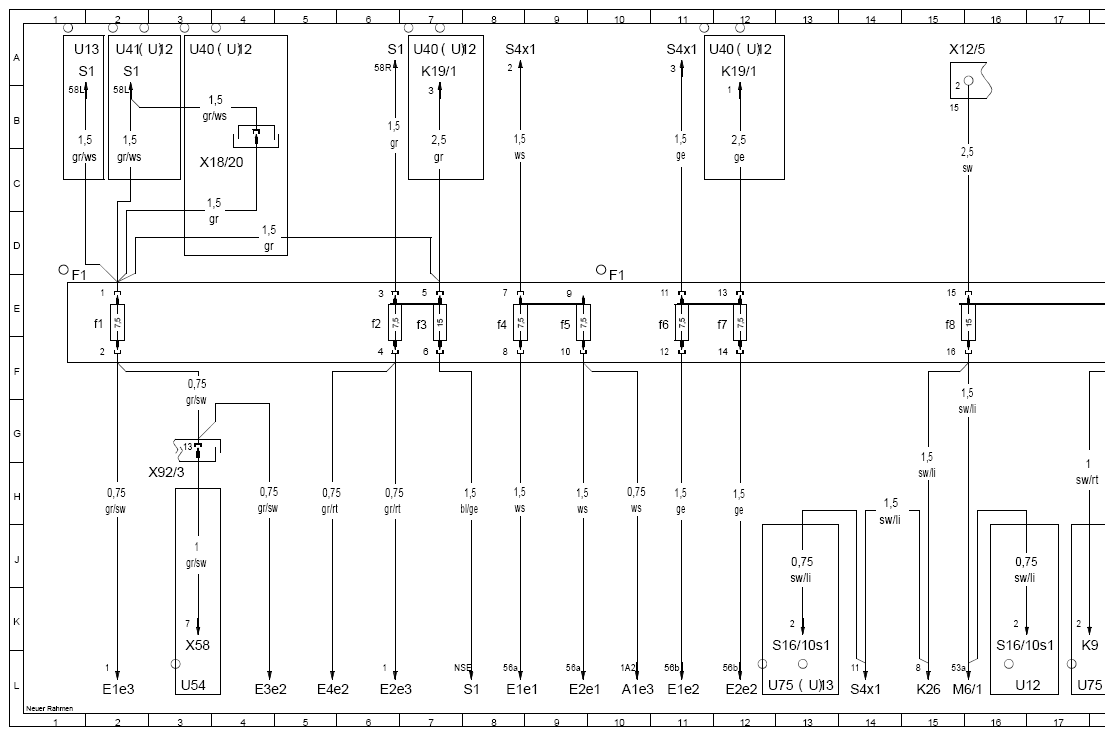

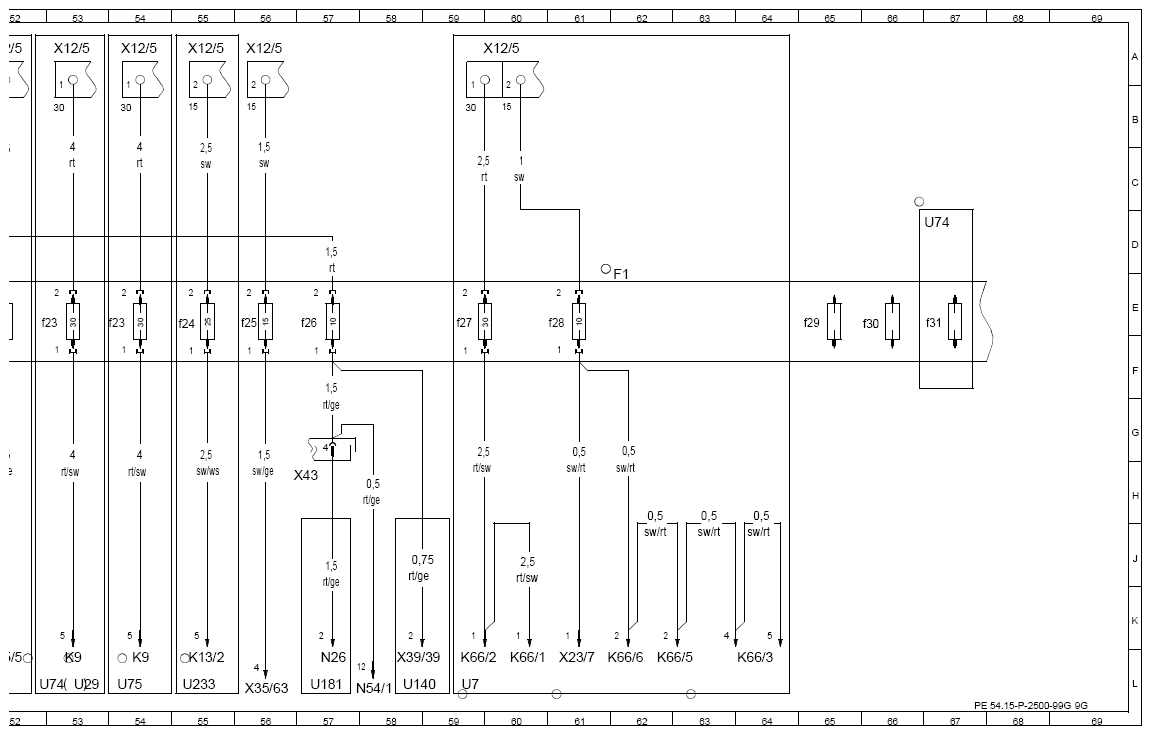

Wiring Diagram Of Fuse Box (F1) - PE54.15-P-2500-99G
MODEL 463 as of 1.6.99 up to 31.5.12
| Code: | Designation: | Position: |
|---|---|---|
| A1 | Instrument cluster | 50Q |
| A1e3 | High beam indicator lamp | 14Q |
| A6 | STH and heater booster unit | 70P |
| E15/8 | Left rear dome lamp | 45P |
| E15/9 | Right rear dome lamp | 46P |
| Ele1 | High beam | 11Q |
| E1e2 | Low beam | 15Q |
| E1e3 | Standing and parking lamp | 2Q |
| E28 | Test lamp (fuses) | 42C |
| E2e1 | High beam | 13Q |
| E2e2 | Low beam | 16Q |
| E2e3 | Standing and parking lamp | 9Q |
| E3e2 | Tail and parking lamp | 6Q |
| E4e2 | Tail/parking lamp | 7Q |
| F1 | Fuse box | 27F |
| F1 | Fuse box | 55F |
| F1 | Fuse box | 87F |
| F1 | Fuse box | 71F |
| F1 | Fuse box | 41F |
| F1 | Fuse box | 14F |
| F1 | Fuse box | 2F |
| F1f1 | Fuse 1 | 2E |
| F1f10 | Fuse 10 | 20E |
| F1f11 | Fuse 11 | 22E |
| F1f12 | Fuse 12 | 25E |
| F1f13 | Fuse 13 | 29E |
| F1f14 | Fuse 14 | 30E |
| F1f15 | Fuse 15 | 36E |
| F1f16 | Fuse 16 | 44E |
| F1f17 | Fuse 17 | 45E |
| F1f18 | Fuse 18 | 47E |
| F1f19 | Fuse 19 | 48E |
| F1f2 | Fuse 2 | 6E |
| F1f20 | Fuse 20 | 50E |
| F1f21 | Fuse 21 | 51E |
| F1f22 | Fuse 22 | 52E |
| F1f23 | Fuse 23 | 53E |
| F1f23 | Fuse 23 | 54E |
| F1f24 | Fuse 24 | 55E |
| F1f25 | Fuse 25 | 56E |
| F1f26 | Fuse 26 | 57E |
| F1f27 | Fuse 27 | 59E |
| F1f28 | Fuse 28 | 61E |
| F1f29 | Fuse 29 | 65E |
| F1f3 | Fuse 3 | 7E |
| F1f30 | Fuse 30 | 66E |
| F1f31 | Fuse 31 | 67E |
| F1f4 | Fuse 4 | 8E |
| F1f5 | Fuse 5 | 9E |
| F1f6 | Fuse 6 | 11E |
| F1f7 | Fuse 7 | 12E |
| F1f8 | Fuse 8 | 15E |
| F1f9 | Fuse 9 | 18E |
| F2f6 | Fuse 6 | 52A |
| K13/1 | Rear window defroster relay module | 44P |
| K13/2 | Heated windshield relay module | 77P |
| K16 | Stationary heater relay module (terminal 15/30) | 71P |
| K19/1 | Separation relay module (circuit 56/56b, daytime running lamps) | 10B |
| K19/1 | Separation relay module (circuit 56/56b, daytime running lamps) | 16B |
| K2 | HCS [SRA] relay module | 67Q |
| K23 | Blower motor relay | 25Q |
| K23 | Blower motor relay | 68Q |
| K24 | CF [KFB] relay module | 49F |
| K24 | CF [KFB] relay module | 42P |
| K24 | CF [KFB] relay module | 55Q |
| K26 | Wiper system relay module | 48F |
| K26 | Wiper system relay module | 21Q |
| K26/4 | Rear wiper system relay | 34P |
| K38/3 | Starter lock-out relay module | 65A |
| K66/1 | Electric soft top down relay | 85P |
| K66/2 | Electric soft top up relay | 83P |
| K66/3 | Electric soft top parking brake recognition relay | 90P |
| K66/5 | Left front soft top locking relay | 88P |
| K66/6 | Right front soft top locking relay | 87P |
| K9 | Auxiliary fan relay module (stage 1 and 2) | 75P |
| K9 | Auxiliary fan relay module (stage 1 and 2) | 24P |
| K9 | Auxiliary fan relay module (stage 1 and 2) | 76P |
| M21/1r1 | Mirror heater | 30Q |
| M21/2r1 | Mirror heater | 33Q |
| M6/1 | Wiper motor | 22Q |
| M6/4x1 | Rear window wiper motor connector | 38P |
| N2/2 | ETR [GUS] control module with airbag (AB) | 54A |
| N25/5 | Front HS [SIH] control module | 73P |
| N25/5 | Front HS [SIH] control module | 58P |
| N25/6 | Rear HS [SIH] control module | 59P |
| N26 | ATA [EDW] control module | 80P |
| N27 | Towing sensor control module | 61P |
| N34 | Stationary heater timer | 71P |
| N36 | Transmission output speed sensor ballast | 35A |
| N54/1 | IR DAS [IR FBS] control module | 81Q |
| N57/1 | Convenience feature control module | 54Q |
| N60 | CL [ZV] control module | 62Q |
| R2/2 | Left heated windshield washer nozzle | 30Q |
| R2/3 | Right heated windshield washer nozzle | 29Q |
| R3x1 | Cigar lighter connector | 51Q |
| S1 | Exterior lamp switch | 3B |
| S1 | Exterior lamp switch | 11Q |
| S1 | Exterior lamp switch | 9A |
| S1 | Exterior lamp switch | 2B |
| S16/10s1 | Reverse lamp switch | 23P |
| S16/10s1 | Reverse lamp switch | 17P |
| S2/1 | Ignition/starter switch | 51A |
| S2/1 | Ignition/starter switch | 28A |
| S4/1 | HCS [SRA] switch | 67Q |
| S4x1 | Combination switch connector | 19Q |
| S4x1 | Combination switch connector | 15A |
| S4x1 | Combination switch connector | 11A |
| S50 | Outside rearview mirror adjustment switch | 32Q |
| S6 | Hazard flasher/CL [ZV] switch group | 32Q |
| S76/10 | Road/neutral/off-road switch | 64Q |
| S78 | Rear window wiper/washer switch | 37P |
| S78/1 | Rear window wiper switch I. Continuous wipe II. Intermittent wipe | 36P |
| S9/1 | Stop lamp switch (4-pin) | 28P |
| U12 | Valid for left-hand steering | 3A |
| U12 | Valid for left-hand steering | 5A |
| U12 | Valid for left-hand steering | 17A |
| U12 | Valid for left-hand steering | 40J |
| U12 | Valid for left-hand steering | 44E |
| U12 | Valid for left-hand steering | 28Q |
| U12 | Valid for left-hand steering | 23Q |
| U12 | Valid for left-hand steering | 10A |
| U13 | Valid for right-hand steering | 48A |
| U13 | Valid for right-hand steering | 18Q |
| U13 | Valid for right-hand steering | 42P |
| U13 | Valid for right-hand steering | 41N |
| U13 | Valid for right-hand steering | 2A |
| U140 | Valid for portable cellular telephone | 82Q |
| U140 | Valid for portable cellular telephone | 56Q |
| U142 | Not valid for cabriolet | 44Q |
| U181 | Valid for ATA | 80Q |
| U181 | Valid for ATA | 60Q |
| U21 | Valid for seat heaters | 73Q |
| U21 | Valid for seat heaters | 57Q |
| U233 | Valid for rear window defroster | 77Q |
| U236 | Valid for rear wiper | 34Q |
| U29 | Valid for AAC [KLA] | 75Q |
| U30 | Valid for stationary heater | 70Q |
| U40 | Valid for daytime running lamps | 4A |
| U40 | Valid for daytime running lamps | 9A |
| U40 | Valid for daytime running lamps | 16A |
| U41 | Not valid for daytime running lamps | 3A |
| U52 | Valid for two-piece radio | 52Q |
| U54 | Valid for towing hitch | 4Q |
| U7 | Valid for convertible | 83Q |
| U74 | Valid for diesel engines | 74Q |
| U74 | Valid for diesel engines | 94E |
| U75 | Valid for gasoline engines | 24Q |
| U75 | Valid for gasoline engines | 76Q |
| U75 | Valid for gasoline engines | 47A |
| U75 | Valid for gasoline engines | 42Q |
| U75 | Valid for gasoline engines | 40N |
| U75 | Valid for gasoline engines | 17Q |
| W29/1 | Ground, left A-pillar | 49B |
| W29/2 | Ground (right A-pillar) | 44E |
| X11/29 | Fuse test connector | 43A |
| X12/5 | Terminal block, circuit 15/15R (FFS [RBA]) | 74A |
| X12/5 | Terminal block, circuit 15/15R (FFS [RBA]) | 21A |
| X12/5 | Terminal block, circuit 15/15R (FFS [RBA]) | 84A |
| X12/5 | Terminal block, circuit 15/15R (FFS [RBA]) | 79A |
| X12/5 | Terminal block, circuit 15/15R (FFS [RBA]) | 77A |
| X12/5 | Terminal block, circuit 15/15R (FFS [RBA]) | 76A |
| X12/5 | Terminal block, circuit 15/15R (FFS [RBA]) | 73A |
| X12/5 | Terminal block, circuit 15/15R (FFS [RBA]) | 71A |
| X12/5 | Terminal block, circuit 15/15R (FFS [RBA]) | 70A |
| X12/5 | Terminal block, circuit 15/15R (FFS [RBA]) | 68A |
| X12/5 | Terminal block, circuit 15/15R (FFS [RBA]) | 66A |
| X12/5 | Terminal block, circuit 15/15R (FFS [RBA]) | 64A |
| X12/5 | Terminal block, circuit 15/15R (FFS [RBA]) | 62A |
| X12/5 | Terminal block, circuit 15/15R (FFS [RBA]) | 41A |
| X18/20 | Daytime running lamps connector | 5D |
| X23/7 | Soft top connector (Reed contact switch) | 86P |
| X24/9 | APS/radio connector (Japan) | 52P |
| X35/63 | Control module box/engine separation point | 79Q |
| X39/39 | Handy connector | 82P |
| X39/39 | Handy connector | 56P |
| X4/18 | Terminal block (circuit 15R) (1-pin) | 57K |
| X4/19 | Terminal block (circuit 15Z) (1-pin) | 57N |
| X43 | ATA [EDW]/central locking (CL [ZV]) connector | 80L |
| X43 | ATA [EDW]/central locking (CL [ZV]) connector | 60L |
| X58 | Trailer hitch socket (13-pin) | 4P |
| X62/31 | Differential lock connector | 63L |
| X8/3 | Rear wiper connector | 46F |
| X92/3 | Frame connector (22-pin) | 3L |
| Y66/1 | Reverse/parking lock valve | 65Q |
| Z3/40 | Circuit 15R connector sleeve (fused, F1f15) | 52J |
| Z4/1 | Circuit 30 connector sleeve (fused), convenience and rear dome lamp | 40Q |
| Z50/1 | Connector sleeve 1 | 26Q |
| Z50/2 | Connector sleeve 2 | 41Q |
