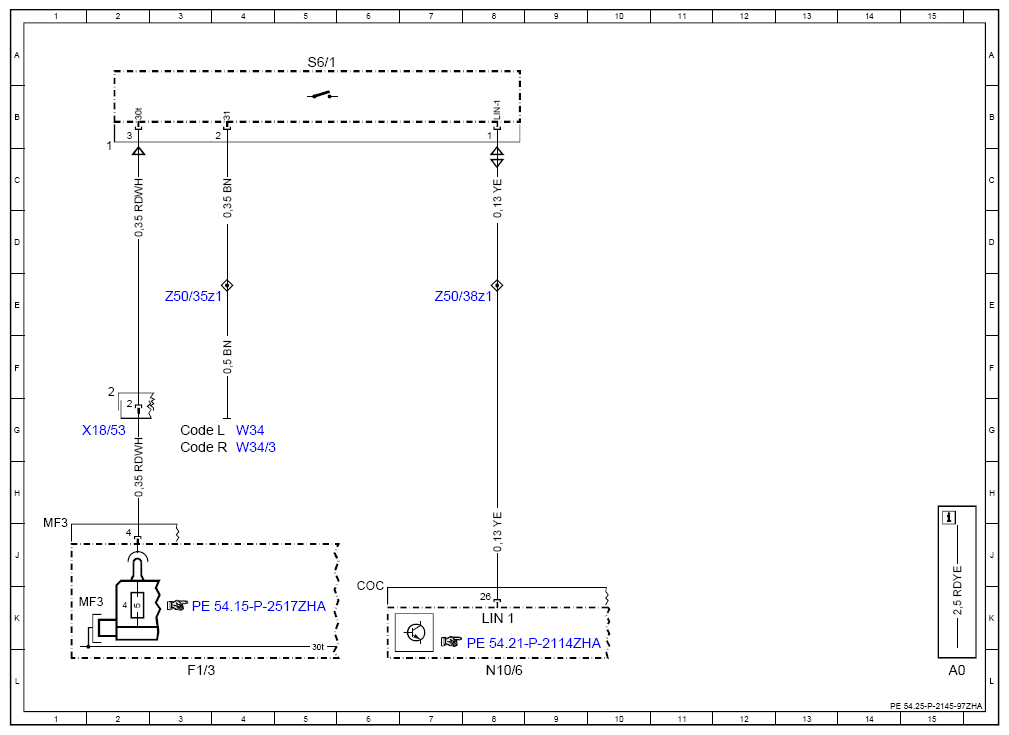

Wiring Diagram For Driver-Side Instrument Panel Button Group - PE54.25-P-2145-97ZHA
Model 463 (except 463.342) as of model year 2019 S6/1
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 15L |
| Code L | LEFT-HAND DRIVE | 3G |
| Code R | RIGHT-HAND DRIVE | 3G |
| F1/3 | Right A-pillar fuse box | 3L |
| F1/3MF3 | Multiple fuse 3 | 2K |
| LIN 1 | Instrument panel LIN | 8K |
| N10/6 | Front SAM control unit | 8l |
| S6/1 | Driver-side instrument panel button group | 5A |
| W34 | Left footwell ground point | 4G |
| W34/3 | Right footwell ground point | 4G |
| X18/53 | Driver side cockpit/frame floor assembly electrical connector | 2G |
| Z50/35z1 | Circuit 31 connector sleeve | 3E |
| Z50/38z1 | LIN 1 connector sleeve | 8E |
