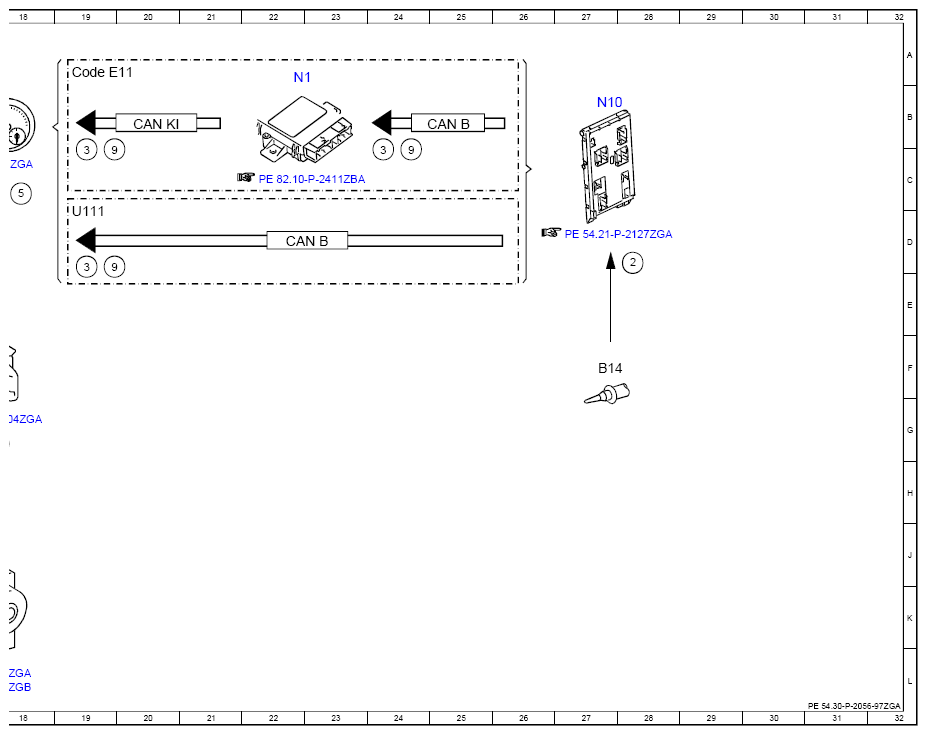

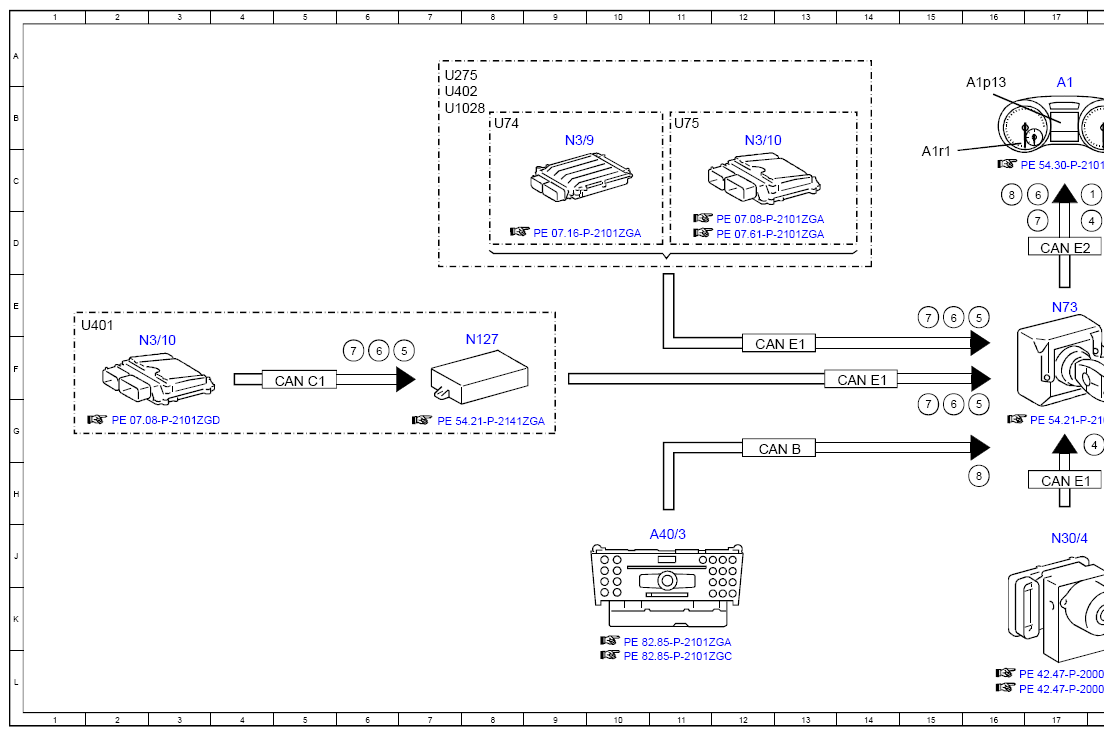

Electrical Function Schematic Of Instrument Cluster, Comfort Display - PE54.30-P-2056-97ZGA
Model 463 (except 463.342) as of model year 2013 up to model year 2019 Model 463.342
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 18C |
| 2 | Outside temperature sensor, signal | 28D |
| 3 | Outside temperature, signal | 19C |
| 3 | Outside temperature, signal | 19D |
| 3 | Outside temperature, signal | 24C |
| 4 | Wheel speed, signal | 18G |
| 4 | Wheel speed, signal | 18D |
| 5 | Coolant temperature, signal | 16E |
| 5 | Coolant temperature, signal | 18C |
| 5 | Coolant temperature, signal | 16G |
| 5 | Coolant temperature, signal | 7F |
| 6 | Engine running, signal | 15E |
| 6 | Engine running, signal | 17C |
| 6 | Engine running, signal | 15G |
| 6 | Engine running, signal | 6F |
| 7 | Drivetrain operational, signal | 15E |
| 7 | Drivetrain operational, signal | 17D |
| 7 | Drivetrain operational, signal | 15G |
| 7 | Drivetrain operational, signal | 6F |
| 8 | Time synchronization, signal | 16H |
| 8 | Time synchronization, signal | 16C |
| 9 | Circuit 58, status | 19C |
| 9 | Circuit 58, status | 19D |
| 9 | Circuit 58, status | 24C |
| A1 | Instrument cluster | 17B |
| A1p13 | Multifunction display | 16B |
| A1r1 | Instrument illumination brightness control | 15C |
| A40/3 | COMAND control unit | 11J |
| B14 | Outside temperature sensor | 27F |
| CAN B | Interior CAN | 12G |
| CAN B | Interior CAN | 22D |
| CAN B | Interior CAN | 25B |
| CAN C1 | Engine CAN | 5F |
| CAN E1 | Chassis CAN 1 | 12F |
| CAN E1 | Chassis CAN 1 | 17H |
| CAN E1 | Chassis CAN 1 | 14F |
| CAN E2 | Chassis CAN 2 | 17D |
| CAN KI | Instrument cluster CAN | 20B |
| Code E11 | Stealth lights with convoy marking | 19A |
| N1 | Stealth lights control unit | 22A |
| N10 | SAM control unit | 27B |
| N127 | Drivetrain control unit | 8F |
| N3/10 | ME-SFI [ME] control unit | 12B |
| N3/10 | ME-SFI [ME] control unit | 3F |
| N3/9 | CDI control unit | 9B |
| N30/4 | Electronic Stability Program control unit | 17J |
| N73 | Electronic ignition switch control unit | 17E |
| U1028 | Valid for engine 157 | 7B |
| U111 | Not valid for code E11 (Stealth lights with convoy marking) | 19D |
| U275 | Valid for engine 642.8 | 7A |
| U401 | Valid for engine 176 | 1E |
| U402 | Valid for engine 273 | 7B |
| U74 | Valid for diesel engines | 8B |
| U75 | Valid for gasoline engines | 11B |
