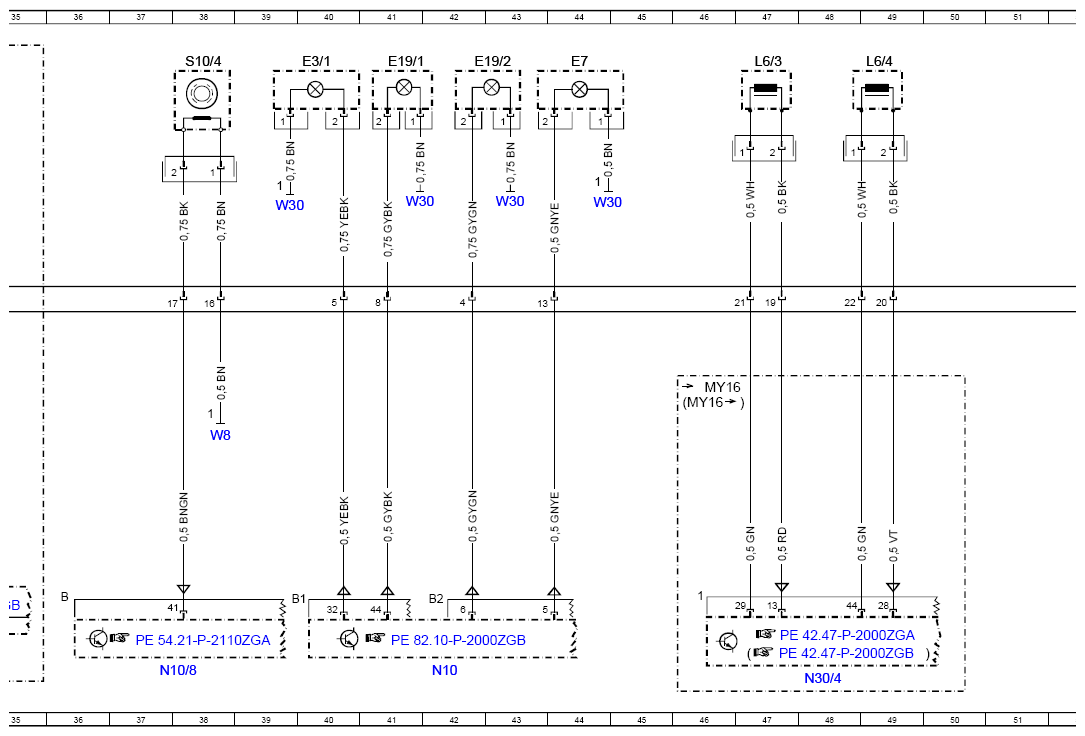

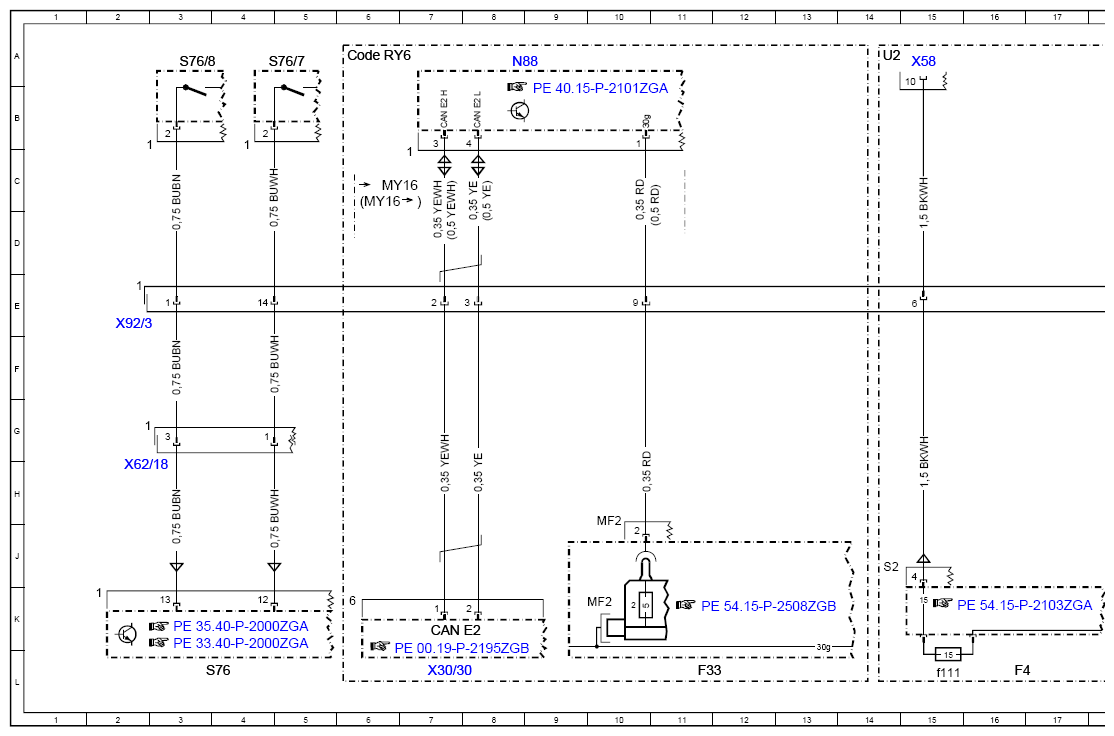

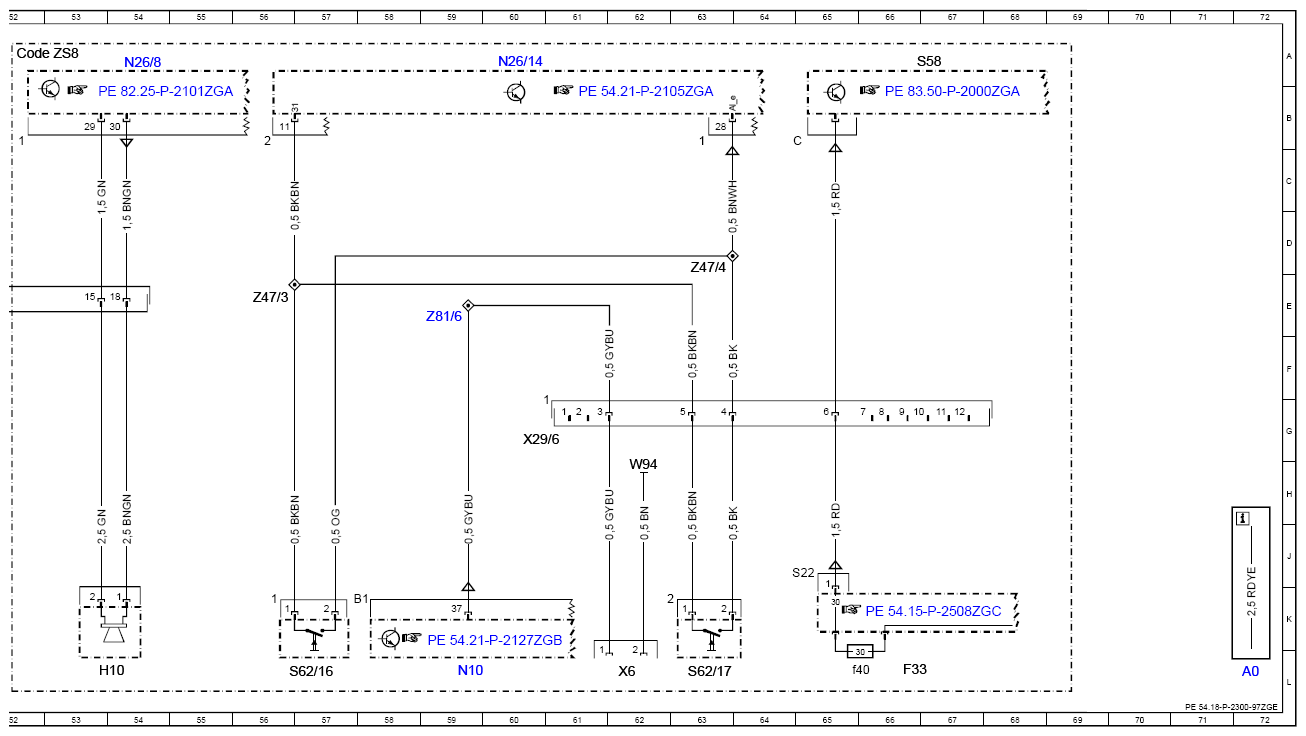

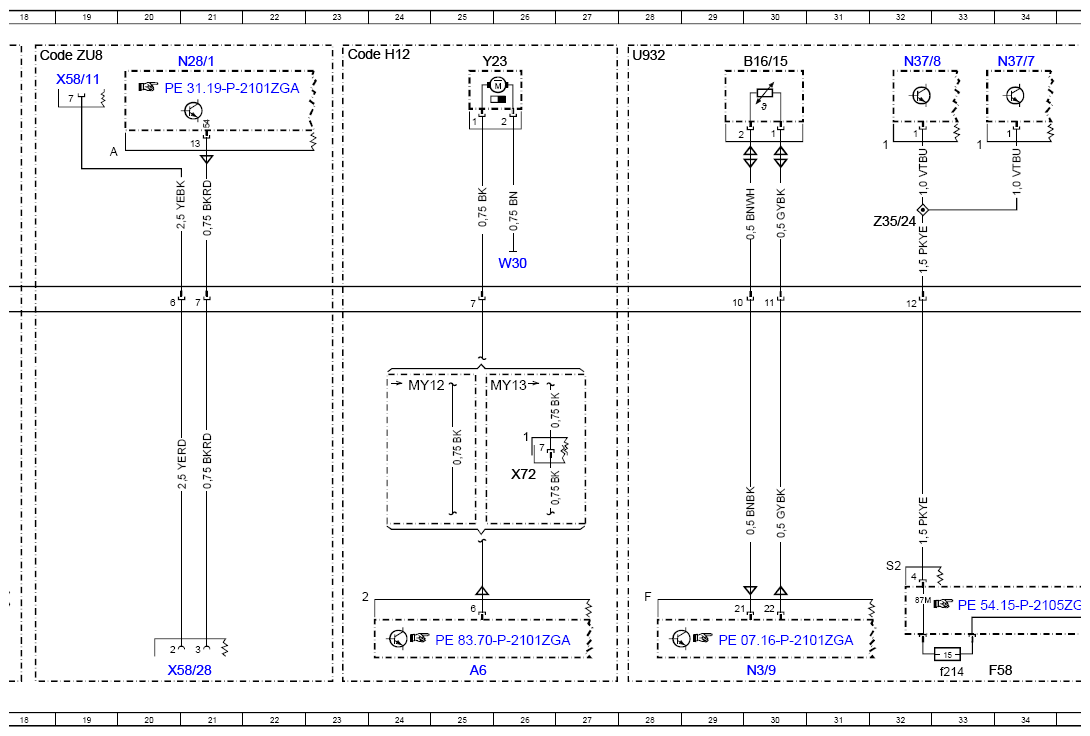

Connector Separation Point Wiring Diagram - PE54.18-P-2300-97ZGE
Model 463 as of model year 2013 up to model year 2019
/YoM 12 model refinement package up to YoM 18 model refinement package, X92/3 (1), X29/6 (SSA)
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 72L |
| A6 | STH or HB heater unit | 25L |
| B16/15 | Temperature sensor upstream of SCR catalytic converter | 30A |
| CAN E2 | Chassis CAN 2 | 7K |
| Code H12 | Auxiliary heater | 23A |
| Code RY6 | Tire pressure monitor (TPM) | 6A |
| Code ZS8 | Protection class VR7/glass area VR9 | 52A |
| Code ZU8 | USA version | 18A |
| E19/1 | Left license plate lamp | 41A |
| E19/2 | Right license plate lamp | 42A |
| E3/1 | Rear fog lamp | 40A |
| E7 | Backup lamp | 44A |
| F33 | Battery compartment prefuse box | 11L |
| F33 | Battery compartment prefuse box | 66L |
| F33MF2 | Multiple fuse 2 | 10K |
| F33f40 | Fuse 40 | 66L |
| F4 | Rear fuse and relay module | 16L |
| F4f111 | Fuse 111 | 15L |
| F58 | Front passenger footwell fuse and relay module | 34L |
| F58f214 | Fuse 214 | 33L |
| H10 | Outside speaker | 53L |
| L6/3 | Left rear axle RPM sensor | 47A |
| L6/4 | Right rear axle RPM sensor | 49A |
| N10 | SAM control unit | 42L |
| N10 | SAM control unit | 59L |
| N10/8 | Rear control unit | 37L |
| N26/14 | Special vehicle multifunction control unit (SVMCU [MSS]) | 60A |
| N26/8 | PAS (GAS) control unit | 54A |
| N28/1 | Trailer recognition control unit | 21A |
| N3/9 | CDI control unit | 30L |
| N30/4 | ESP control unit | 48L |
| N37/7 | NOx sensor control unit downstream of diesel particulate filter | 34A |
| N37/8 | NOx sensor control unit downstream of SCR catalytic converter | 32A |
| N88 | Tire pressure monitor control unit | 8A |
| S10/4 | Right rear brake wear sensor | 38A |
| S58 | Rear air conditioning blower switch | 67A |
| S62/16 | Front emergency alarm system button | 57L |
| S62/17 | Rear emergency alarm system button | 63L |
| S76 | Differential lock button group | 4L |
| S76/7 | Differential lock indicator switch (longitudinal equalization) | 5A |
| S76/8 | Differential lock indicator switch, rear axle | 3A |
| U2 | Valid for all except USA | 14A |
| U932 | Valid for diesel engine 642 BlueTEC | 28A |
| W30 | Ground (frame) | 26D |
| W30 | Ground (frame) | 41C |
| W30 | Ground (frame) | 39C |
| W30 | Ground (frame) | 43C |
| W30 | Ground (frame) | 44C |
| W8 | Ground (luggage compartment toolbox) | 38G |
| W94 | Rear air conditioning ground point | 62H |
| X29/6 | Center console intermediate electrical connector | 60G |
| X30/30 | Chassis 2 CAN (CAN E2) potential distributor electrical connector | 7L |
| X58 | Trailer hitch socket (13-pin) | 15A |
| X58/11 | Trailer hitch socket (7-pin) | 19A |
| X58/28 | Electronic brake system electrical connector | 21L |
| X6 | Circuit 58 terminal block (2-pin) | 62L |
| X62/18 | Front axle differential lock connector (function indicator), 2 poles | 2H |
| X72 | Stationary heater intermediate electrical connector | 26H |
| X92/3 | Frame connector (22-pin) | 2E |
| Y23 | STH fuel metering pump | 25A |
| Z35/24 | NOx sensor connector sleeve | 32D |
| Z47/3 | Alarm ground line connector sleeve | 56E |
| Z47/4 | Alarm ON connector sleeve | 63D |
| Z81/6 | Circuit 58d connector sleeve | 59E |
