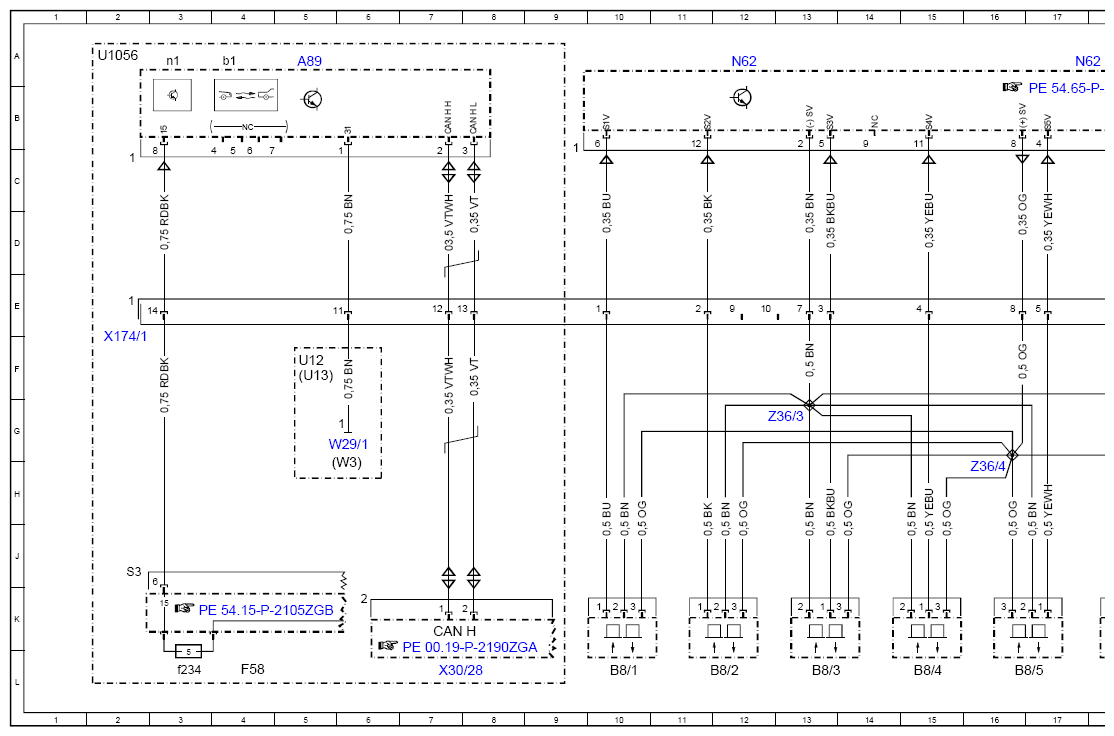

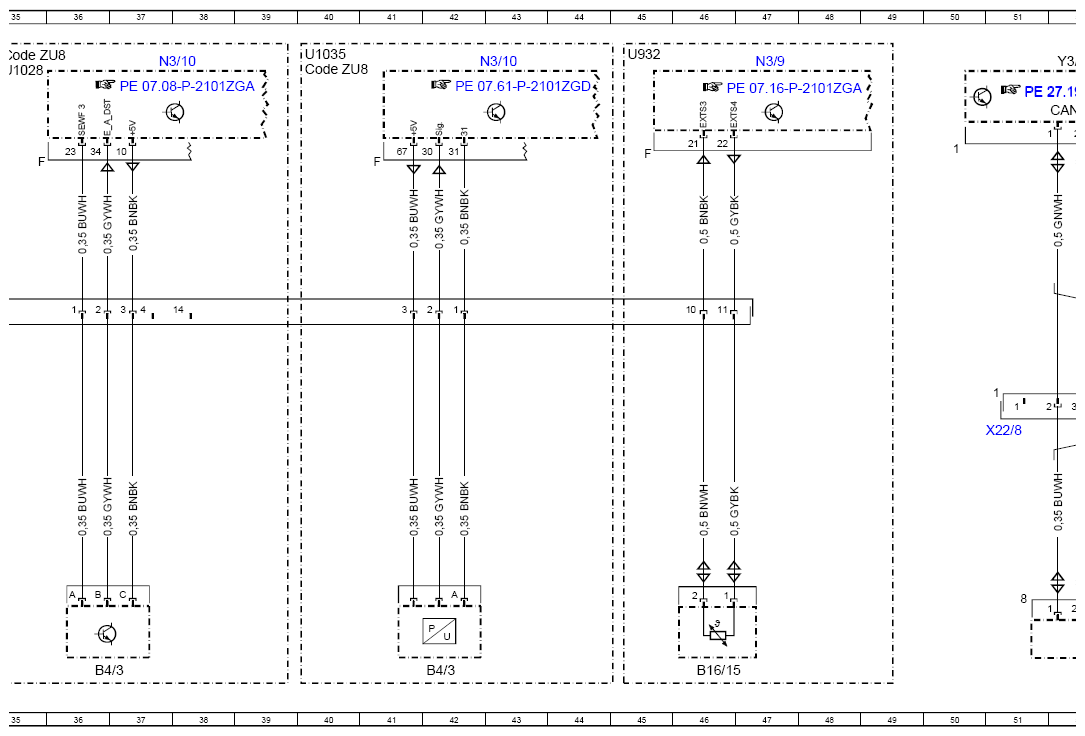

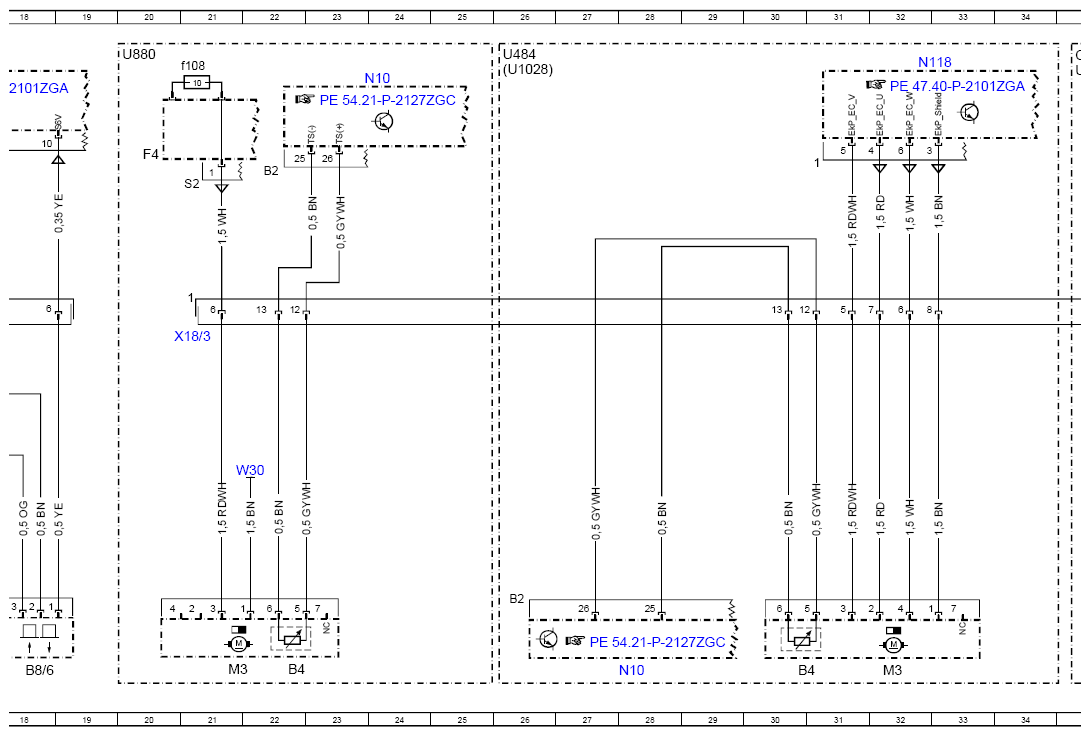

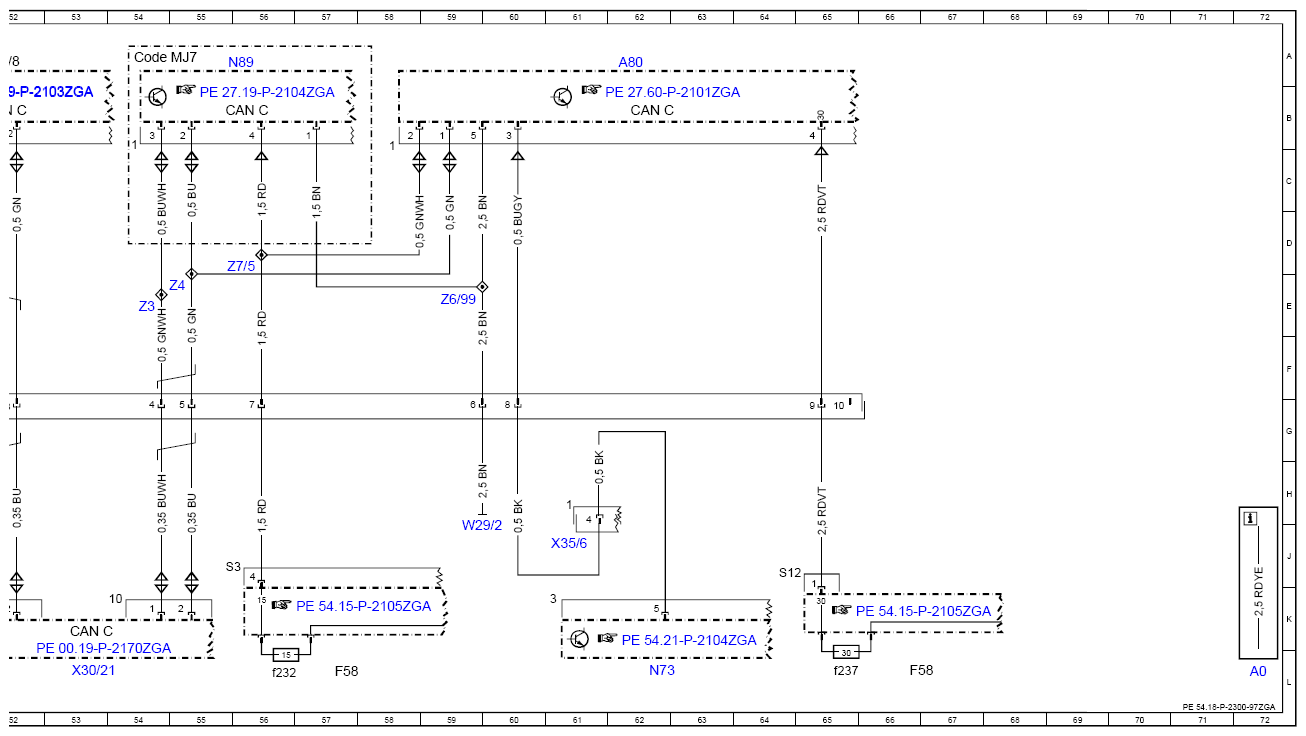

Connector Separation Point Wiring Diagram - PE54.18-P-2300-97ZGA
Model 463 as of model year 2013 up to model year 2019
/YoM 12 model refinement package up to YoM 18 model refinement package, X18/3, X22/8, X174/1
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 72L |
| A80 | Intelligent servo module for DIRECT SELECT | 62A |
| A89 | DISTRONIC electric controller unit | 5A |
| A89b1 | DISTRONIC radar sensor | 4A |
| A89n1 | DISTRONIC control unit | 3A |
| B16/15 | Temperature sensor upstream of SCR catalytic converter | 46L |
| B4 | Fuel tank fuel level indicator fill level sensor | 30L |
| B4 | Fuel tank fuel level indicator fill level sensor | 22L |
| B4/3 | Fuel tank pressure sensor | 36L |
| B4/3 | Fuel tank pressure sensor | 42L |
| B8/1 | Outer left front parking system distance sensor | 10L |
| B8/2 | Center left front parking system distance sensor | 12L |
| B8/3 | Inner left front parking system distance sensor | 13L |
| B8/4 | Inner right front parking system distance sensor | 15L |
| B8/5 | Center right front parking system distance sensor | 16L |
| B8/6 | Outer right front parking system distance sensor | 18L |
| CAN C | Drive train CAN | 52B |
| CAN C | Drive train CAN | 53K |
| CAN C | Drive train CAN | 56B |
| CAN C | Drive train CAN | 62B |
| CAN H | Vehicle dynamics CAN | 7K |
| Code MJ7 | Stop/start function | 54A |
| Code ZU8 | USA version | 35A |
| Code ZU8 | USA version | 40A |
| F4 | Rear fuse and relay module | 20C |
| F4f108 | Fuse 108 | 21A |
| F58 | Front passenger footwell fuse and relay module | 4L |
| F58 | Front passenger footwell fuse and relay module | 57L |
| F58 | Front passenger footwell fuse and relay module | 66L |
| F58f232 | Fuse 232 | 56L |
| F58f234 | Fuse 234 | 3L |
| F58f237 | Fuse 237 | 65L |
| M3 | Fuel pump (FP) | 32L |
| M3 | Fuel pump (FP) | 21L |
| N10 | SAM control unit | 28L |
| N10 | SAM control unit | 24A |
| N118 | Fuel pump control unit | 32A |
| N3/10 | ME-SFI [ME] control unit | 37A |
| N3/10 | ME-SFI [ME] control unit | 43A |
| N3/9 | CDI control unit | 47A |
| N62 | Parking system control unit | 12A |
| N62 | Parking system control unit | 17A |
| N73 | Electronic ignition switch control unit | 62L |
| N89 | Transmission oil auxiliary pump control unit | 56A |
| U1028 | Valid for engine 157 | 26A |
| U1028 | Valid for engine 157 | 35A |
| U1035 | Valid for gasoline engine 279 | 40A |
| U1056 | Not valid for M 157 | 2A |
| U12 | Valid for left-hand drive vehicles | 5F |
| U13 | Valid for right-hand drive vehicles | 5F |
| U484 | Valid for M273 ME | 26A |
| U880 | Valid for diesel engine 642 | 20A |
| U932 | Valid for diesel engine 642 BlueTEC | 45A |
| W29/1 | A-pillar ground connection, left | 6G |
| W29/2 | Right A-pillar ground connection | 59J |
| W3 | Left front wheel arch ground point | 6H |
| W30 | Frame ground point | 22H |
| X174/1 | Vehicle interior/front bumper electrical connector | 2F |
| X18/3 | Vehicle interior/fuel tank electrical connector | 21F |
| X22/8 | Fully integrated transmission controller unit electrical connector | 51G |
| X30/21 | Drive train CAN (CAN C) potential distributor electrical connector | 53L |
| X30/28 | Vehicle dynamics CAN (CAN H) potential distributor electrical connector | 7L |
| X35/6 | Instrument panel and module box electrical connector | 61J |
| Y3/8 | Fully integrated transmission control unit | 52A |
| Z3 | Terminal 15 connector sleeve | 54E |
| Z36/3 | Front parking system sensors ground line connector sleeve | 13G |
| Z36/4 | Front parking system sensors positive line connector sleeve | 16H |
| Z4 | Circuit 15/30 connector sleeve | 55E |
| Z6/99 | Transmission circuit 31 connector sleeve | 59E |
| Z7/5 | Circuit 87 connector sleeve | 56D |
