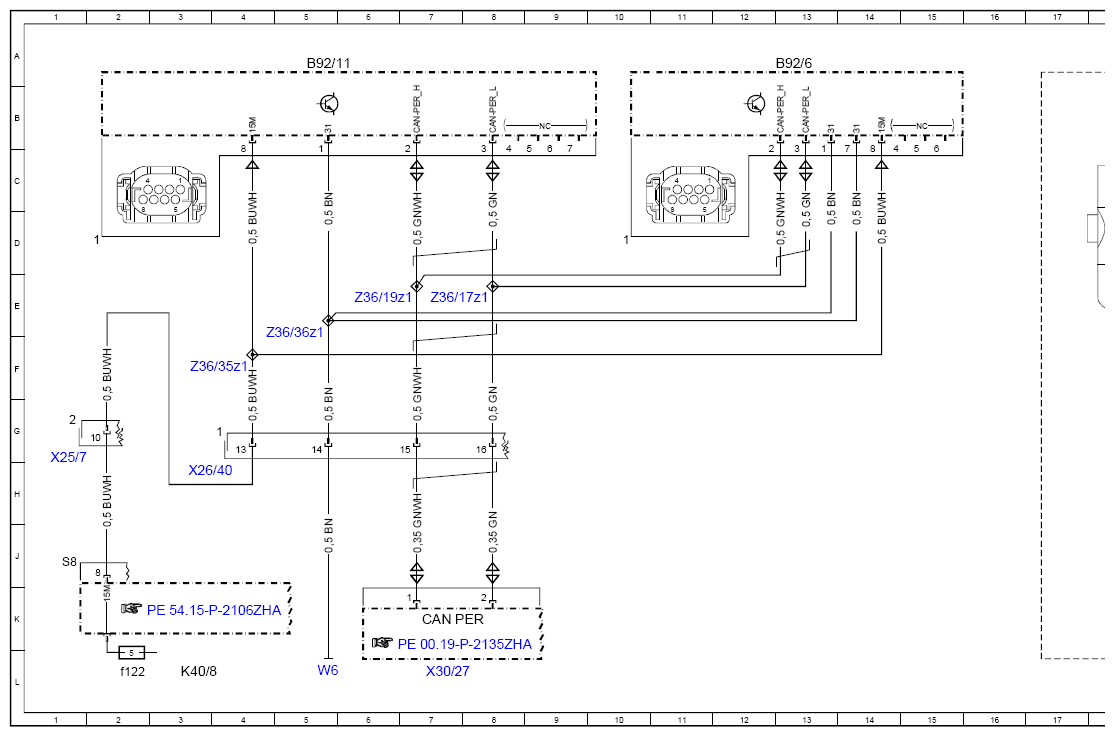

Blind Spot Assist Wiring Diagram - PE54.71-P-2100-97ZHA
Model 463 (except 463.342) as of model year 2019
with code EA2 (Blind Spot Monitoring) Sensors B92/6, B92/11
| Code: | Designation: | Position: |
|---|---|---|

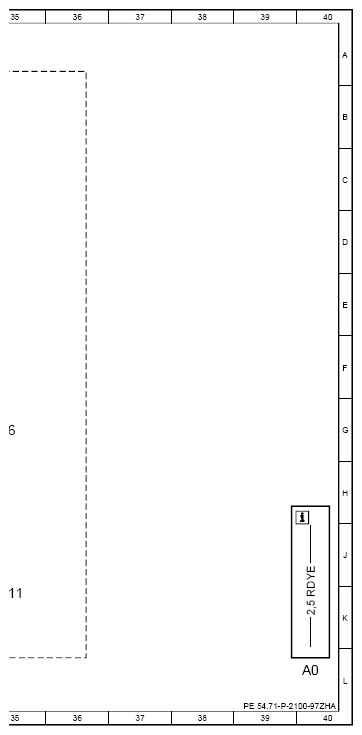

| A0 | Use of wiring diagrams | 40L |

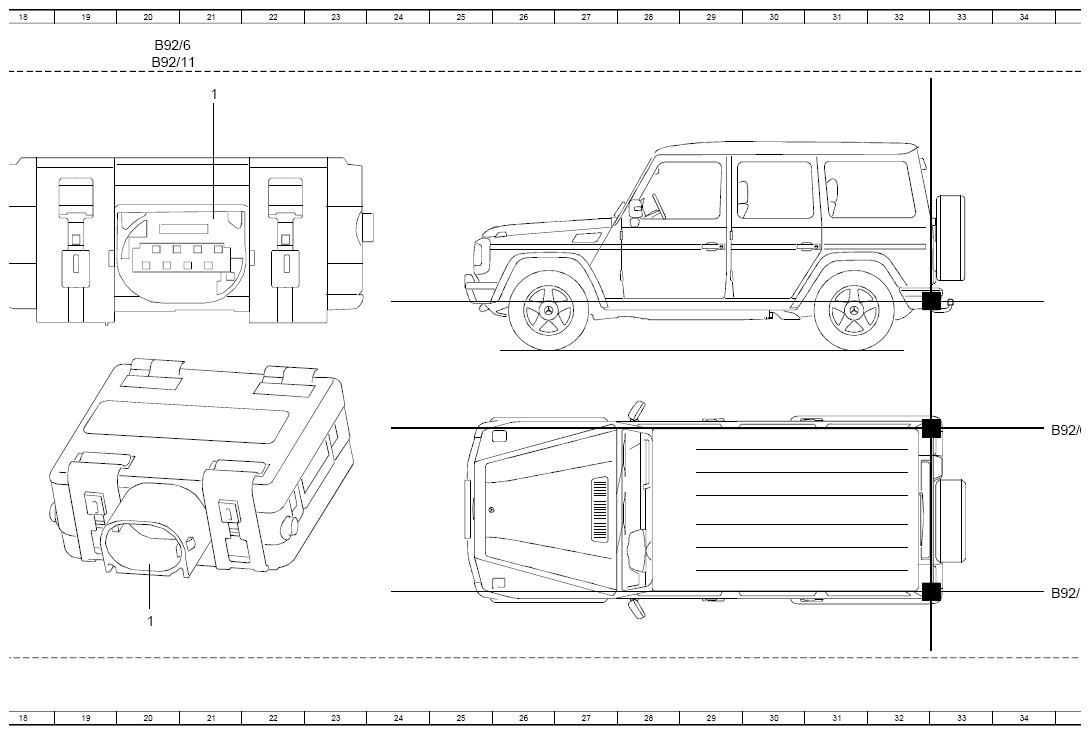

| B92/11 | Left outer rear bumper integrated radar sensor | 20A |
| B92/11 | Left outer rear bumper integrated radar sensor | 5A |
| B92/11 | Left outer rear bumper integrated radar sensor | 34K |
| B92/6 | Right outer rear bumper integrated radar sensor | 20A |
| B92/6 | Right outer rear bumper integrated radar sensor | 13A |
| B92/6 | Right outer rear bumper integrated radar sensor | 34G |
| CAN PER | Peripherals CAN | 7K |
| K40/8 | Engine fuse and relay module | 3L |
| K40/8f122 | Fuse 122 | 2L |
| W6 | Left rear wheel well ground point | 5L |
| X25/7 | Engine compartment/frame floor assembly electrical connector | 1H |
| X26/40 | Rear bumper electrical connector | 3H |
| X30/27 | Peripherals CAN (CAN PER) potential distributor | 7L |
| Z36/17z1 | Periphery CAN (CAN PER) low connector sleeve | 7E |
| Z36/19z1 | Periphery CAN (CAN PER) high connector sleeve | 6E |
| Z36/35z1 | Voltage supply connector sleeve | 4F |
| Z36/36z1 | Ground connection connector sleeve | 5E |
