Removing And Installing Display Module - AR54.30-P-6023XG
Model 463
as of Model year 2019
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmitter range (at least 2 m). | ||
| 2 | Move steering wheel all the way back and down. | ||

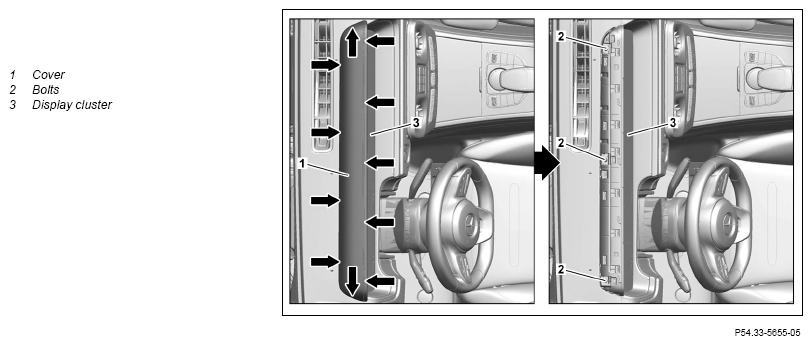

| 3 | Unclip the cover (1) (arrows). | Fig 2 | |
| 4 | Unscrew bolts (2). | ||

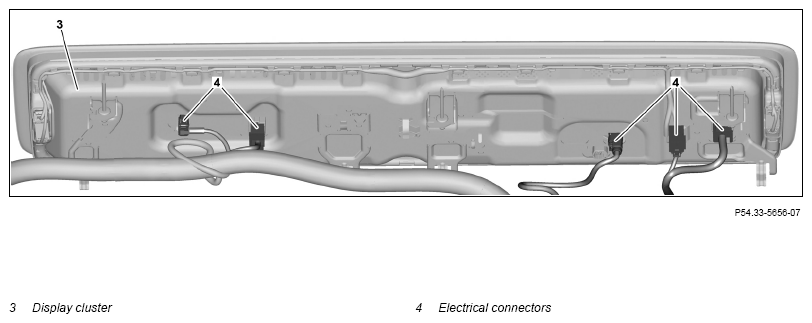

| 5 | Lift up retaining tabs of bolts (2) slightly and tilt display cluster (3) far enough out of instrument panel to gain access to the electrical connectors (4). | Do not apply too much force when lifting up the retaining tabs of the bolts (2). Otherwise, the display cluster (3) will be damaged. |
|
| 6 | Disconnect electrical connectors (4). | ||
| 7 | Remove display cluster (3). | ||
| 8 | Install in reverse order. |
