Remove/Install Fuse And Relay Module In Engine Compartment - AR54.15-P-0005XG
Model 463
as of Model year 2019

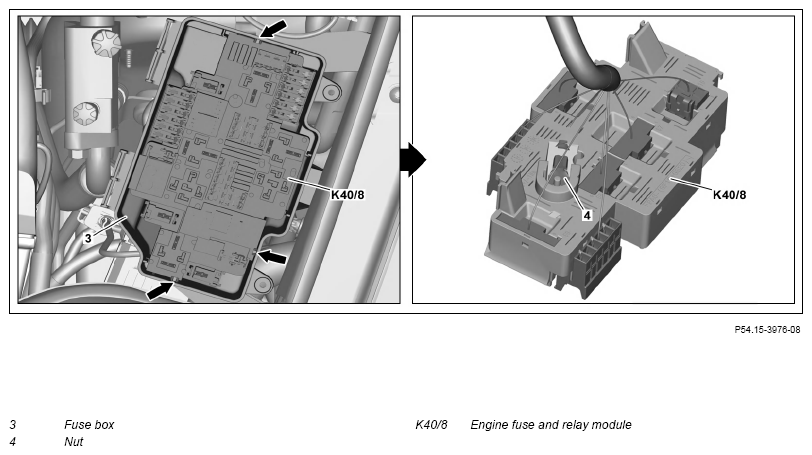

Fig 1: Engine Compartment Fuse And Relay Module Components Location - Model 463 As Of Model Year 2019
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Disconnect ground line of battery. | AR54.10-P-0003XG | |
| 2 | Open engine hood and raise to upright position. | AR88.40-P-1000XG | |

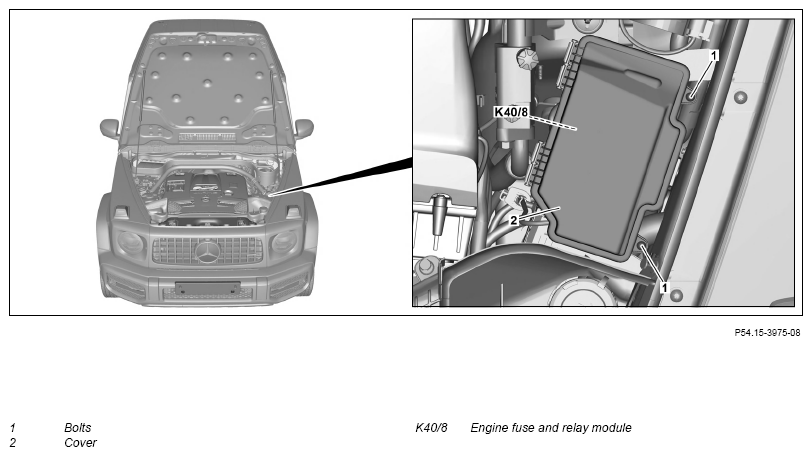

| 3 | Unscrew screws (1) and remove cap (2) of fuse box (3). | ||
| 4 | Unclip fuse and relay module (K40/8) (arrows) and extend upward until the nut (4) is accessible. | ||
| 5 | Unscrew nut (4) and remove positive line. | *BA54.15-P-1002-02A | |
| 6 | Disconnect all electrical connectors from engine fuse and relay module (K40/8). | ||
| 7 | Unclip all fuse holders and place to one side. | ||
| 8 | Remove engine fuse and relay module (K40/8). | ||
| 9 | Change all fuses and relays. | When replacing engine fuse and relay module (K40/8). | |
| Model 463 (except 463.342) as of Model year 2019 | GF54.15-P-1256-32GWM | ||
| 10 | Install in reverse order. |
FUSE AND RELAY MODULE
| Number | Designation | Model 463 up to Model year 2019 | Model 463 as of Model year 2019 | ||
|---|---|---|---|---|---|
| BA54.15-P-1002-02A | Nut, positive line to engine fuse and relay module | M6 | Nm | - | 8 |
| M8 | Nm | - | 16 | ||
