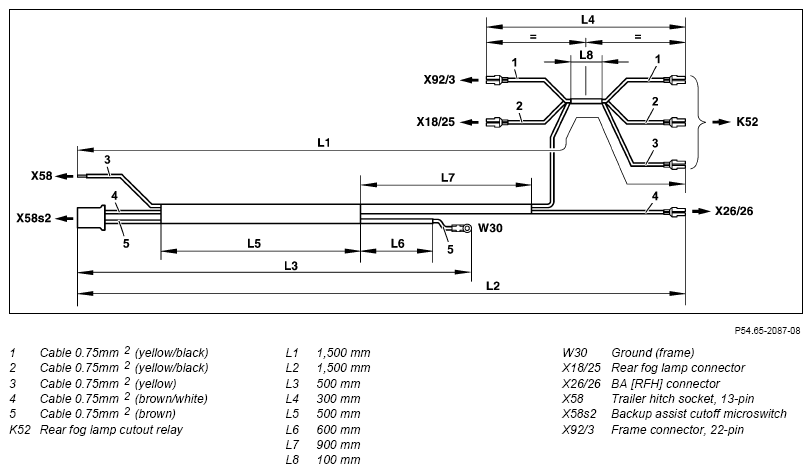

(Assemble Cable Set - AN54.65-P-0010-06B)

MODEL 463 as of production date 9/2/96 up to production date 11/30/00

with CODE (E43) Trailer socket (13-pin)

Courtesy of MERCEDES-BENZ USA

1. Insert (brown), (yellow) and (brown/white) cables into insulating tubing of length (L5).
2. Attach contact springs to (brown) and (brown/white) cables and insert into connector for backup assist cutoff microswitch (X58s2).
3. Insert (brown) cable into insulating tubing of length (L6) and attach cable lug for frame ground (W30).
4. Insert (yellow) and (brown/white) cables into insulating tubing of length (L7).
5. Attach connector to (brown/white) cable for BA [RFH] connector (X26/26).
6. Insert (yellow) cable and 2 (yellow/black) cables into insulating tubing of length (L8).
7. Attach connector to (yellow/black) cable for rear fog lamp connector (X18/25) and for 22-pin frame connector (X92/3).
8. Attach connector to (yellow/black) and (yellow) cables for rear fog lamp cutout relay (K52).
