Check Suspension Data, Assign Actual Value To Table - AR40.20-P-0001-01LOG

Model 238.361/461 2#

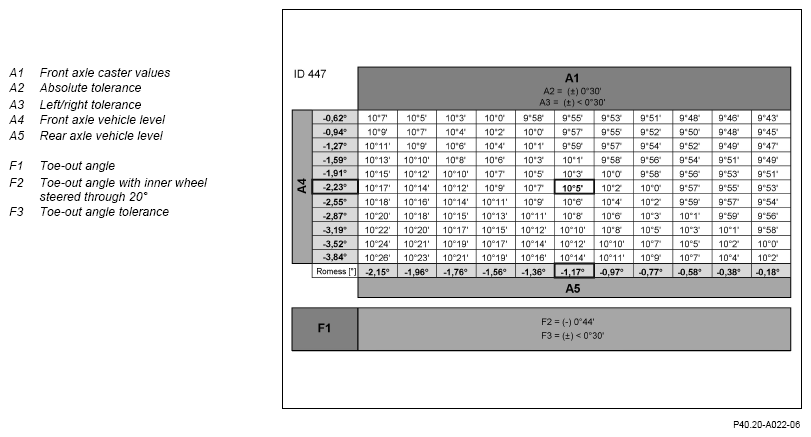

G15466311

Courtesy of MERCEDES-BENZ USA

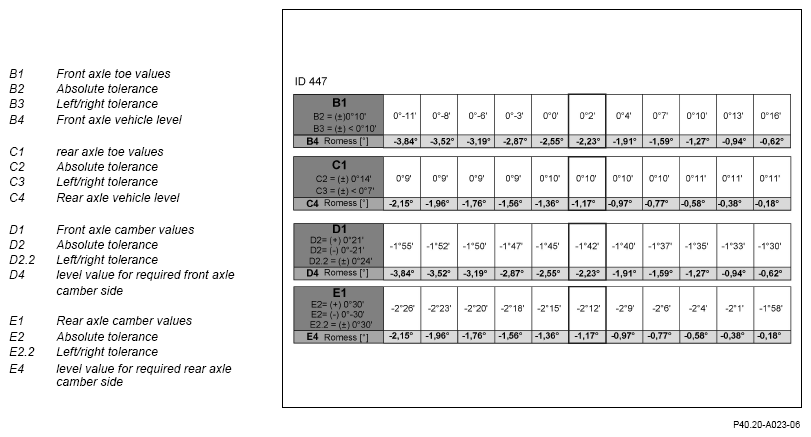

G15466312

Courtesy of MERCEDES-BENZ USA
