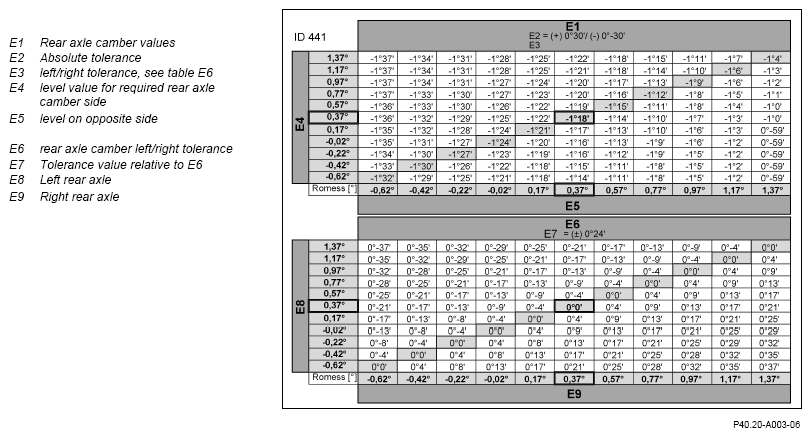

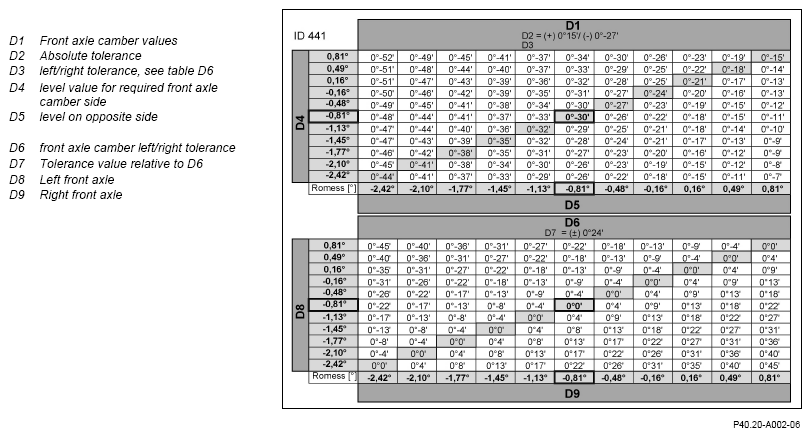

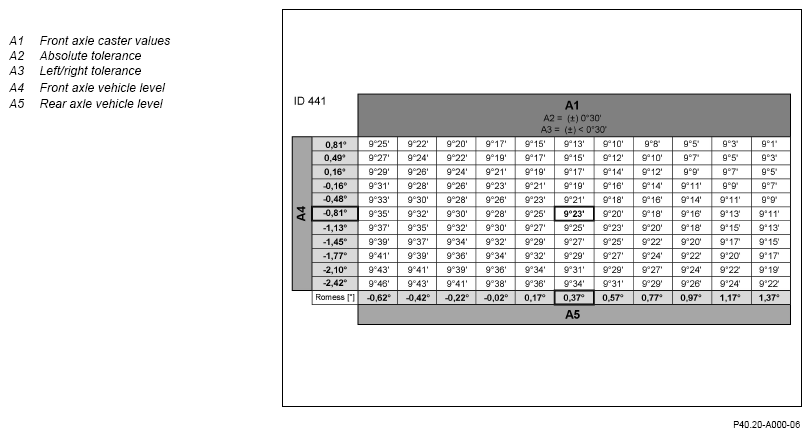

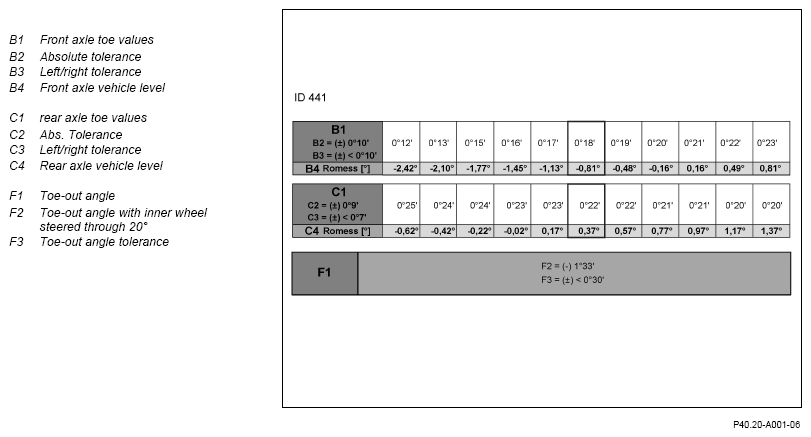

Check Suspension Data, Assign Actual Value To Table - AR40.20-P-0001-01LOA

Model 238 (except 238.361/461)

with code 459 (DYNAMIC BODY CONTROL suspension with adjustment damping)

except code M005 (Vehicles with 4MATIC/all-wheel drive)

Model 238 (except 238.361/461)

with code 677 (AVANTGARDE/standard suspension)

except code M005 (Vehicles with 4MATIC/all-wheel drive)
