Call Up Specified Suspension Data On-line - AR40.20-P-0001A
Model 117, 118, 166, 167, 171, 172, 176, 177, 190, 204, 205, 206, 207, 212, 213, 218, 223, 230, 231, 232, 238, 243, 247, 253, 254, 257, 290, 292, 293, 294, 295, 296, 297
Model 453
Model 463
as of model year 2019
| Picture no., etc. | Work notes | ||
| 1 | To make it easier to assign the current suspension data, the specified suspension data can be assigned on-line using the vehicle identification number. | https://xentry.mercedes-benz.com/wao-ui/dashboard |
|

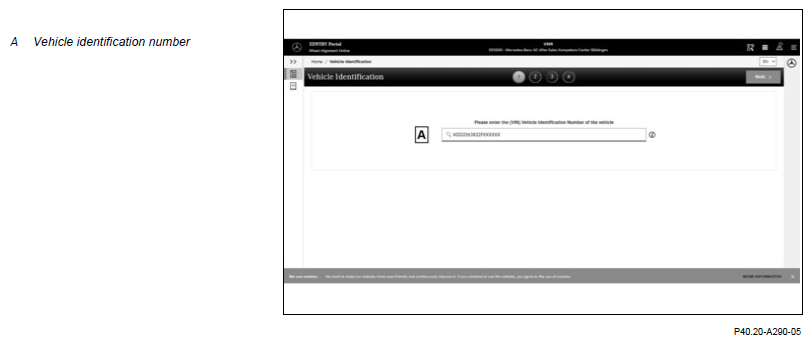

| A | Entry of vehicle identification number. | ||

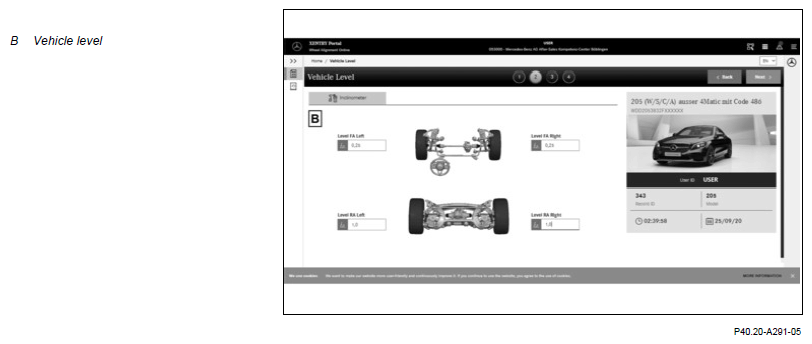

| B | Entry of vehicle level at front and rear axle. | ||

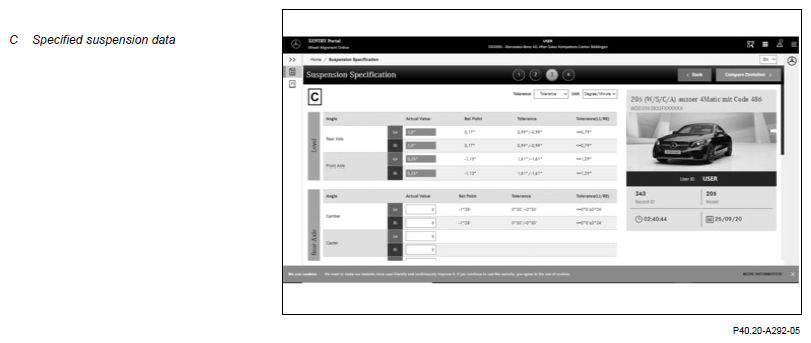

| C | Display of specified suspension data. |
