Adjust Rear-Axle Toe - AR40.20-P-0261LWO
Model 238

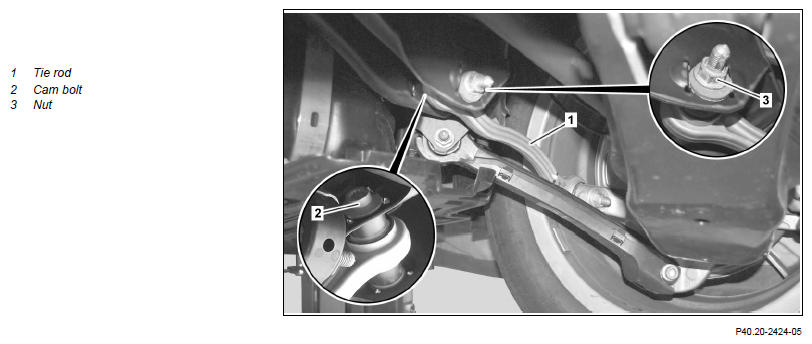

Shown on right side of vehicle
| Measure | |||
| 1 | Perform initial measurement | AR40.20-P-0200LWO | |
| Adjust | |||
| 2 | Loosen nut (3) | ||
| 3 | Adjust toe using cam bolt (2) | Assign suspension data | AR40.20-P-0203LOA |
| 4 | Tighten nut (3) | *BA35.20-P-1002-04M | |
| Measure | |||
| 5 | Perform final measurement | AR40.20-P-0200LWO |
TIE ROD
| Number | Designation | Model 238 | |||
|---|---|---|---|---|---|
| BA35.20-P-1002-04M | Self-locking nut, tie rod to rear axle carrier | When removing the tie rod | Stage 1 | Nm | 50 |
| Stage 2 | ∠° | 90 | |||
| When adjusting the toe | Nm | 110 | |||
