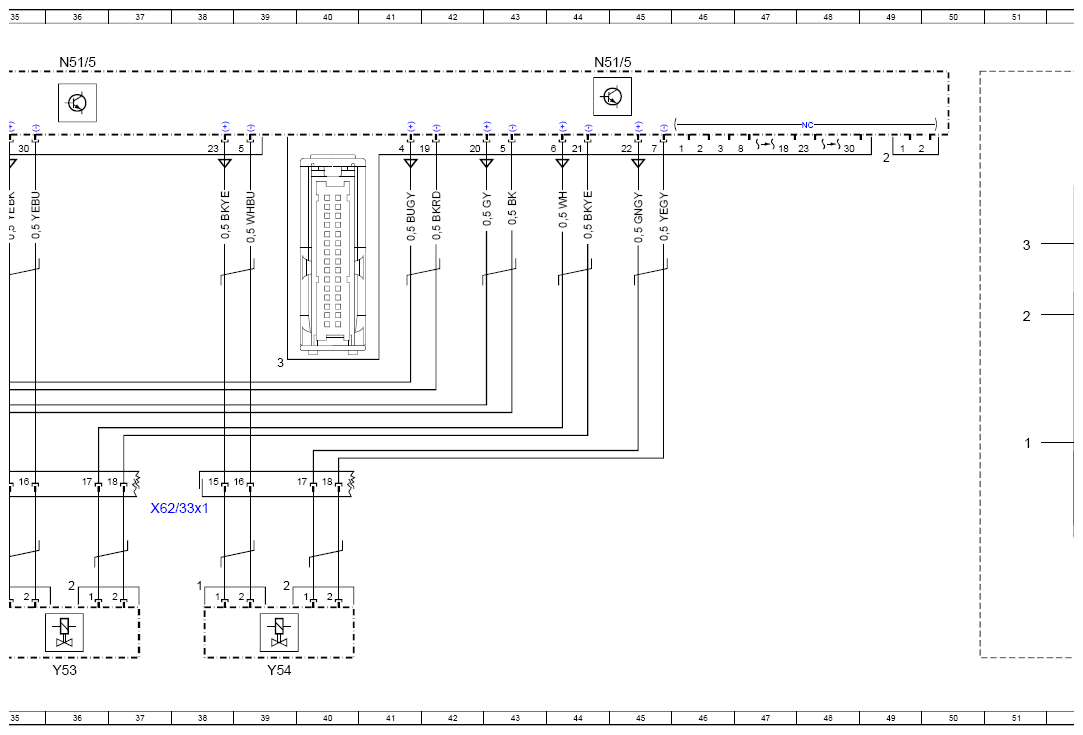

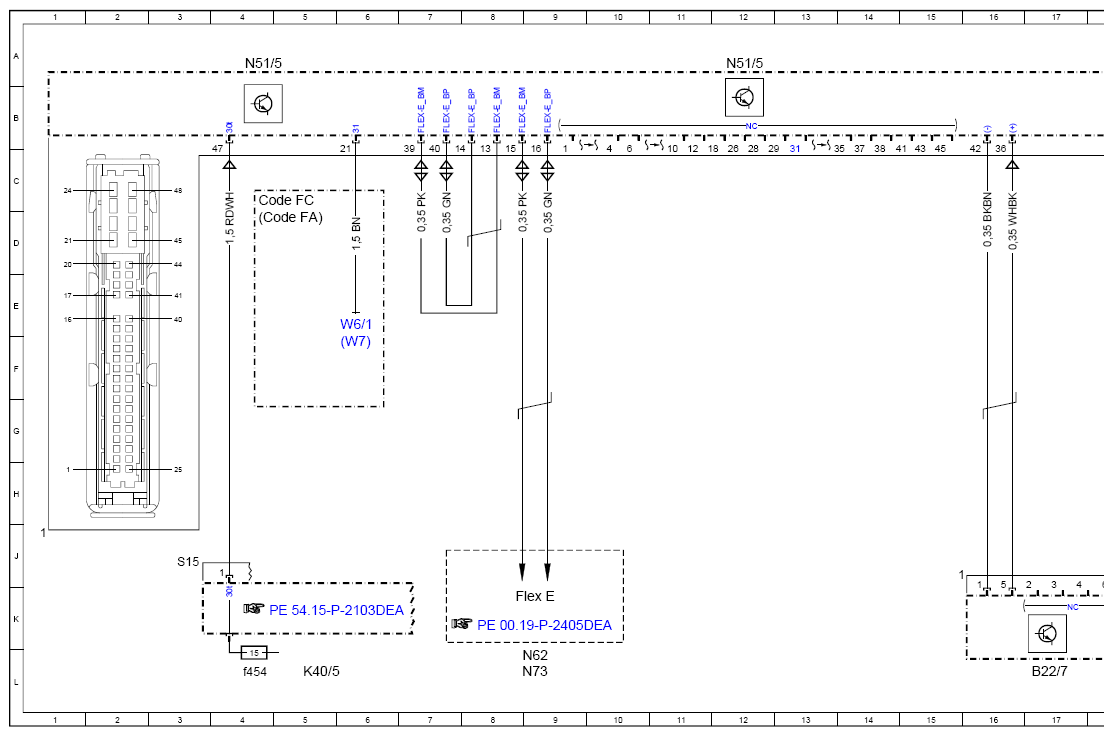

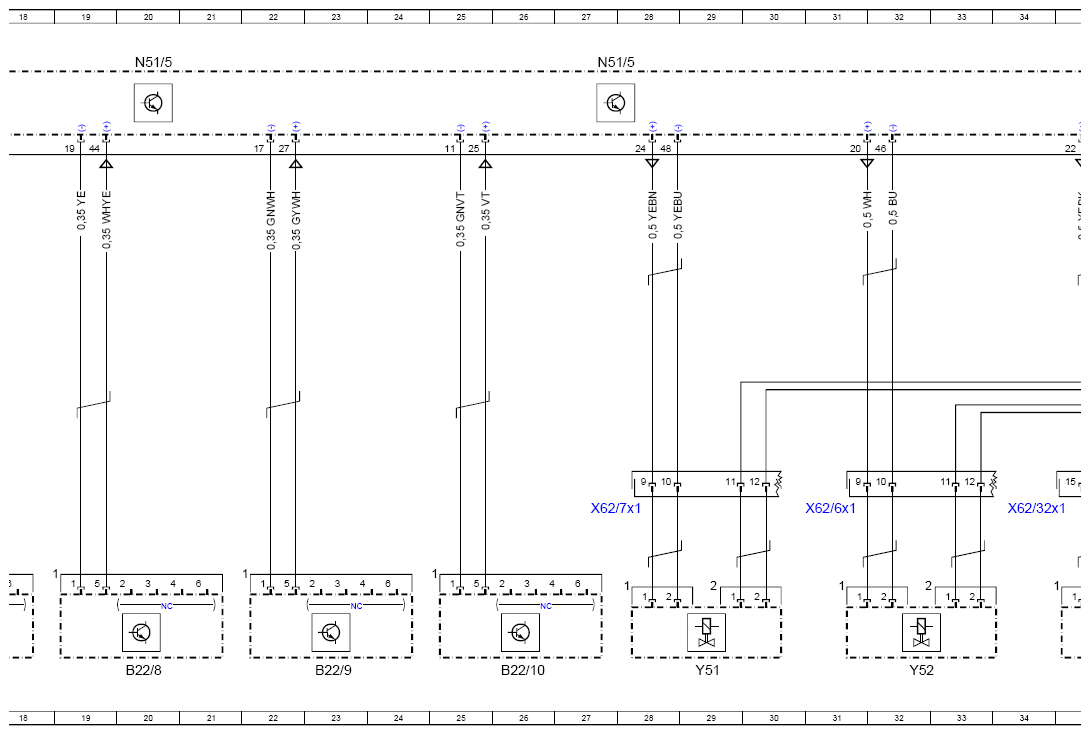

Wiring Diagram For Adaptive Damping System (ADS) Control Unit - PE32.32-P-2101-97DEA
Model 238 as of model year 2021 with code 459 (Steel suspension with adjustable damping) Control unit N51/5
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 72L |
| B22/10 | Right rear level sensor | 26L |
| B22/7 | Left rear level sensor | 17L |
| B22/8 | Left front level sensor | 20L |
| B22/9 | Right front level sensor | 23L |
| Code FA | CABRIOLET | 4D |
| Code FC | COUPE | 4C |
| Flex E | Chassis FlexRay | 9K |
| K40/5 | Rear fuse and relay module | 5L |
| K40/5f454 | Fuse 454 | 4L |

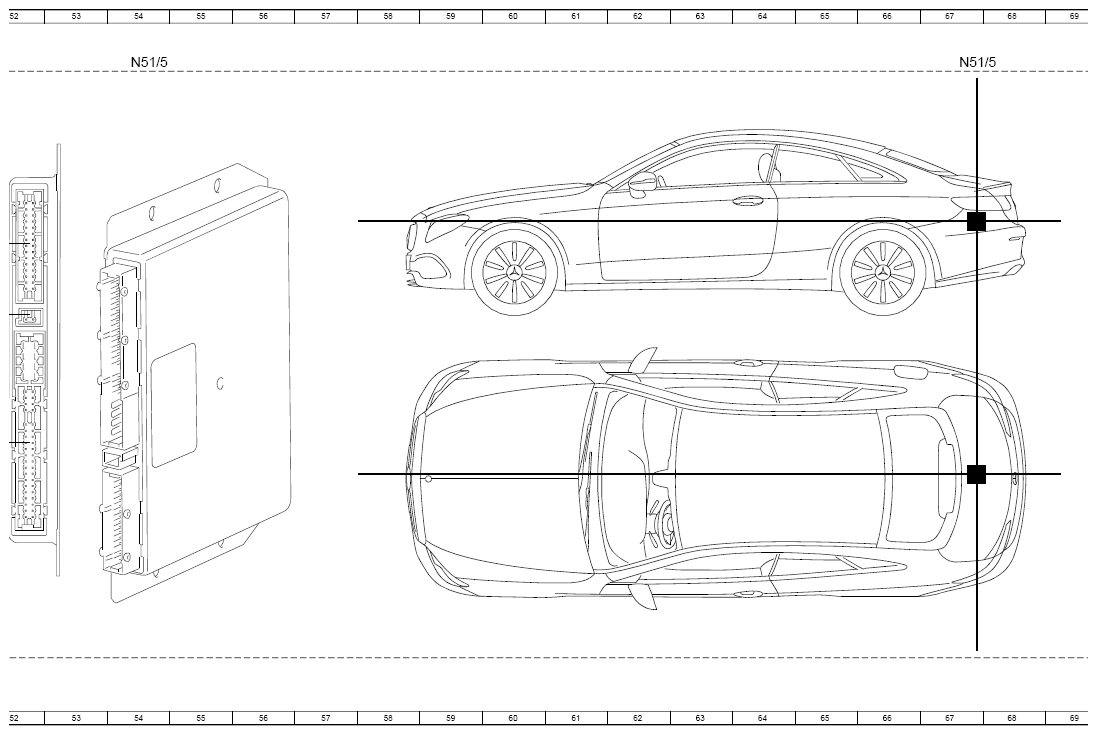

| N51/5 | Adaptive damping system control unit | 4A |
| N51/5 | Adaptive damping system control unit | 12A |
| N51/5 | Adaptive damping system control unit | 20A |
| N51/5 | Adaptive damping system control unit | 27A |
| N51/5 | Adaptive damping system control unit | 36A |
| N51/5 | Adaptive damping system control unit | 44A |
| N51/5 | Adaptive damping system control unit | 54A |
| N51/5 | Adaptive damping system control unit | 67A |
| N62 | Parking system control unit | 9L |
| N73 | Electronic ignition switch control unit | 9L |
| W6/1 | Left taillamp trunk ground point | 6E |
| W7 | Right wheel house trunk ground point | 6F |
| X62/32x1 | Rear axle electrical connector, left distributor | 34H |
| X62/33x1 | Rear axle electrical connector, right distributor | 38H |
| X62/6x1 | Front axle electrical connector, right distributor | 31H |
| X62/7x1 | Front axle electrical connector, left distributor | 27H |
| Y51 | Left front axle damping valve unit | 29L |
| Y52 | Right front axle damping valve unit | 32L |
| Y53 | Left rear axle damping valve unit | 36L |
| Y54 | Right rear axle damping valve unit | 39L |
