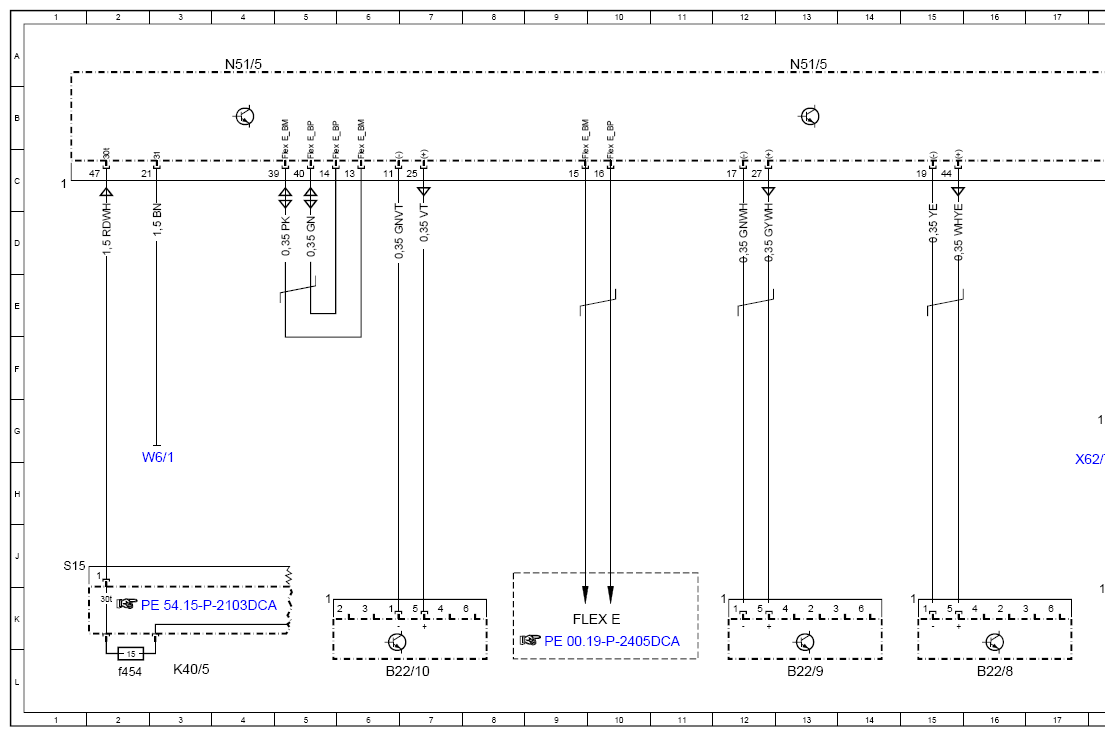

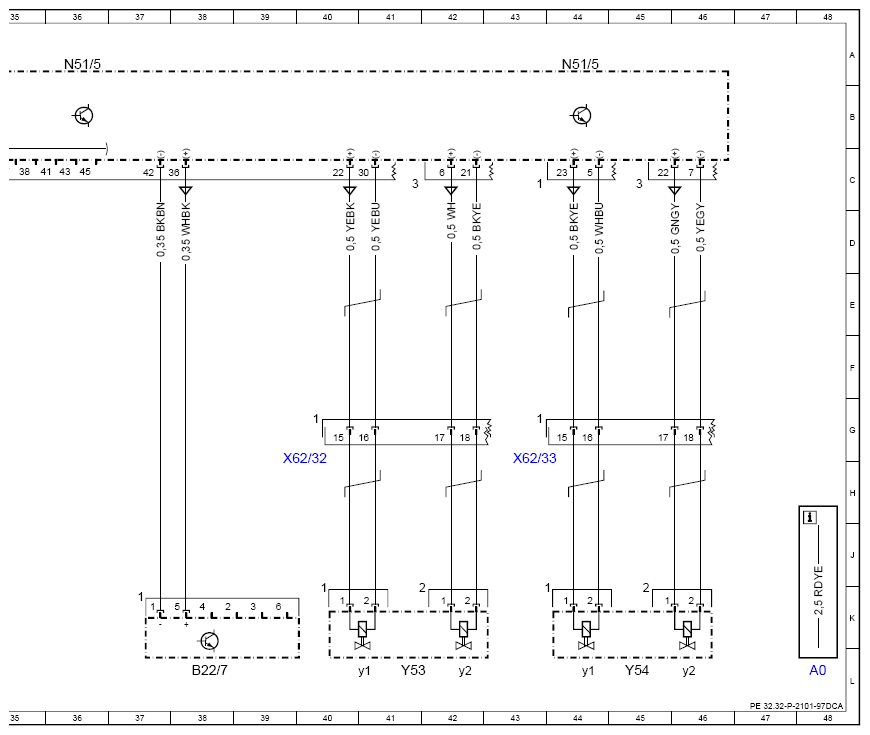

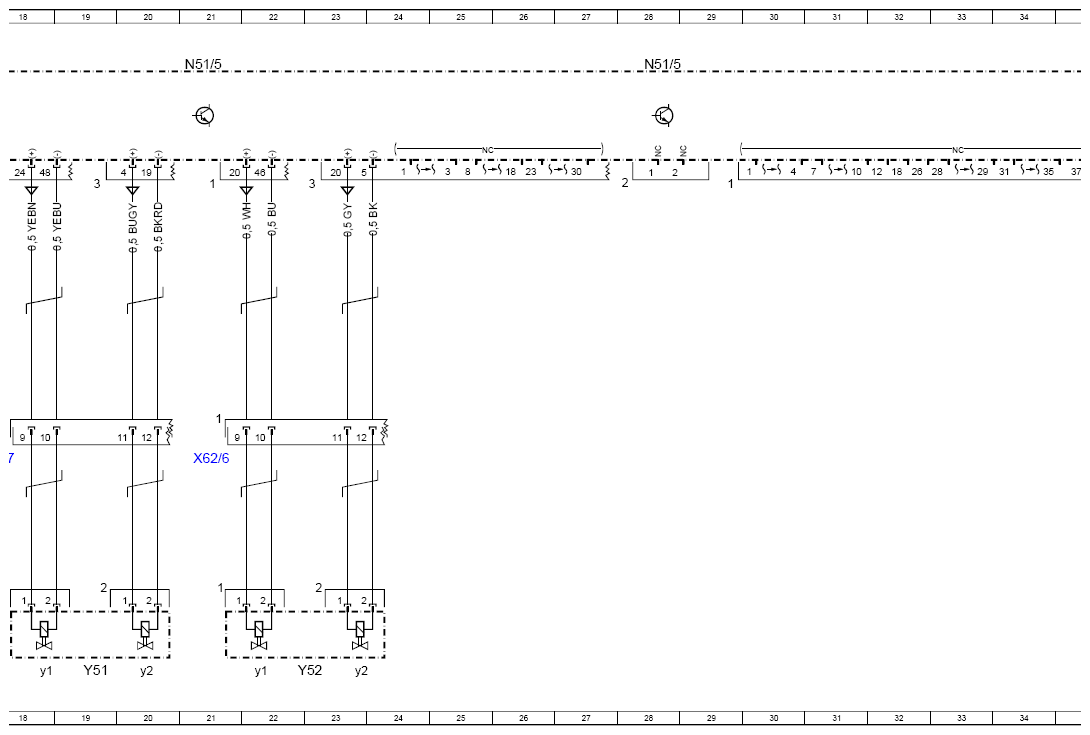

Wiring Diagram For Adaptive Damping System (ADS) Control Unit - PE32.32-P-2101-97DCA
Model 238 Up To Model Year 2021
with code 459 (Steel suspension with adjustable damping)
Control unit N51/5
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 48L |
| B22/10 | Right rear level sensor | 6L |
| B22/7 | Left rear level sensor | 38L |
| B22/8 | Left front level sensor | 16L |
| B22/9 | Right front level sensor | 13L |
| K40/5 | Rear fuse and relay module | 3L |
| K40/5f454 | Fuse 454 | 2L |
| N51/5 | Adaptive damping system control unit | 4A |
| N51/5 | Adaptive damping system control unit | 13A |
| N51/5 | Adaptive damping system control unit | 21A |
| N51/5 | Adaptive damping system control unit | 44A |
| N51/5 | Adaptive damping system control unit | 28A |
| N51/5 | Adaptive damping system control unit | 36A |
| W6/1 | Left taillamp trunk ground point | 3G |
| X62/32 | Rear axle electrical connector, left distributor | 40H |
| X62/33 | Rear axle electrical connector, right distributor | 43H |
| X62/6 | Front axle electrical connector, right distributor | 21H |
| X62/7 | Front axle electrical connector, left distributor | 18H |
| Y51 | Left front axle damping valve unit | 19L |
| Y51y1 | Solenoid valve 1, front left | 18L |
| Y51y2 | Solenoid valve 2, front left | 20L |
| Y52 | Right front axle damping valve unit | 23L |
| Y52y1 | Solenoid valve 1, front right | 22L |
| Y52y2 | Solenoid valve 2, front right | 23L |
| Y53 | Left rear axle damping valve unit | 41L |
| Y53y1 | Solenoid valve 1, rear left | 41L |
| Y53y2 | Solenoid valve 2, rear left | 42L |
| Y54 | Right rear axle damping valve unit | 45L |
| Y54y1 | Solenoid valve 1, rear right | 44L |
| Y54y2 | Solenoid valve 2, rear right | 46L |
