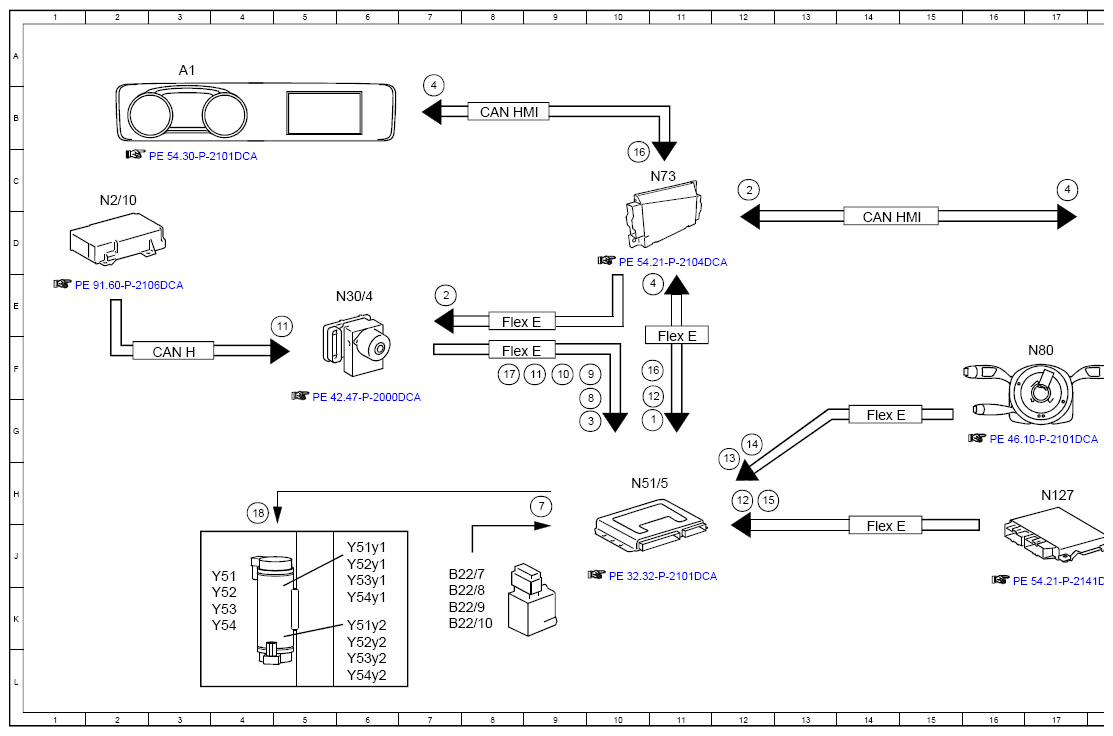

Electrical Function Schematic For Adaptive Damping System (ADS) - PE32.32-P-2051-97DCA
Model 238 Up To Model Year 2021
with code 459 (Steel suspension with adjustable damping)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 11G |
| 10 | Braking torque, signal | 9F |
| 11 | Speed, turn rate and lateral acceleration, signal | 5E |
| 11 | Speed, turn rate and lateral acceleration, signal | 9F |
| 12 | Variant coding, signal | 12H |
| 12 | Variant coding, signal | 19H |
| 12 | Variant coding, signal | 11F |
| 13 | Steering wheel angle, signal | 12H |
| 14 | Steering wheel velocity, signal | 12G |
| 15 | Kickdown, status ON | 12H |
| 16 | Vehicle speed, signal | 10C |
| 16 | Vehicle speed, signal | 11F |
| 17 | ESP®, status | 8F |
| 18 | Damping valve units, actuation | 4H |
| 2 | DYNAMIC SELECT switch, status | 26C |
| 2 | DYNAMIC SELECT switch, status | 12C |
| 2 | DYNAMIC SELECT switch, status | 20C |
| 2 | DYNAMIC SELECT switch, status | 7E |
| 3 | Transmission mode, request | 10G |
| 4 | Transmission mode, signal | 17C |
| 4 | Transmission mode, signal | 7B |
| 4 | Transmission mode, signal | 11E |
| 5 | Switch-on request, signal | 22G |
| 6 | High-speed video link video signal data transfer, signal | 22F |
| 7 | Level sensor, signal | 9H |
| 8 | Wheel speed, signal | 10G |
| 9 | Service brake, status | 10F |
| A1 | Instrument cluster | 3A |
| A105 | Touchpad | 24D |
| A26/17 | Head unit | 19C |
| A40/8 | Audio/COMAND display | 23F |
| A40/9 | Audio/COMAND control panel | 24B |
| B22/10 | Right rear level sensor | 7K |
| B22/7 | Left rear level sensor | 7J |
| B22/8 | Left front level sensor | 7K |
| B22/9 | Right front level sensor | 7K |
| CAN A | Telematics CAN | 22D |
| CAN A | Telematics CAN | 20G |
| CAN C1 | Drive train CAN | 22J |
| CAN H | Vehicle dynamics CAN | 3F |
| CAN HMI | User interface CAN | 14D |
| CAN HMI | User interface CAN | 8B |
| Code 446 | Touchpad only | 23D |
| Flex E | Chassis FlexRay | 8F |
| Flex E | Chassis FlexRay | 14J |
| Flex E | Chassis FlexRay | 11F |
| Flex E | Chassis FlexRay | 14G |
| Flex E | Chassis FlexRay | 8E |
| HSVL | High-speed video link | 20F |
| LIN A3 | LCP LIN | 27C |
| N127 | Drivetrain control unit | 17H |
| N2/10 | Supplemental restraint system control unit | 2C |
| N3/10 | ME-SFI [ME] control unit | 26J |
| N3/9 | CDI control unit | 26F |
| N30/4 | Electronic Stability Program control unit | 6E |
| N51/5 | Adaptive damping system control unit | 10H |
| N72/4 | Left lower control panel | 29B |
| N72/4s1 | DYNAMIC SELECT switch | 31C |
| N73 | Electronic ignition switch control unit | 11C |
| N80 | Steering column module control unit | 17F |
| U1056 | Valid except code 446 (Touchpad only) | 23B |
| U74 | Valid for diesel engines | 25F |
| U75 | Valid for gasoline engines | 25J |
| Y51 | Left front axle damping valve unit | 4J |
| Y51y1 | Solenoid valve 1, front left | 6J |
| Y51y2 | Solenoid valve 2, front left | 6K |
| Y52 | Right front axle damping valve unit | 4K |
| Y52y1 | Solenoid valve 1, front right | 6J |
| Y52y2 | Solenoid valve 2, front right | 6K |
| Y53 | Left rear axle damping valve unit | 4K |
| Y53y1 | Solenoid valve 1, rear left | 6J |
| Y53y2 | Solenoid valve 2, rear left | 6L |
| Y54 | Right rear axle damping valve unit | 4K |
| Y54y1 | Solenoid valve 1, rear right | 6K |
| Y54y2 | Solenoid valve 2, rear right | 6L |
