Remove/Install Front Stabilizer Bar Link Rod - AR32.35-P-3328LWX
Model 205
with code M005 (Vehicles with 4MATIC/all-wheel drive)
Model 213
with code M005 (Vehicles with 4MATIC/all-wheel drive)
Model 238
with code M005 (Vehicles with 4MATIC/all-wheel drive)
Model 253
Shown on right side of vehicle on model 205 with code M005 (4MATIC)

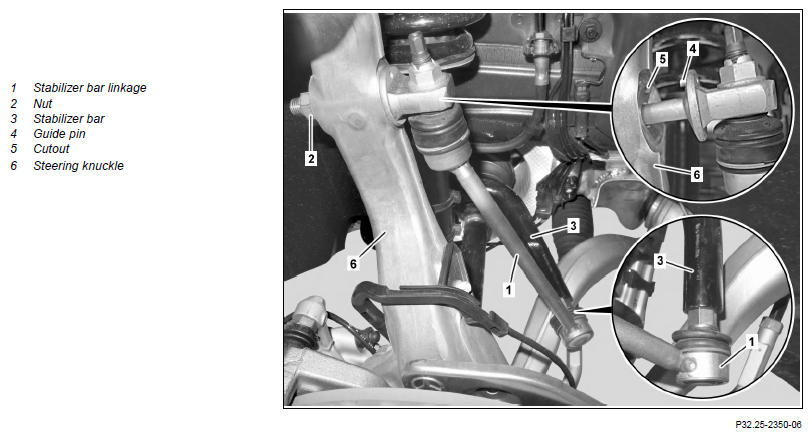

Fig 1: Front Stabilizer Bar Link Rod Components Location - Model 238 With Code M005 (Shown On Right Side On Model 205)
| Notice | Notes on handling, transport and storage of ceramic brake disks | AH42.10-P-9406-13A | |
| Notice | Notes on self-locking nuts and bolts | AH00.00-P-0001-01KOA | |
| Note on calculation of tightening torque when using insertion or socket tools with various effective lengths | AH00.00-P-0015-01CW | ||
| Notes on handling, transport and storage of composite brake disks | AH42.10-P-9406-12LF | ||
| Notes on repair work on suspension components | AH00.00-P-0100-01A | ||
| Remove/install | |||
| 1 | Remove front wheel | AR40.10-P-1102A | |
| 2 | Unscrew nut(2) | *BA32.20-P-1003-02T | |
Model 213 with code M005 (Vehicles with 4MATIC/all-wheel drive) Model 238 with code M005 (Vehicles with 4MATIC/all-wheel drive) Nut, torsion bar linkage to steering knuckle |
*BA32.20-P-1006-02R | ||
| 3 | Detach torsion bar linkage (1) from stabilizer bar (3) | *BA32.20-P-1002-02T | |
Model 213 with code M005 (Vehicles with 4MATIC/all-wheel drive) Model 238 with code M005 (Vehicles with 4MATIC/all-wheel drive) Torsion bar linkage to torsion bar |
*BA32.20-P-1005-02R | ||
| 4 | Pull torsion bar linkage (1) out of steering knuckle (6) | The guide pin (4) must engage in the cutout (5) of the steering knuckle (6). Otherwise the steering knuckle (6) will be damaged. |
|
| Check | |||
| 5 | Check ball heads and their boots of torsion bar linkage (1) for condition and damage | If a problem arises ↓ replace torsion bar linkage (1). |
|
| 6 | Install in the reverse order |
FRONT AXLE TORSION BAR
| Number | Designation | Model 253 | |
|---|---|---|---|
| BA32.20-P-1002-02T | Torsion bar linkage to torsion bar | Nm | 100 |
FRONT AXLE TORSION BAR
| Number | Designation | Model 253 | |
|---|---|---|---|
| BA32.20-P-1003-02T | Nut, torsion bar linkage to steering knuckle | Nm | 80 |
FRONT AXLE TORSION BAR
| Number | Designation | Model 205 with code M005 (Vehicles with 4MATIC/all-wheel drive) | Model 213 with code M005 (Vehicles with 4MATIC/all-wheel drive) | |
|---|---|---|---|---|
| BA32.20-P-1005-02R | Torsion bar linkage to torsion bar | Nm | 100 | 100 |
FRONT AXLE TORSION BAR
| Number | Designation | Model 238 with code M005 (Vehicles with 4MATIC/all-wheel drive) | |
|---|---|---|---|
| BA32.20-P-1005-02R | Torsion bar linkage to torsion bar | Nm | 100 |
FRONT AXLE TORSION BAR
| Number | Designation | Model 205 with code M005 (Vehicles with 4MATIC/all-wheel drive) | Model 213 with code M005 (Vehicles with 4MATIC/all-wheel drive) | |
|---|---|---|---|---|
| BA32.20-P-1006-02R | Nut, torsion bar linkage to steering knuckle | Nm | 80 | 80 |
FRONT AXLE TORSION BAR
| Number | Designation | Model 238 with code M005 (Vehicles with 4MATIC/all-wheel drive) | |
|---|---|---|---|
| BA32.20-P-1006-02R | Nut, torsion bar linkage to steering knuckle | Nm | 80 |
