Check Condition Of Rear Axle And Control Arms - AP35.20-P-3552A
Model 205, 213, 238, 253 (except 253.99), 257, 290

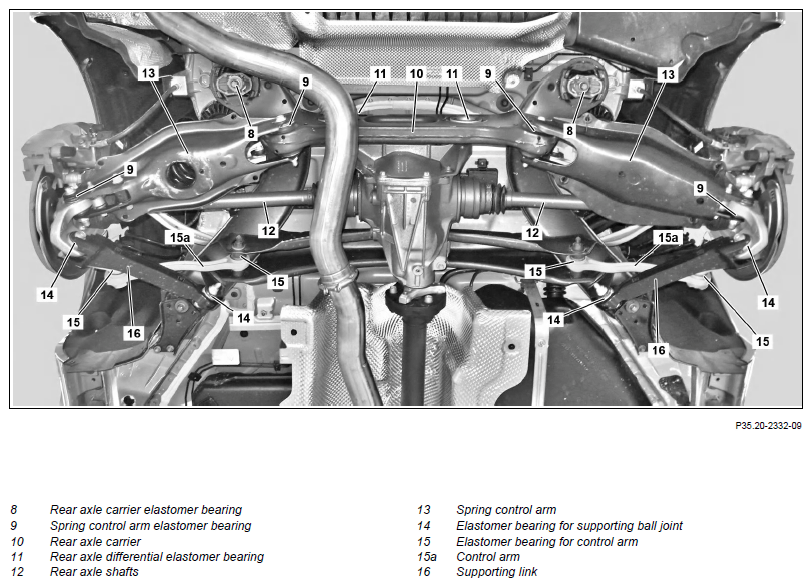

Shown on model 205

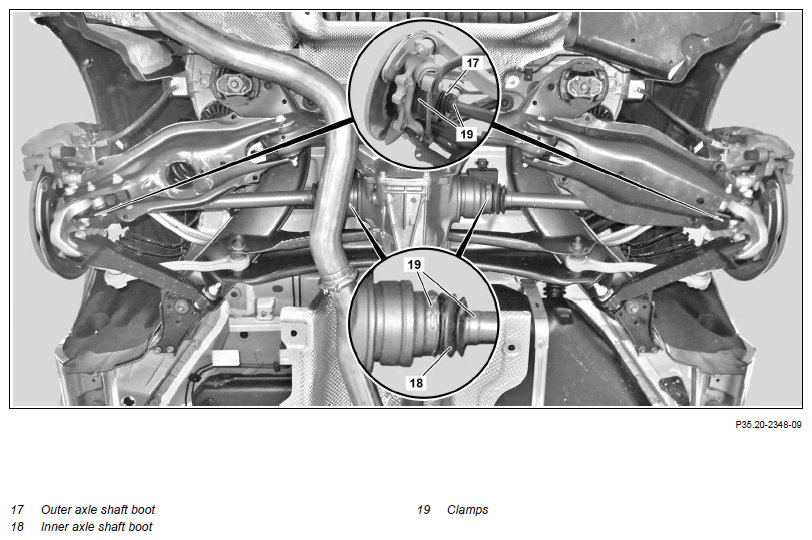

Shown on model 205
Shown on model 205
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of injury . Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of mechanical components when moving components. | AS00.00-Z-0009-01A | |
| Preparatory activity | |||
| 1 | Release parking brake. | ||
| 2 | Lift vehicle with lifting platform. | ||
| AR00.60-P-1006A | |||
| Check | |||
| 3 | Assess the wheel bearings by firmly tugging, pushing and turning at the wheels. | If problems occur, ↓ Rectify problems. |
|
| 4 | Check side strut rods (1) for cracks, deformation and corrosion. | If problems occur, ↓ Rectify problems. |
|
| 5 | Check side strut rod elastomer bearings (2) for cracks, deformation and wear as well as for play by firmly pulling and pushing. | If problems occur, ↓ Rectify problems. |
|
| 6 | Check upper strut rods (3) for cracks, deformation and corrosion. | If problems occur, ↓ Rectify problems. |
|
| 7 | Check upper strut rod elastomer bearings (4) for cracks, deformation and wear as well as for play by firmly pulling and pressing. | If problems occur, ↓ |
|
| Rectify problems. |
|||
| 8 | Check stabilizer bar (5) for cracks, deformation and corrosion. | If problems occur, ↓ Rectify problems. |
|
| 9 | Check stabilizer bar bushings (5a) for cracks, deformation and wear as well as for play by firmly pulling and pressing. | If problems occur, ↓ Rectify problems. |
|
| 10 | Check shift rails (6) for cracks, deformation and corrosion. | If problems occur, ↓ Rectify problems. |
|
| 11 | Check shift rail elastomer bearings (7) for cracks, deformation and wear as well as for play by firmly pulling and pressing. | If problems occur, ↓ Rectify problems. |
|
| 12 | Check spring links (13) for cracks, deformation and corrosion. | If problems occur, ↓ Rectify problems. |
|
| 13 | Check spring link elastomer bearings (9) for cracks, deformation and wear as well as for play by firmly pulling and pushing. | If problems occur, ↓ Rectify problems. |
|
| 14 | Check supporting links (16) for cracks, deformation and corrosion. | If problems occur, ↓ Rectify problems. |
|
| 15 | Check supporting link elastomer bearings (14) for cracks, deformation and wear as well as for play by firmly pulling and pressing. | If problems occur, ↓ Rectify problems. |
|
| 16 | Check control arms (15a) for cracks, deformation and corrosion. | If problems occur, ↓ Rectify problems. |
|
| 17 | Check control arm elastomer bearings (15) for cracks, deformation and wear as well as for play by firmly pulling and pressing. | If problems occur, ↓ Rectify problems. |
|
| 18 | Check rear axle carrier (10) for cracks, deformation and corrosion. | If problems occur, ↓ Rectify problems. |
|
| 19 | Check rear axle carrier elastomer bearings (8) for cracks, deformation and wear. | If problems occur, ↓ Rectify problems. |
|
| 20 | Check rear axle differential elastomer bearings (11) for cracks, deformation and wear. | If problems occur, ↓ Rectify problems. |
|
| 21 | Check condition of rear axle shafts (12). | If problems occur, ↓ Rectify problems. |
|
| 22 | Check outer drive shaft boots (17) for condition, leaktightness and correct seating. | If problems occur, ↓ Rectify problems. |
|
| 23 | Check inner drive shaft boots (18) for condition, leaktightness and correct seating. | If problems occur, ↓ Rectify problems. |
|
| 24 | Check condition and seating of clamps (19). | If problems occur, ↓ Rectify problems. |
|
| Finishing activity | |||
| 25 | Lower vehicle with vehicle lift. | ||
| AR00.60-P-1006A |
