Remove/Install Front Wheel Bearing - AR33.20-P-0302LW
Model 205
Model 213
Model 238
Model 253
Model 293
MODIFICATION NOTES
| 2.04.2019 | Method revised. | Operation step 1 to 4 |

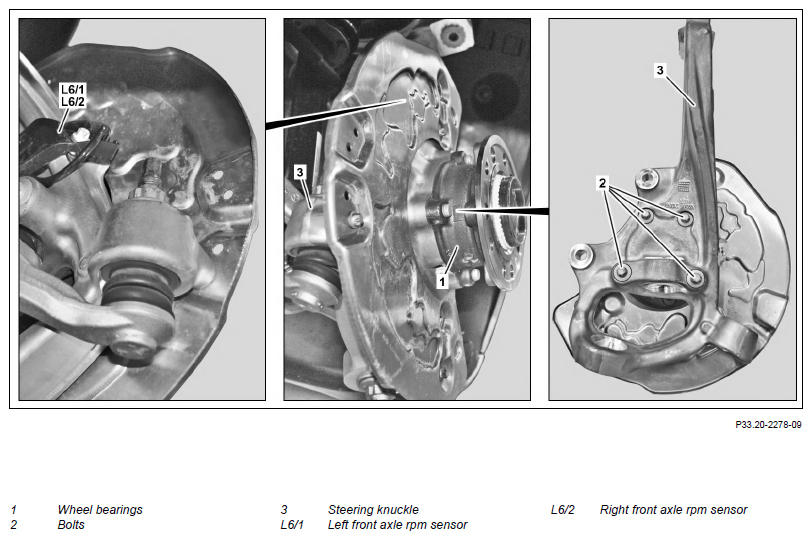

Shown on Model 205 With Code M005 (4MATIC)

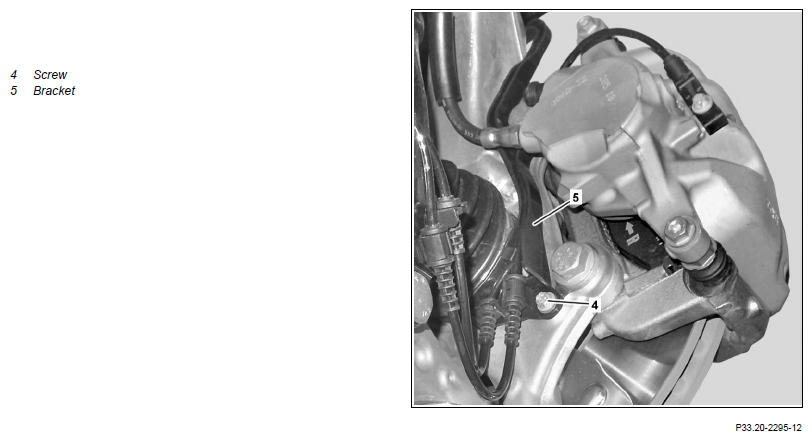

Shown on Model 205 With Code M005 (4MATIC)
Shown on Model 205 at left, Except Code M005 (4MATIC)
| Notice | Notes on threaded connections fastened using a tightening angle-based tightening process | AH00.00-P-0020-01A | |
| Notice | Notes on self-locking nuts and bolts | AH00.00-P-0001-01KOA | |
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove/install | |||
| 1 | Remove hub cap from corresponding front wheel. | Model 205, 213, 253 with code M005 (Vehicles with 4MATIC/all-wheel drive) Model 293 If the front wheel has to be removed for this purpose, ↓ remove corresponding front wheel, then mount again. |
AR40.10-P-1102A |
| 2 | Unfasten front axle shaft bolt (10) to wheel hub. | Model 205, 213, 253 with code M005 (Vehicles with 4MATIC/all-wheel drive) Model 293 |
|
| *BA33.30-P-1001-02H | |||
| 3 | Remove corresponding front wheel. | AR40.10-P-1102A | |
| 4 | Unscrew front axle shaft bolt (10) from wheel hub. | Model 205, 213, 253 with code M005 (Vehicles with 4MATIC/all-wheel drive) Model 293 Tighten front axle shaft bolt (10) lightly by hand. |
|
| 5 | Remove brake disk. | Model 293 | AR42.10-P-0230EQ |
| Model 205, 213, 253 | AR42.10-P-0220EWE | ||
| Model 238 | AR42.10-P-0220LWO | ||
| 6.1 | Detach left front axle rpm sensor (L6/1) or right front axle rpm sensor (L6/2) and place to one side with bracket and line. | Model 205, 213, 238 except code M005 (Vehicles with 4MATIC/all-wheel drive) | |
| Model 238 (except 238.361/461) except code M005 (Vehicles with 4MATIC/all- wheel drive) | AR42.30-P-0713LWO | ||
| Model 205, 213 (except 213.061/261) except code M005 (Vehicles with 4MATIC/all- wheel drive) | AR42.30-P-0712LW | ||
| 6.2 | Remove bolt (4) and push holder (5) to one side. | Model 205, 213, 238 with code M005 (Vehicles with 4MATIC/all-wheel drive) Model 253 Model 293 |
|
| 7 | Unscrew bolts (2) and remove wheel bearing (1) from steering knuckle (3). | *BA33.20-P-1007-01U | |
| Clean | |||
| 8 | Clean cutout for water drain in lower area of wheel bearing mounting. | ||
| 9 | Install in the reverse order. |
WHEEL CONTROL, HUB
| Number | Designation | Model 205 | Model 213 | ||
|---|---|---|---|---|---|
| BA33.20-P-1007-01U | Bolt, wheel bearing to steering knuckle | Stage 1 | Nm | 80 | 80 |
| Stage 2 | ∠° | 45 | 45 | ||
WHEEL CONTROL, HUB
| Number | Designation | Model 238 | Model 253 | ||
|---|---|---|---|---|---|
| BA33.20-P-1007-01U | Bolt, wheel bearing to steering knuckle | Stage 1 | Nm | 80 | 80 |
| Stage 2 | ∠° | 45 | 45 | ||
WHEEL CONTROL, HUB
| Number | Designation | Model 293 | ||
|---|---|---|---|---|
| BA33.20-P-1007-01U | Bolt, wheel bearing to steering knuckle | Stage 1 | Nm | 80 |
| Stage 2 | ∠° | 45 | ||
FRONT AXLE SHAFT
| Number | Designation | Model 205 | Model 213 | ||
|---|---|---|---|---|---|
| BA33.30-P-1001-02H | Screw/bolt, front axle shaft to wheel hub | Stage 1 | Nm | 160 | 160 |
| Stage 2 | loosen approx. 90° | loosen approx. 90° | |||
| Stage 3 | Nm | 220 | 220 | ||
| Stage 4 | ∠° | 45 | 45 | ||
FRONT AXLE SHAFT
| Number | Designation | Model 253 | Model 293 | ||
|---|---|---|---|---|---|
| BA33.30-P-1001-02H | Screw/bolt, front axle shaft to wheel hub | Stage 1 | Nm | 160 | 160 |
| Stage 2 | loosen approx. 90° | loosen approx. 90° | |||
| Stage 3 | Nm | 220 | 220 | ||
| Stage 4 | ∠° | 45 | 45 | ||
