Drain/Pour In Front Axle Gear Oil - AR33.25-P-0300-01LWX

Model 205, 213, 238, 253, 257, 290 with transmission 725.0

With Code M005 (Vehicles with 4MATIC/all-wheel drive)

With Front Axle Differential 160

Model 253 with transmission 724.2

With Front Axle Differential 160

Model 257 with transmission 725.1

With Code M005 (Vehicles with 4MATIC/all-wheel drive)

With Front Axle Differential 160

Risk of injury  to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil

Wear protective gloves, protective clothing and safety glasses. Do not pour transmission oil into beverage bottles.

AS00.40-Z-0001-01A

Number	Designation		Model 205	Model 213
BA33.30-P-1008-03G	Front axle transmission drain screw	Nm	20	20

Number	Designation		Model 238	Model 253
BA33.30-P-1008-03G	Front axle transmission drain screw	Nm	20	20

Number	Designation		Model 257	Model 290
BA33.30-P-1008-03G	Front axle transmission drain screw	Nm	20	20

Number	Designation			Model 205	Model 213
BA33.30-P-1014-03G	Front axle transmission filling screw	M24	Nm	25	25

Number	Designation			Model 238	Model 253
BA33.30-P-1014-03G	Front axle transmission filling screw	M24	Nm	25	25

Number	Designation			Model 257	Model 290
BA33.30-P-1014-03G	Front axle transmission filling screw	M24	Nm	25	25

Number	Designation			Model 205	Model 213
BF33.30-P-1001-03F	Hypoid gear oil	Filling capacity	Liter	0, 55	0, 55
		Universal hypoid gear oil		BB00.40-P-0235-07A	BB00.40-P-0235-07A
		Overview of axle gear oils		BB00.40-P-0231-01A	BB00.40-P-0231-01A
		Axle gear oils		BB00.40-P-0239-72A	BB00.40-P-0239-72A

Number	Designation			Model 238	Model 253
BF33.30-P-1001-03F	Hypoid gear oil	Filling capacity	Liter	0, 55	0, 55
		Universal hypoid gear oil		BB00.40-P-0235-07A	BB00.40-P-0235-07A
		Overview of axle gear oils		BB00.40-P-0231-01A	BB00.40-P-0231-01A
		Axle gear oils		BB00.40-P-0239-72A	BB00.40-P-0239-72A

Number	Designation			Model 257	Model 290
BF33.30-P-1001-03F	Hypoid gear oil	Filling capacity	Liter	0, 55	0, 55
		Universal hypoid gear oil		BB00.40-P-0235-07A	BB00.40-P-0235-07A
		Overview of axle gear oils		BB00.40-P-0231-01A	BB00.40-P-0231-01A
		Axle gear oils		BB00.40-P-0239-72A

Number	Designation	Order number
BR00.45-Z-1046-04A	Loctite 7063 (400 ml) cleaning spray	A 001 986 71 71 09
BR00.45-Z-1110-02A	Quick-acting adhesive Omnifit 100H (50 g)	A 002 989 23 71

Drain off

1. Remove filling screw (3).
2. Remove drain screw (2) and collect hypoid gear oil in a suitable container.
3. Remove sealing ring of drain screw (2).

   Pour in

4. Clean thread of drain screw (2) and filling screw (3) in housing of transfer case (1) free of grease using Loctite 7063 cleaning spray.
5. Attach sealing ring on drain screw (2).

   Replace seal.

6. Screw in drain screw (2) and tighten to specified torque .
7. Fill hypoid gear oil using hand pump .
8. Coat first pitch of thread of filling screw (3) with Omnifit 100H quick-acting adhesive.
9. Screw in filling screw (3) and tighten to specified torque .

Courtesy of MERCEDES-BENZ USA

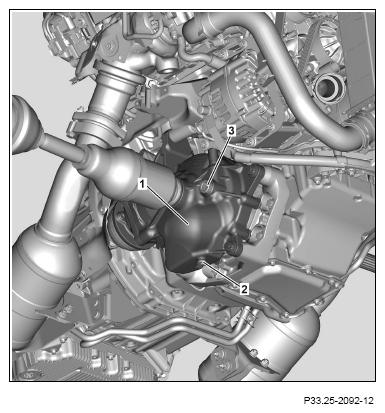

Example illustration
