Turning Rack-And-Pinion Steering To Center Position And Fitting Steering Coupling - AR46.20-P-0600-01LW

Model 205

Model 213

Model 238

Model 253

Model 293

1. Turn rack-and-pinion steering to center position.

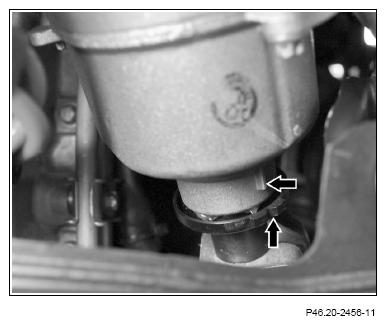

   Turn the rack-and-pinion steering until the marking on the dust cap of the lower steering shaft lines up with the marking on the control valve housing (arrows) and the front wheels are in the straight-ahead position.

2. Mount steering coupling.

   Shown on model 205 with CODE M005 (4MATIC)

   Courtesy of MERCEDES-BENZ USA
