Wiring Diagram For Seat Heater Control Unit - PE91.30-P-2104-97DEA
Model 238 as of model year 2021 with code 902 (Seat heater Plus for driver and front passenger) Control unit N25/5
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 48L |
| Code L | LEFT-HAND DRIVE | 12D |
| Code L | LEFT-HAND DRIVE | 19D |
| Code L | LEFT-HAND DRIVE | 31J |
| Code R | RIGHT-HAND DRIVE | 12D |
| Code R | RIGHT-HAND DRIVE | 19D |
| Code R | RIGHT-HAND DRIVE | 31G |
| K40/5 | Rear fuse and relay module | 5L |
| K40/5f453 | Fuse 453 | 4L |
| LIN B18 | Driver seat LIN | 10K |

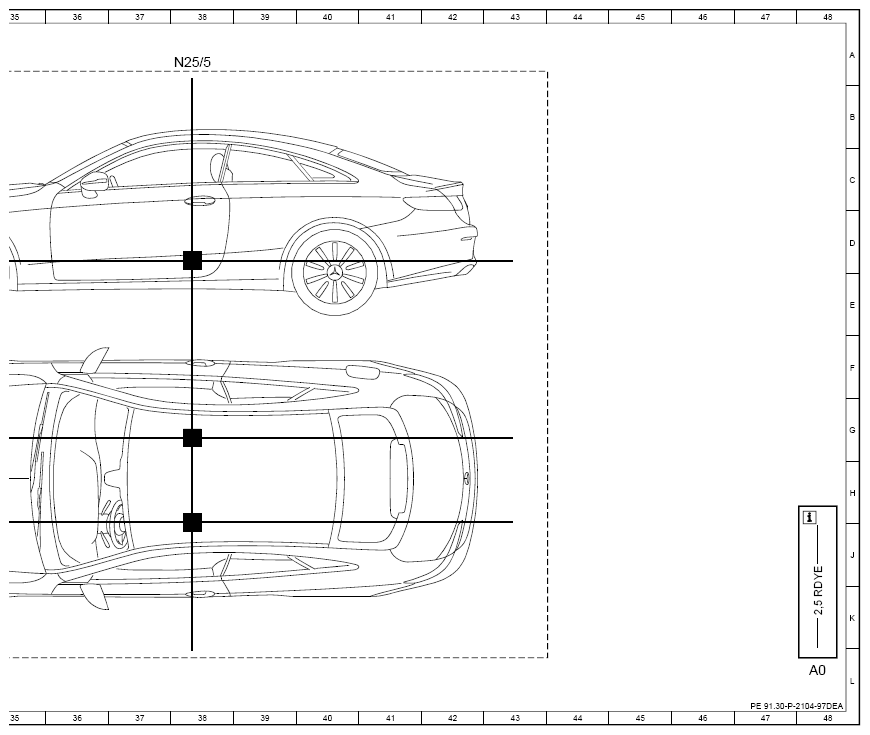

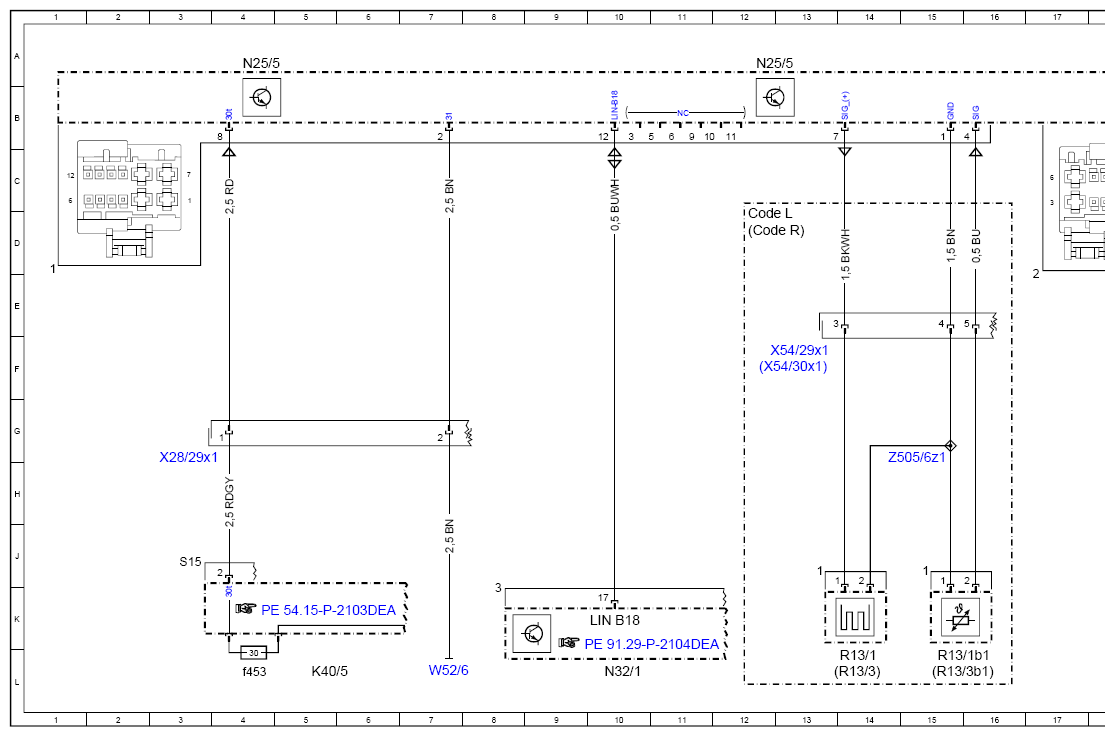

| N25/5 | Driver seat heater control unit | 4A |
| N25/5 | Driver seat heater control unit | 12A |
| N25/5 | Driver seat heater control unit | 21A |
| N25/5 | Driver seat heater control unit | 27A |
| N25/5 | Driver seat heater control unit | 38A |
| N32/1 | Driver seat control unit | 10L |
| R13/1 | Left front seat cushion heater pad | 14L |

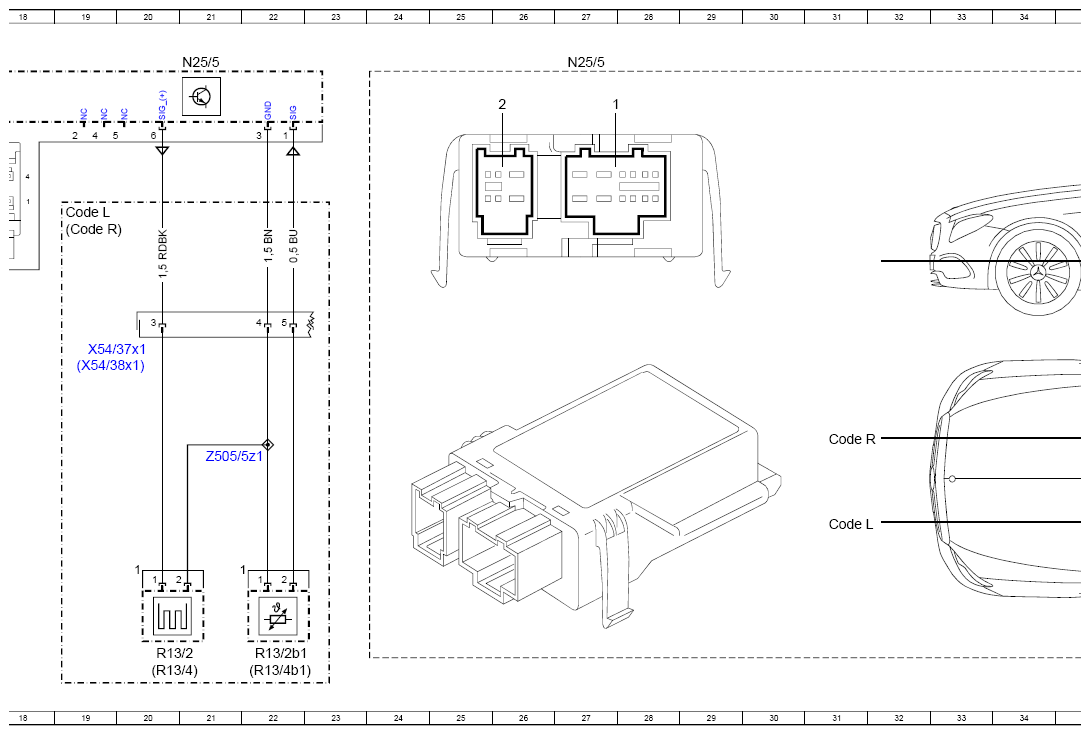

| R13/1b1 | Left front seat sitting surface heater pad temperature sensor | 15L |
| R13/2 | Left front seat backrest heater pad | 20L |
| R13/2b1 | Left front seat backrest heater pad temperature sensor | 22L |
| R13/3 | Right front seat cushion heater pad | 14L |
| R13/3b1 | Right front seat sitting surface heater pad temperature sensor | 15L |
| R13/4 | Right front seat backrest heater pad | 20L |
| R13/4b1 | Right front seat backrest heater pad temperature sensor | 22L |
| W52/6 | Right center longitudinal member ground point | 7L |
| X28/29x1 | Interior wiring harness/driver's seat electrical connector | 3H |
| X54/29x1 | Driver seat heater feed electrical connector | 13F |
| X54/30x1 | Front passenger seat heater feed electrical connector | 13F |
| X54/37x1 | Left front seat backrest heater pad electrical connector | 20F |
| X54/38x1 | Right front seat backrest heater pad electrical connector | 19F |
| Z505/5z1 | Ground connection connector sleeve | 21G |
| Z505/6z1 | Ground connection connector sleeve | 15G |
