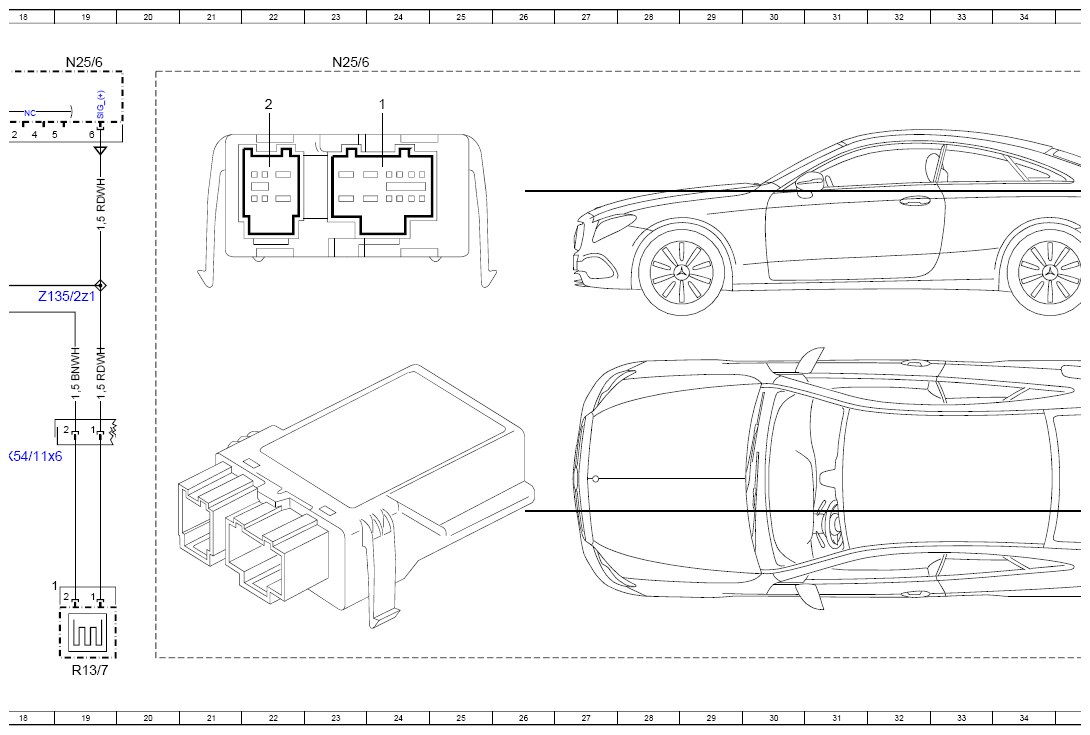

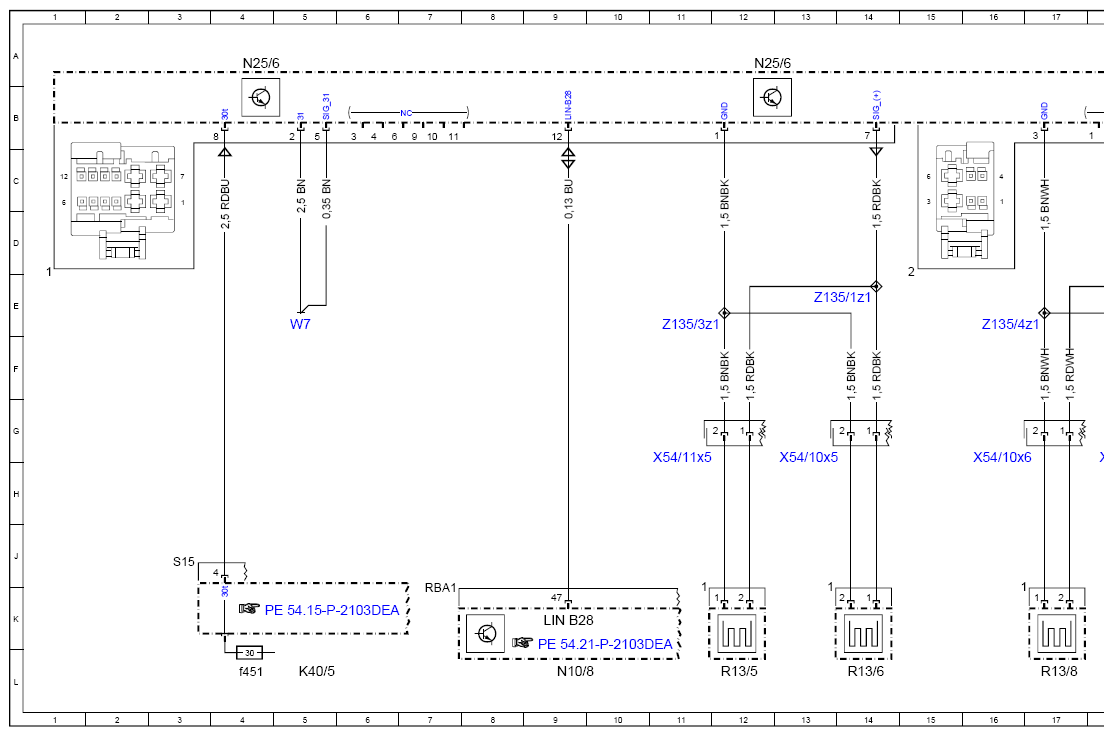

Wiring Diagram For Rear Heated Seats Control Unit - PE91.30-P-2101-97DEA
Model 238 as of model year 2021 with code 872 (Left and right rear seat heating)
Control unit N25/6
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 40L |
| K40/5 | Rear fuse and relay module | 5L |
| K40/5f451 | Fuse 451 | 4L |
| LIN B28 | Heater LIN | 9K |
| N10/8 | Rear SAM control unit | 9L |
| N25/6 | Rear seat heaters control unit | 4A |
| N25/6 | Rear seat heaters control unit | 12A |
| N25/6 | Rear seat heaters control unit | 19A |
| N25/6 | Rear seat heaters control unit | 23A |
| N25/6 | Rear seat heaters control unit | 35A |
| R13/5 | Left rear seat sitting surface heated cushion | 12L |
| R13/6 | Left rear backrest heated cushion | 14L |
| R13/7 | Right rear seat sitting surface heated cushion | 19L |
| R13/8 | Right rear backrest heater pad | 17L |
| W7 | Right wheel house trunk ground point | 5E |
| X54/10x5 | Right rear backrest heater pad electrical connector | 13H |
| X54/10x6 | Left rear backrest heater pad electrical connector | 16H |
| X54/11x5 | Right rear seat sitting surface heater pad electrical connector | 11H |
| X54/11x6 | Left rear seat sitting surface heater pad electrical connector | 18H |
| Z135/1z1 | Left rear reclining seat heater pad circuit 30 connector sleeve | 14E |
| Z135/2z1 | Reclining rear seat heater pad terminal 30 end sleeve | 19E |
| Z135/3z1 | Left rear reclining seat heater pad circuit 31 connector sleeve | 11E |
| Z135/4z1 | Reclining rear seat heater pad terminal 31 end sleeve | 16E |
