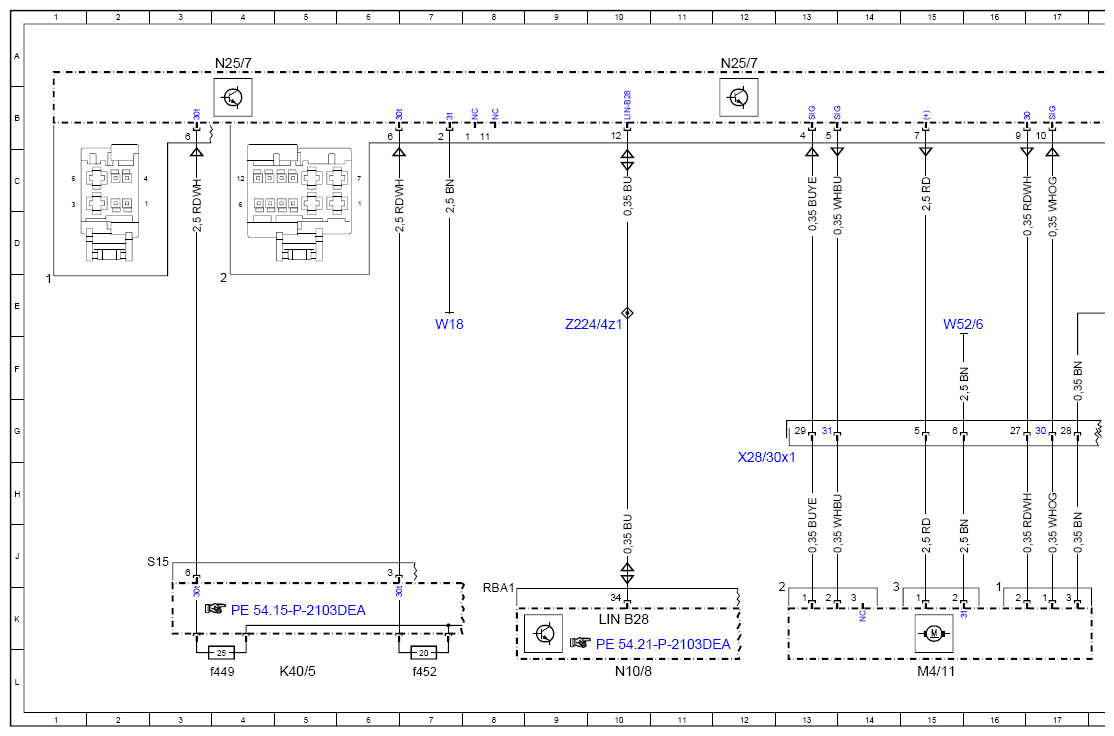

Wiring Diagram For AIRSCARF Control Unit - PE91.30-P-2103-97DEA
Model 238.4 as of model year 2021 with code 403 (Heating in head area) Control unit N25/7
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 48L |
| K40/5 | Rear fuse and relay module | 5L |
| K40/5f449 | Fuse 449 | 4L |
| K40/5f452 | Fuse 452 | 7L |
| LIN B28 | Heater LIN | 10K |

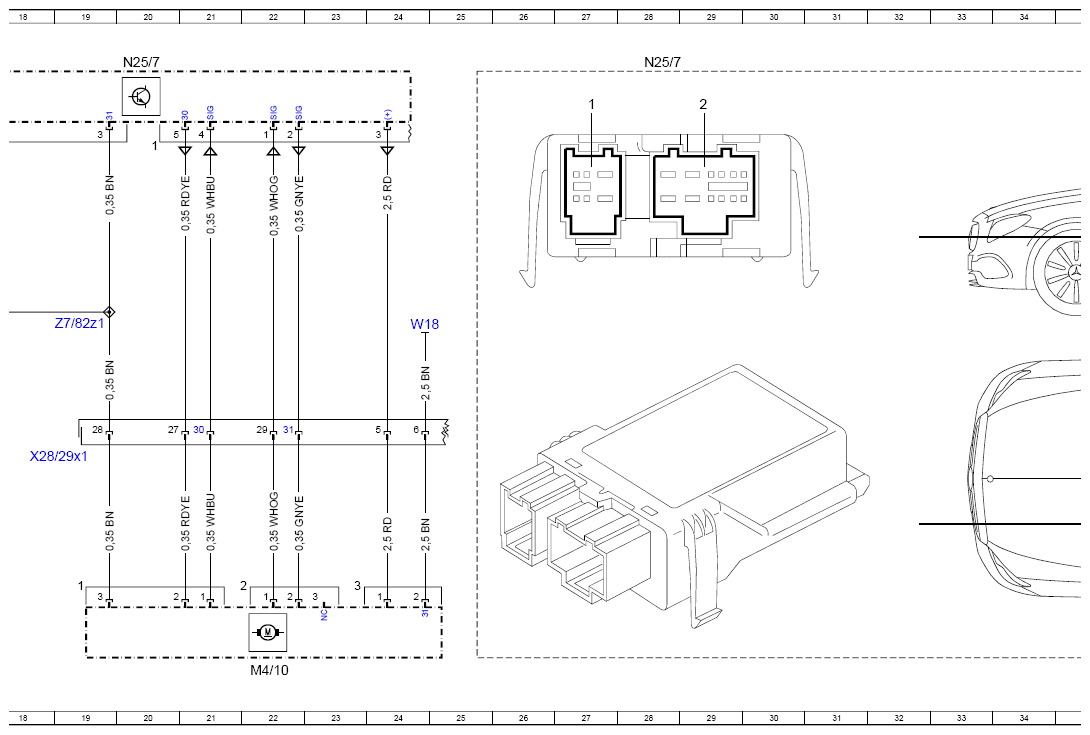

| M4/10 | Left AIRSCARF fan motor | 22L |
| M4/11 | Right AIRSCARF fan motor | 15L |
| N10/8 | Rear SAM control unit | 10L |

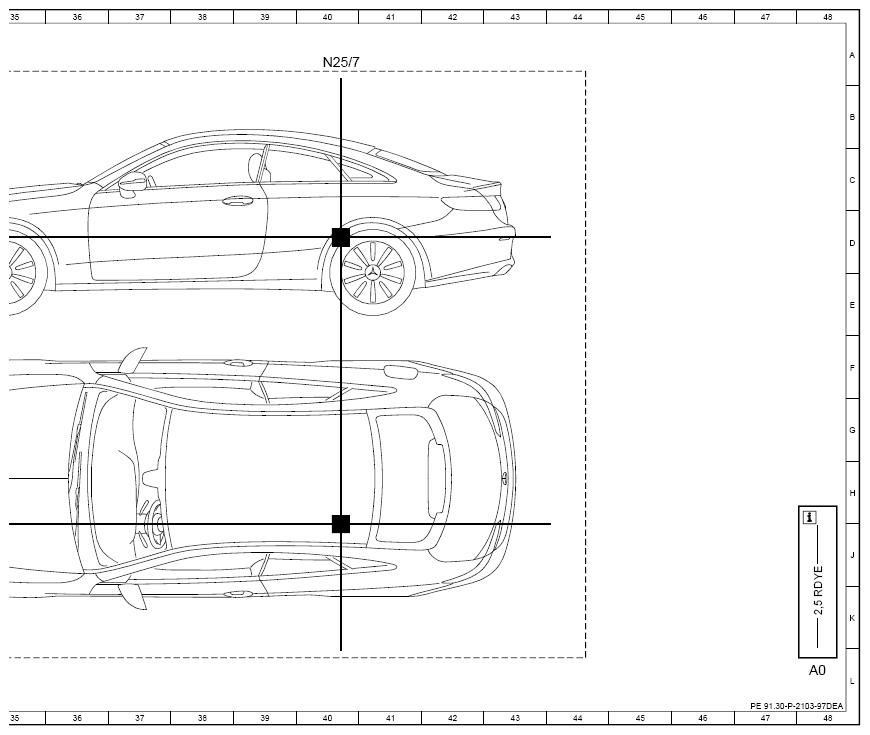

| N25/7 | AIRSCARF control unit | 4A |
| N25/7 | AIRSCARF control unit | 12A |
| N25/7 | AIRSCARF control unit | 20A |
| N25/7 | AIRSCARF control unit | 40A |
| N25/7 | AIRSCARF control unit | 28A |
| W18 | Left front seat crossmember ground point | 7E |
| W18 | Left front seat crossmember ground point | 24E |
| W52/6 | Right center longitudinal member ground point | 15E |
| X28/29x1 | Interior wiring harness/driver's seat electrical connector | 19H |
| X28/30x1 | Interior wiring harness/front passenger seat electrical connector | 12H |
| Z224/4z1 | Connector sleeve, heater LIN | 10E |
| Z7/82z1 | Circuit 31 connector sleeve | 19E |
