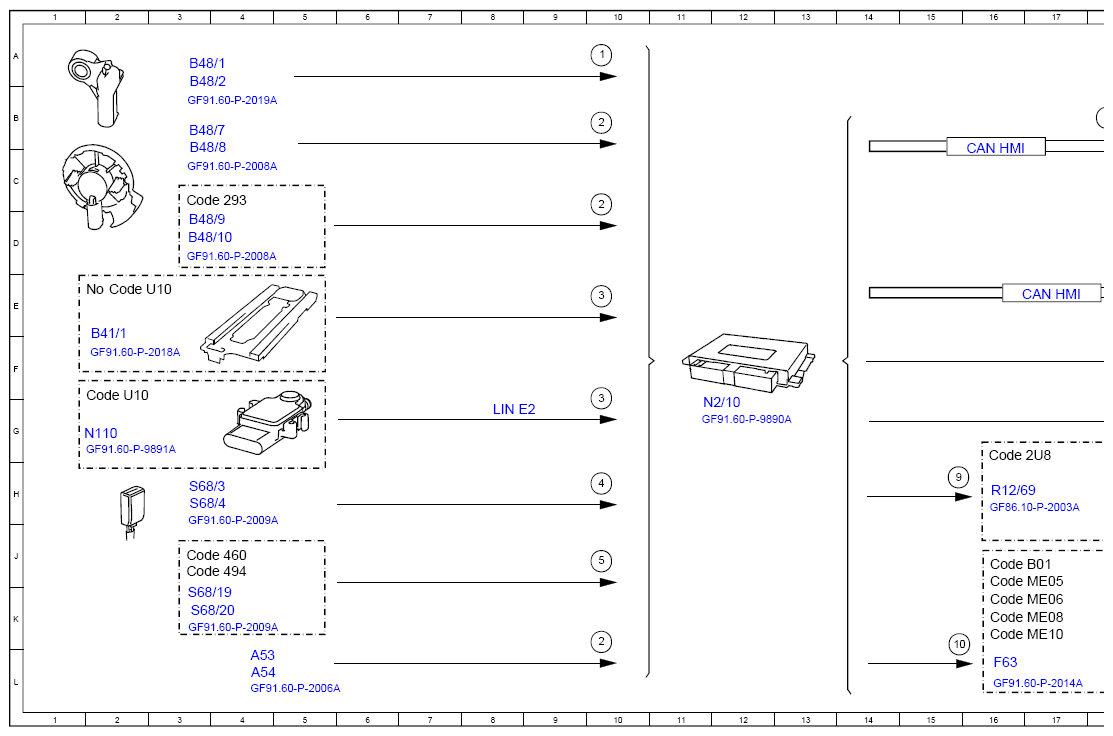

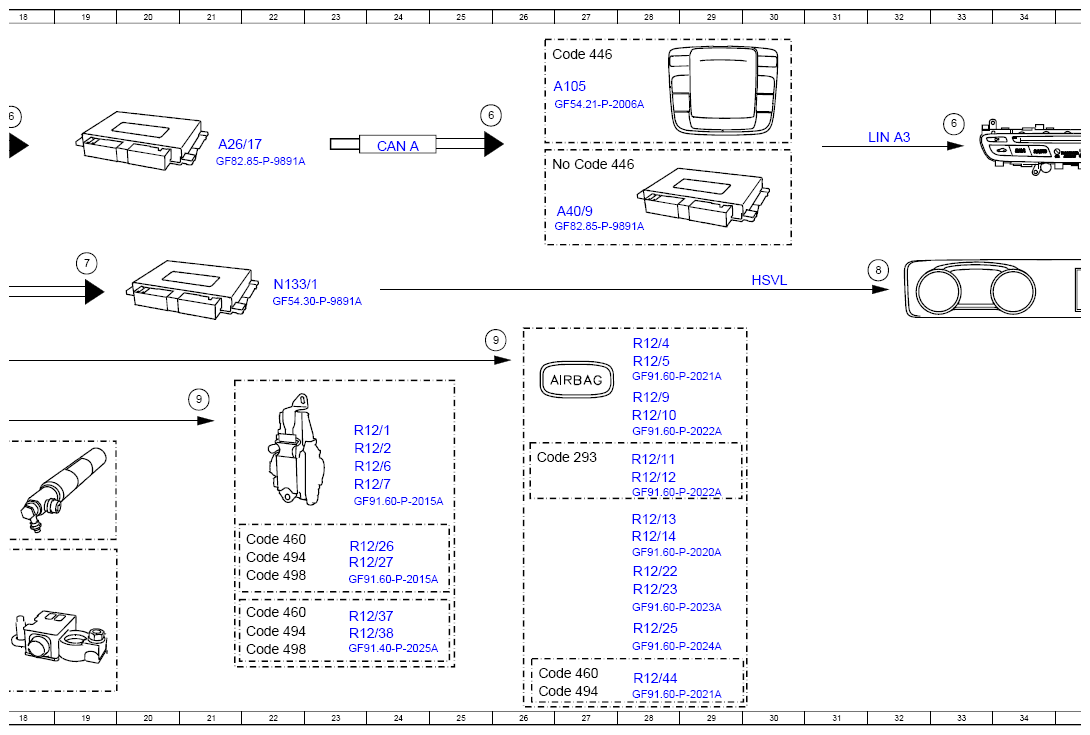

Function Schematic, Trigger Supplemental Restraint System - PE91.60-P-2501-97D
Model 213, 238, 257, 290 as of model year 2021
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Frontal acceleration sensor, signal | 10A |
| 10 | Pyroprotection, control | 15K |
| 2 | Impact detection signal | 10B |
| 2 | Impact detection signal | 10C |
| 2 | Impact detection signal | 10K |
| 3 | Passenger seat occupancy, status | 10G |
| 3 | Passenger seat occupancy, status | 10E |
| 4 | Belt buckle switch, status | 10H |
| 5 | Hall sensor seat position, signal | 10Y |
| 6 | Front passenger airbag warning light, request | 18B |
| 6 | Front passenger airbag warning light, request | 25B |
| 6 | Front passenger airbag warning light, request | 33B |
| 7 | Instrument cluster message, request | 19D |
| 8 | image data, signal | 32D |
| 9 | Squib pill, control | 21F |
| 9 | Squib pill, control | 26F |
| 9 | Squib pill, control | 16H |
| A105 | Touchpad | 27B |
| A26/17 | head unit | 21C |
| A40/16 | Display group head unit/instrument cluster | 37E |
| A40/9 | Audio/COMAND control unit | 27D |
| A53 | Sensor side bag left | 4L |
| A54 | Sidebag sensor right | 4L |
| B41/1 | Seat occupancy detection front passenger seat | 2F |
| B48/1 | Left frontal acceleration sensor | 3A |
| B48/10 | Right rear door pressure sensor | 3D |
| B48/2 | Right frontal acceleration sensor | 3A |
| B48/7 | Pressure sensor front door left | 3B |
| B48/8 | Pressure sensor front door right | 3C |
| B48/9 | Rear door pressure sensor left | 3D |
| CAN A | Telematic CAN | 24C |
| CAN HMI | User Interface CAN | 16C |
| CAN HMI | User Interface CAN | 17E |
| Code 293 | Sidebags in the rear left and right | 26H |
| Code 293 | Sidebags in the rear left and right | 3C |
| Code 2U8 | Refrigerant alternative | 16G |
| Code 446 | Touchpad only | 26A |
| Code 446 | Touchpad only | 27C |
| Code 460 | Canada version | 22J |
| Code 460 | Canada version | 26L |
| Code 460 | Canada version | 22K |
| Code 460 | Canada version | 3J |
| Code 494 | USA version | 22J |
| Code 494 | USA version | 26L |
| Code 494 | USA version | 22K |
| Code 494 | USA version | 3J |
| Code 498 | Japan version | 22J |
| Code 498 | Japan version | 22L |
| Code B01 | 48V technology | 16J |
| Code ME05 | HYBRID DRIVE 80KW VARIANT (INCLUDED PLUGIN) | 16J |
| Code ME06 | Hybrid drive 50 KW VARIANT (INCLUDED PLUGIN) | 16K |
| Code ME08 | Hybrid drive 75-84 KW VARIANT (INCLUDED PLUGIN) | 16K |
| Code ME10 | Hybrid vehicle | 16K |
| Code U10 | Passenger seat with weight detection | 2G |
| Code U10 | Passenger seat with weight detection | 2E |
| F63 | Pyro Fuse | 16L |
| HSVL | High Speed Video Link | 30E |
| LIN A3 | UBF-LIN | 32B |
| LIN E2 | Seat Occupancy LIN | 8G |
| N110 | Weight Sensing System (WSS) control unit | 2G |
| N133/1 | Instrument cluster control unit | 22E |
| N2/10 | Supplemental Restraint System control unit | 12G |
| N72/1 | Control unit upper panel | 37B |
| R12/1 | Squib belt tensioner driver | 23G |
| R12/10 | Squirrel Pill Sidebag Passenger | 28G |
| R12/11 | sidebag squib in the rear left | 28H |
| R12/12 | sidebag squib in the rear on the right | 28H |
| R12/13 | Squib 1 driver airbag | 28J |
| R12/14 | Squib 2 driver airbag | 28J |
| R12/2 | Squib for passenger seat belt tensioner | 23G |
| R12/22 | Squirt pill windowbag left | 28J |
| R12/23 | Squib window bag right | 28K |
| R12/25 | Kneebag driver's squib | 28K |
| R12/26 | Passenger belt force limiter | 23J |
| R12/27 | Driver belt force limiter | 23J |
| R12/37 | Squib pill, driver's seat belt end fitting tensioner | 23K |
| R12/38 | Squib pill for passenger seat belt end fitting tensioner | 23K |
| R12/4 | Squib 1 passenger airbag | 28F |
| R12/44 | Squib vent valve passenger airbag | 28L |
| R12/5 | Squib 2 passenger airbag | 28F |
| R12/6 | Squib for seat belt tensioner, rear left | 23H |
| R12/69 | Refrigerant inerting squib | 16H |
| R12/7 | Squib for seat belt tensioner, rear right | 23H |
| R12/9 | Squib sidebag driver | 28G |
| S68/19 | Driver seat position detection switch | 3K |
| S68/20 | Passenger seat position detection switch | 3K |
| S68/3 | Driver seat belt buckle | 3H |
| S68/4 | Passenger seat belt buckle switch | 3H |
