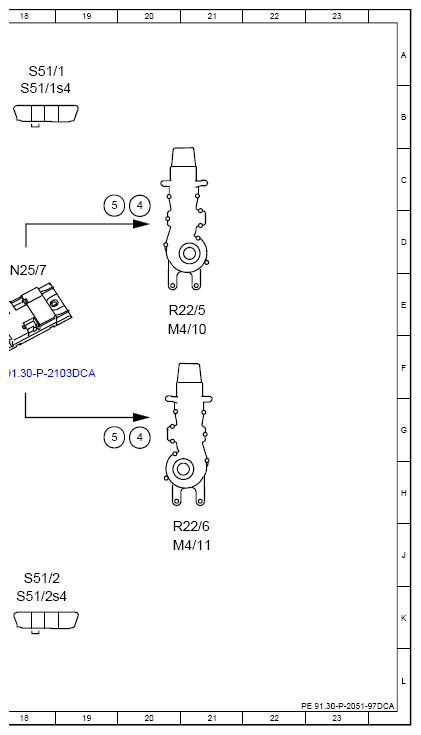

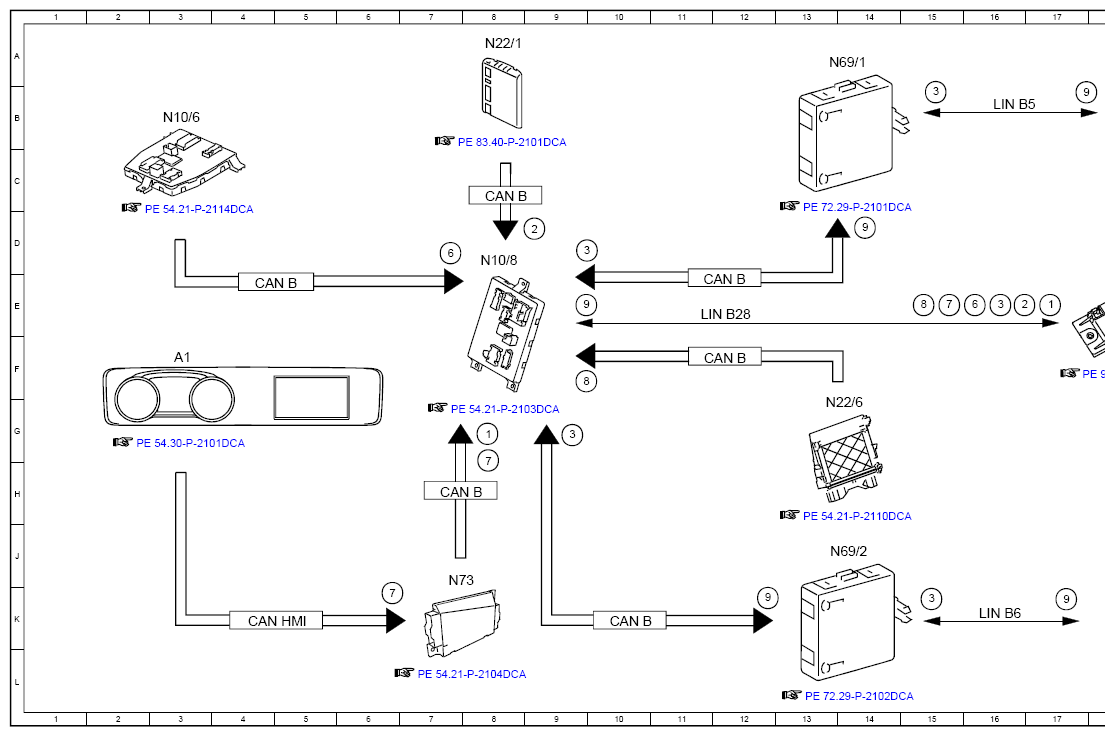

Electrical Function Schematic For AIRSCARF - PE91.30-P-2051-97DCA
Model 238 up to model year 2021 with code 403 (Heating in head area)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 8G |
| 1 | Circuit 15, status | 17E |
| 2 | Interior temperature, signal | 9D |
| 2 | Interior temperature, signal | 16E |
| 3 | AIRSCARF switch, status | 15B |
| 3 | AIRSCARF switch, status | 16E |
| 3 | AIRSCARF switch, status | 9D |
| 3 | AIRSCARF switch, status | 9G |
| 3 | AIRSCARF switch, status | 15K |
| 4 | AIRSCARF fan motor, actuation | 20C |
| 4 | AIRSCARF fan motor, actuation | 20G |
| 5 | AIRSCARF heating element, actuation | 19C |
| 5 | AIRSCARF heating element, actuation | 19G |
| 6 | Outside temperature, signal | 7D |
| 6 | Outside temperature, signal | 16E |
| 7 | Vehicle speed, signal | 8H |
| 7 | Vehicle speed, signal | 6K |
| 7 | Vehicle speed, signal | 15E |
| 8 | Soft top position, status | 15E |
| 8 | Soft top position, status | 9F |
| 9 | AIRSCARF, status | 10E |
| 9 | AIRSCARF, status | 13K |
| 9 | AIRSCARF, status | 17K |
| 9 | AIRSCARF, status | 14D |
| 9 | AIRSCARF, status | 17A |
| A1 | Instrument cluster | 3F |
| CAN B | Interior CAN | 10K |
| CAN B | Interior CAN | 7H |
| CAN B | Interior CAN | 12E |
| CAN B | Interior CAN | 4E |
| CAN B | Interior CAN | 8C |
| CAN B | Interior CAN | 12F |
| CAN HMI | User interface CAN | 4K |
| LIN B28 | Heater LIN | 12E |
| LIN B5 | Left front door LIN | 16B |
| LIN B6 | Right front door LIN | 16K |
| M4/10 | Left AIRSCARF fan motor | 20E |
| M4/11 | Right AIRSCARF fan motor | 21J |
| N10/6 | Front SAM control unit | 3B |
| N10/8 | Rear SAM control unit | 8D |
| N22/1 | Climate control control unit | 8A |
| N22/6 | Rear control unit | 13G |
| N25/7 | AIRSCARF control unit | 18E |
| N69/1 | Left front door control unit | 14A |
| N69/2 | Right front door control unit | 14J |
| N73 | Electronic ignition switch control unit | 7J |
| R22/5 | Left AIRSCARF heating element | 20E |
| R22/6 | Right AIRSCARF heating element | 21J |
| S51/1 | Left front seat climate control switch group | 18A |
| S51/1s4 | Left front AIRSCARF switch | 18B |
| S51/2 | Right front seat climate control switch group | 18J |
| S51/2s4 | Right front AIRSCARF switch | 18K |
